Control Units

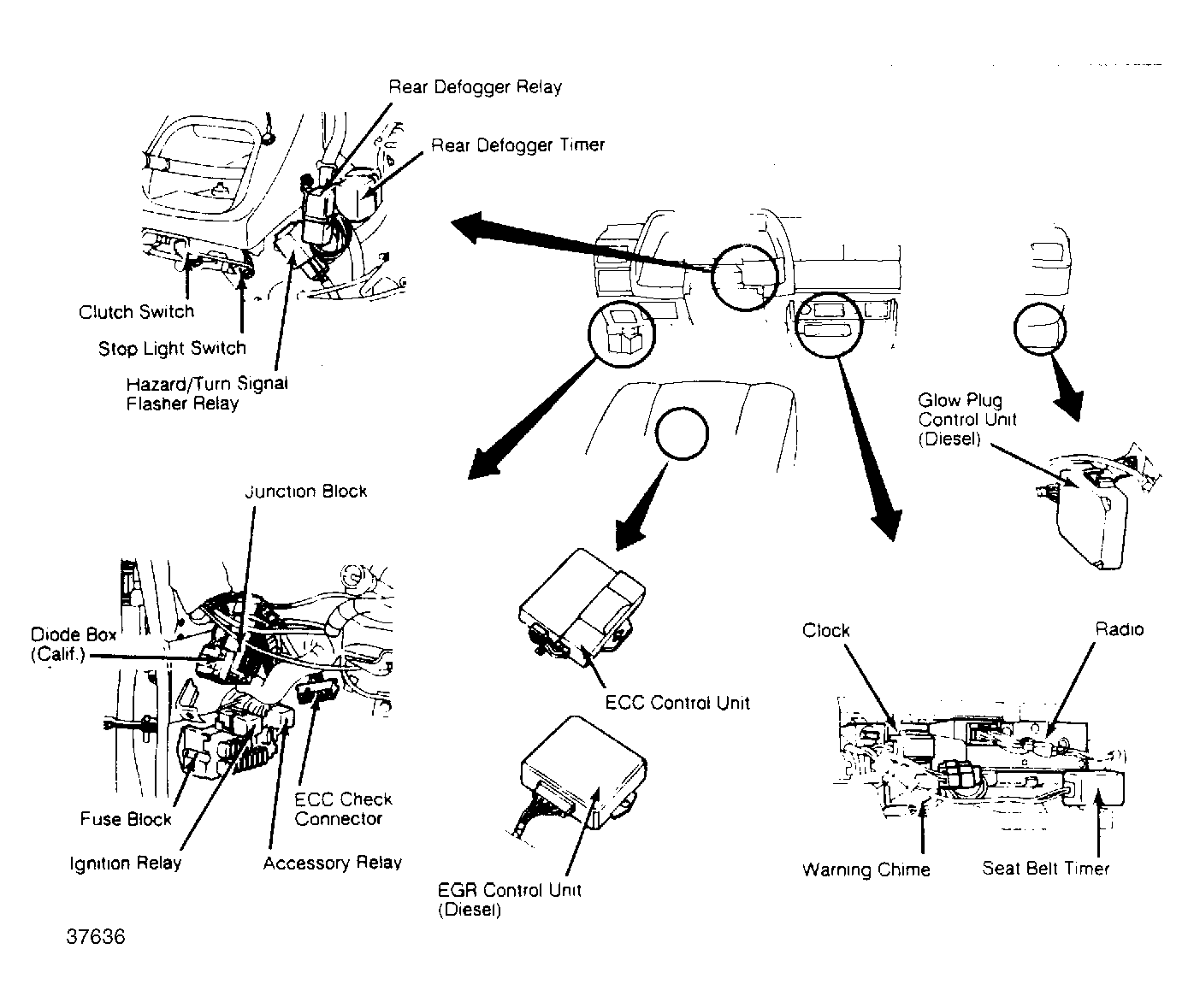

CONTROL UNITS LOCATION
Component
Location
ECC Control Unit
Under driver's seat. See
Figure
.
EGR Control Unit (Diesel)
Under driver's seat. See
Figure
.
Glow Plug Control Unit (Diesel)
On right kick panel. See
Figure
.
