Fast Idle Control Device (FICD)

WARNING: This page is about a different car, the 1989 Nissan Pulsar NX. However, it is still accessible from the selected car via links, so may be relevant.

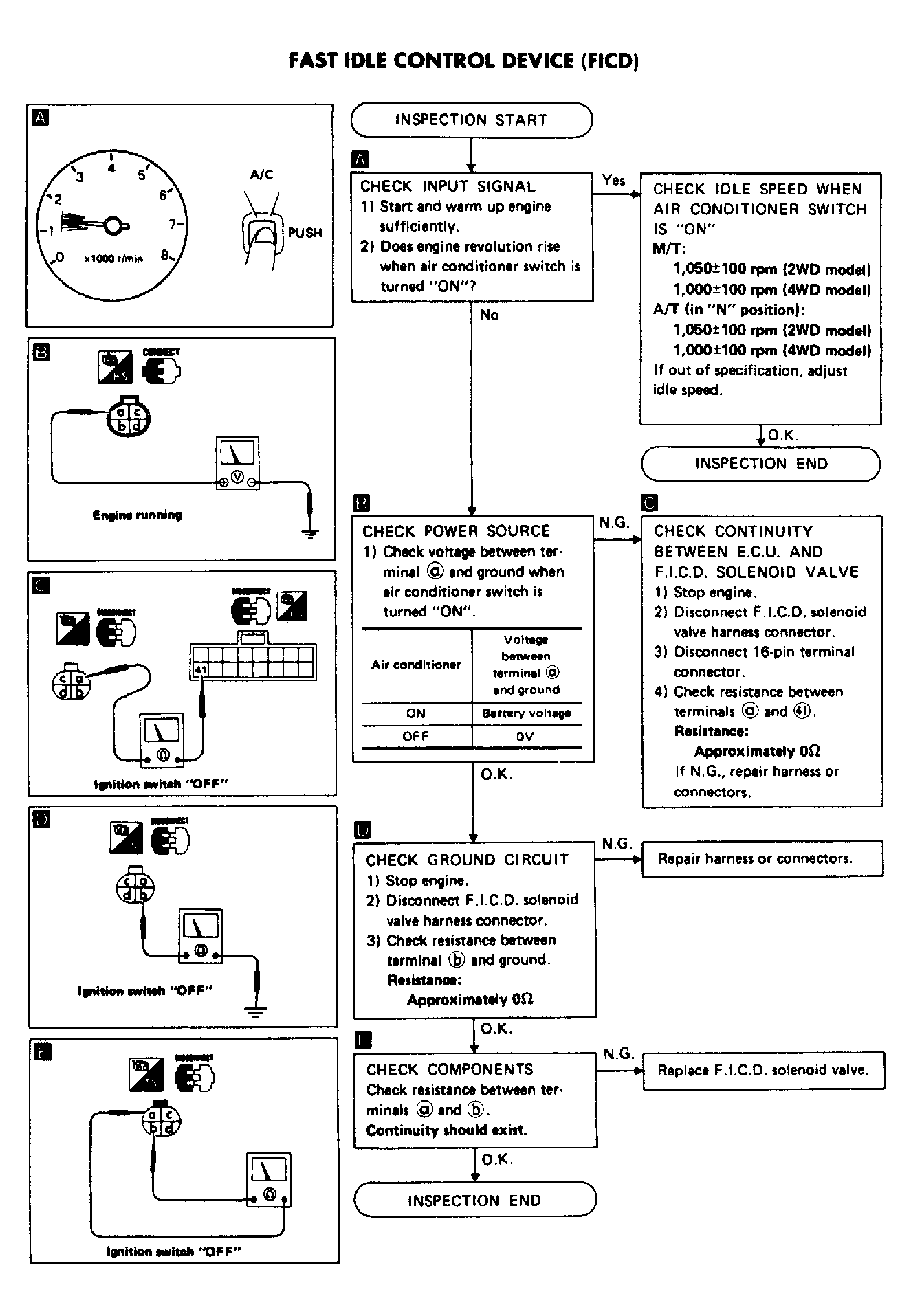

See Figure .
