ABS Warning Light Check

  1. Check ABS warning light for proper operation when ignition switch is turned on. If light does not illuminate, check fuse No. 8 (1997 models) or fuse No. 12 (1998 models), bulb and warning light circuit.
  2. If warning light illuminates, start engine. If warning light goes out, warning light is functioning properly. If warning light stays on, go to SELF-DIAGNOSTICS  .
Fig 1: Identifying ABS Control Unit Harness Connector Terminals
G98H10949Courtesy of NISSAN MOTOR CO., U.S.A.

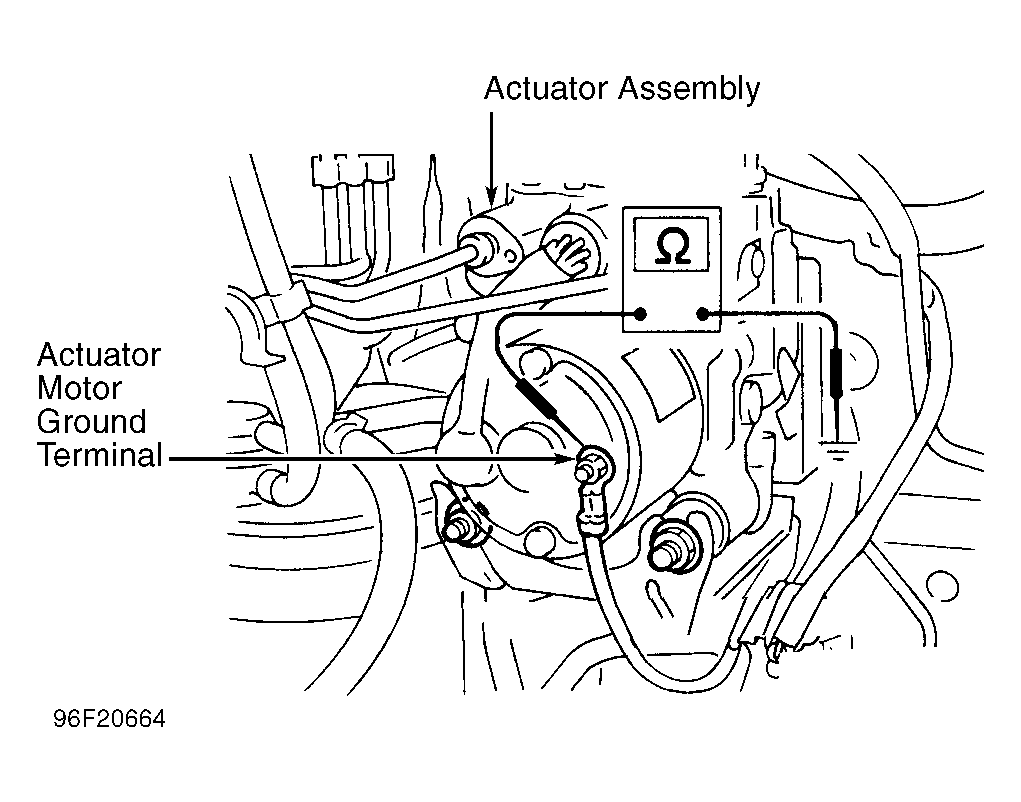

Fig 2: Checking Actuator Ground Circuit
G96F20664Courtesy of NISSAN MOTOR CO., U.S.A.
