Engine Control Module
ECM Harness Connector Terminal Layout:

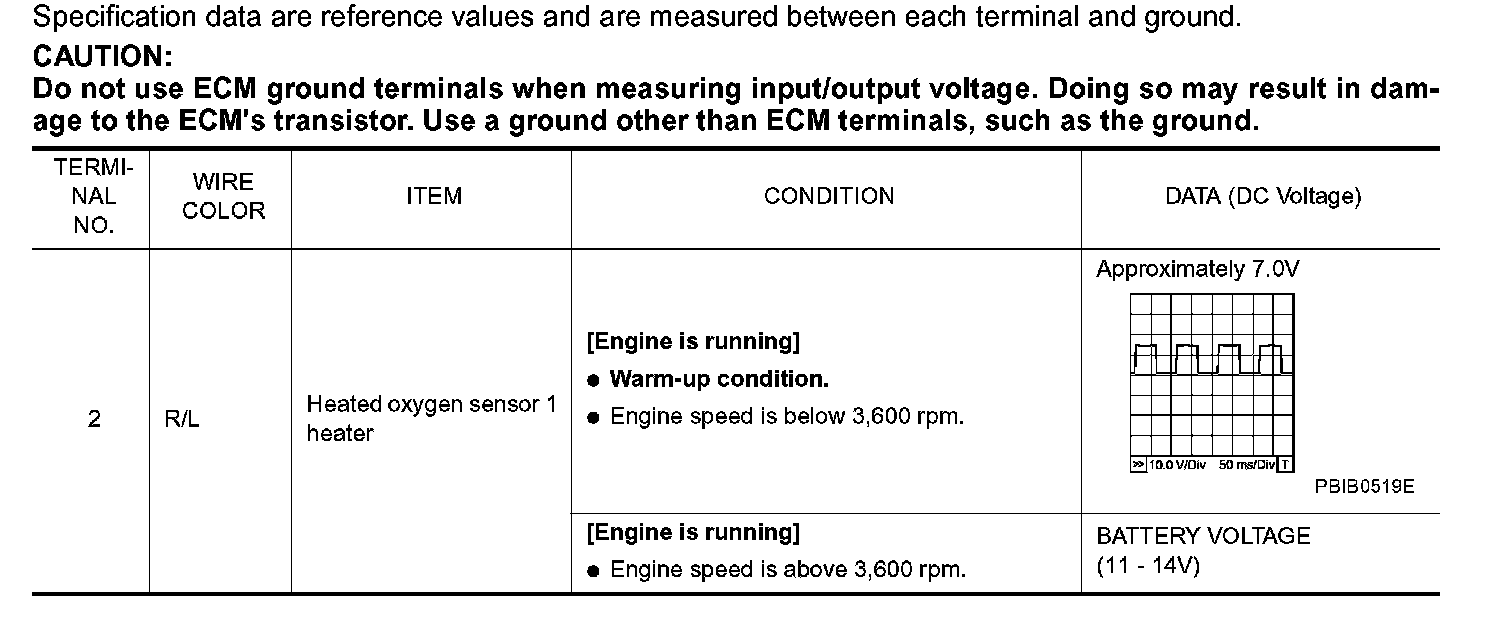

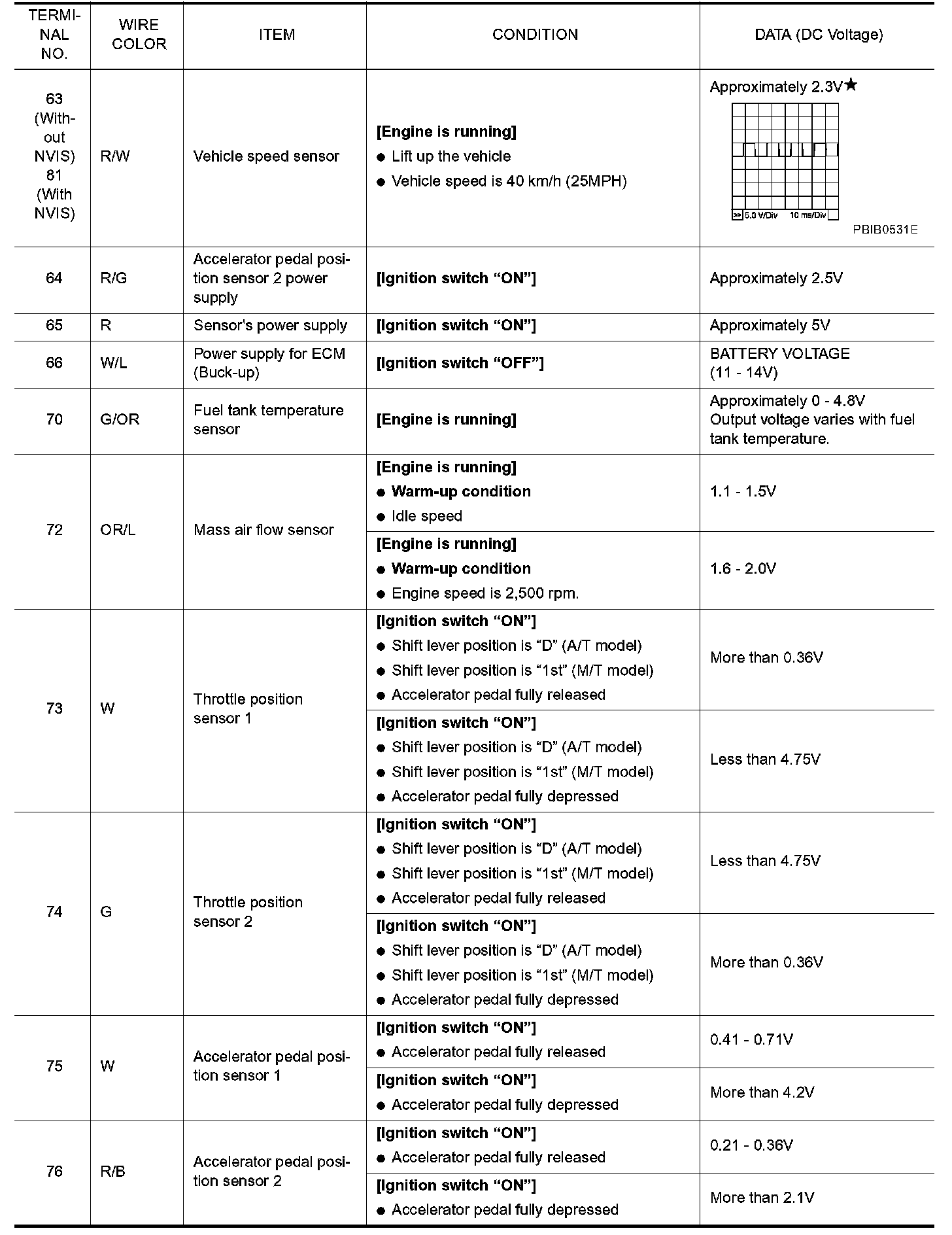

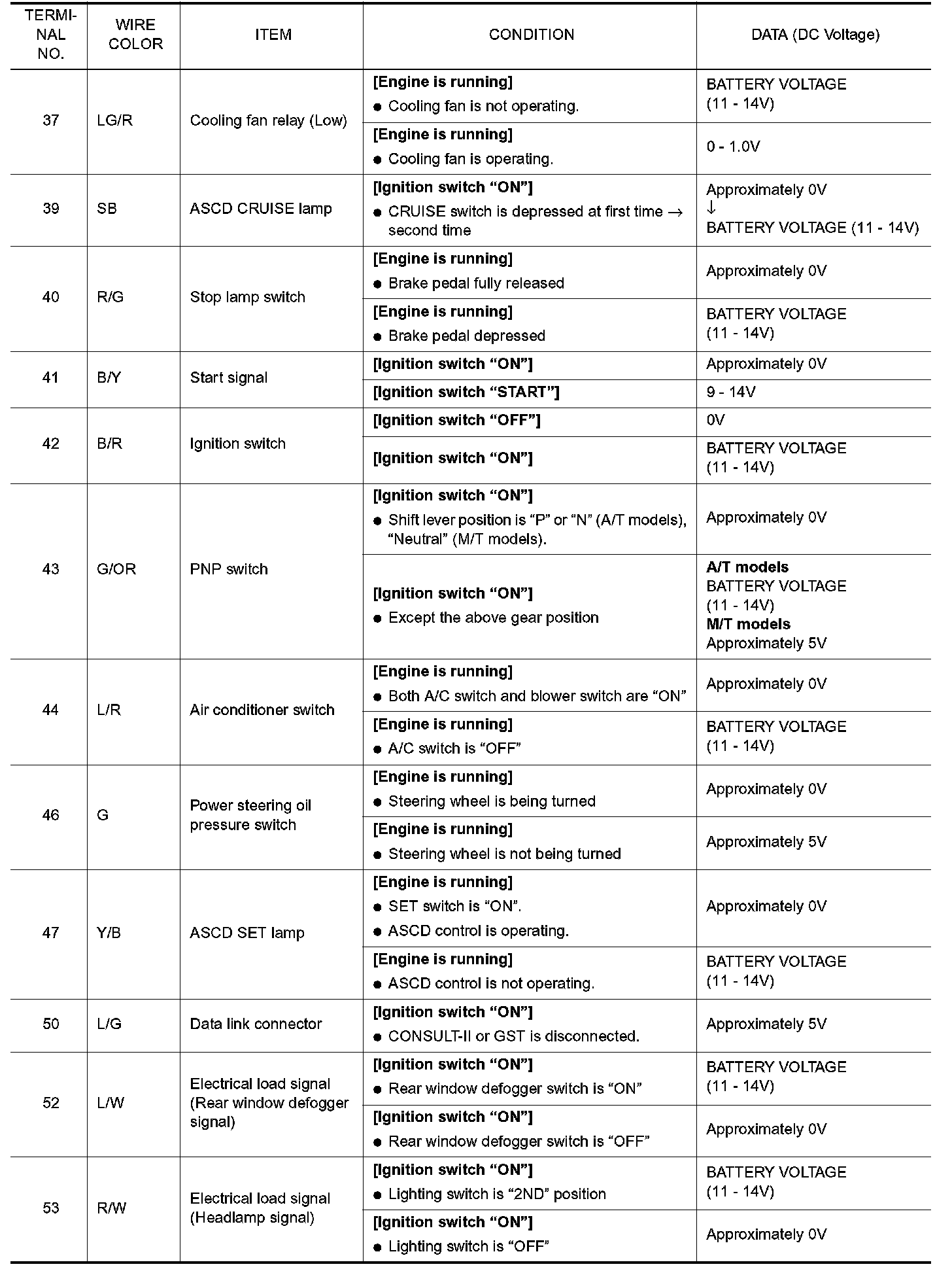

ECM Inspection Table Part 1:

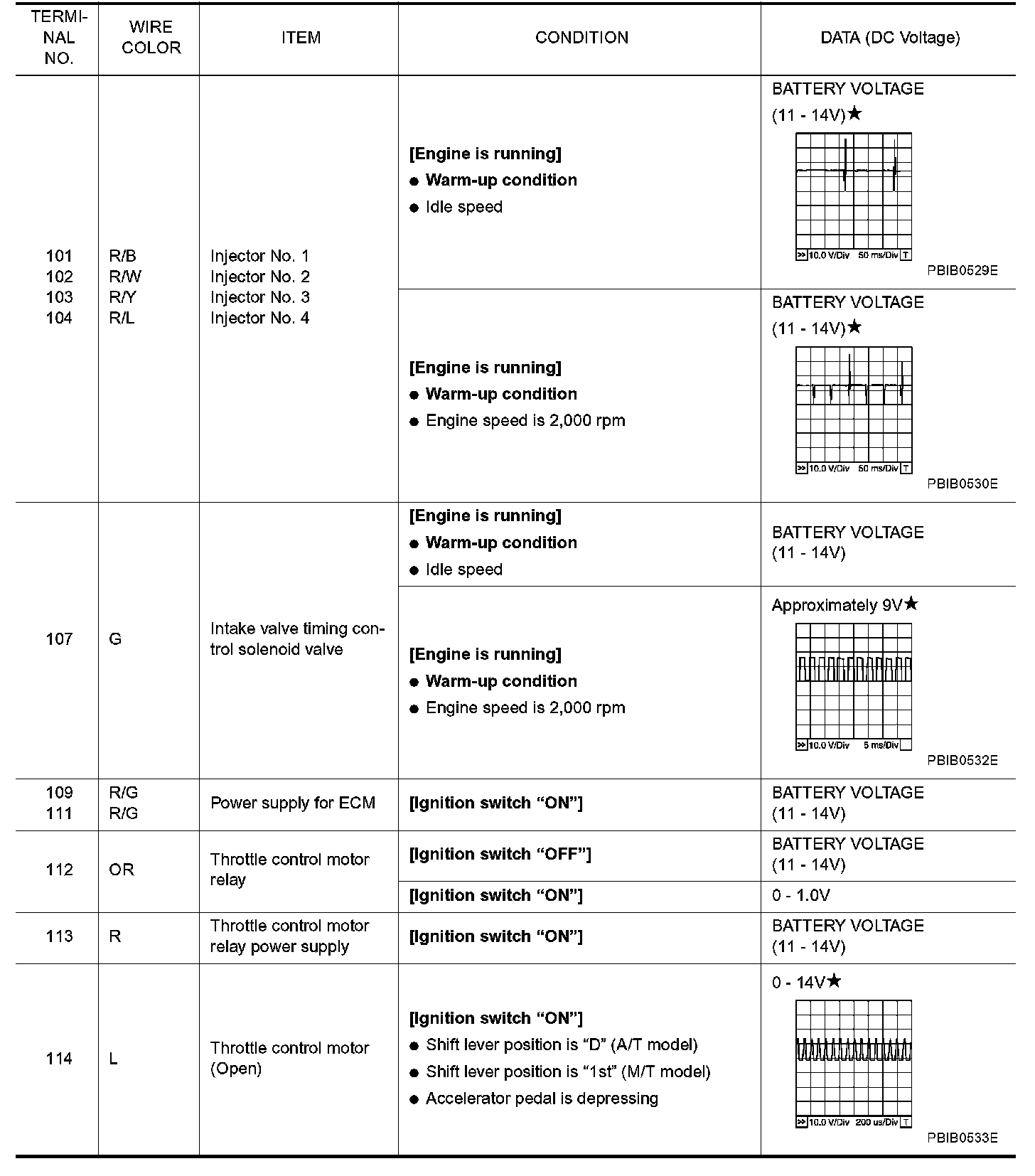

ECM Inspection Table Part 2:

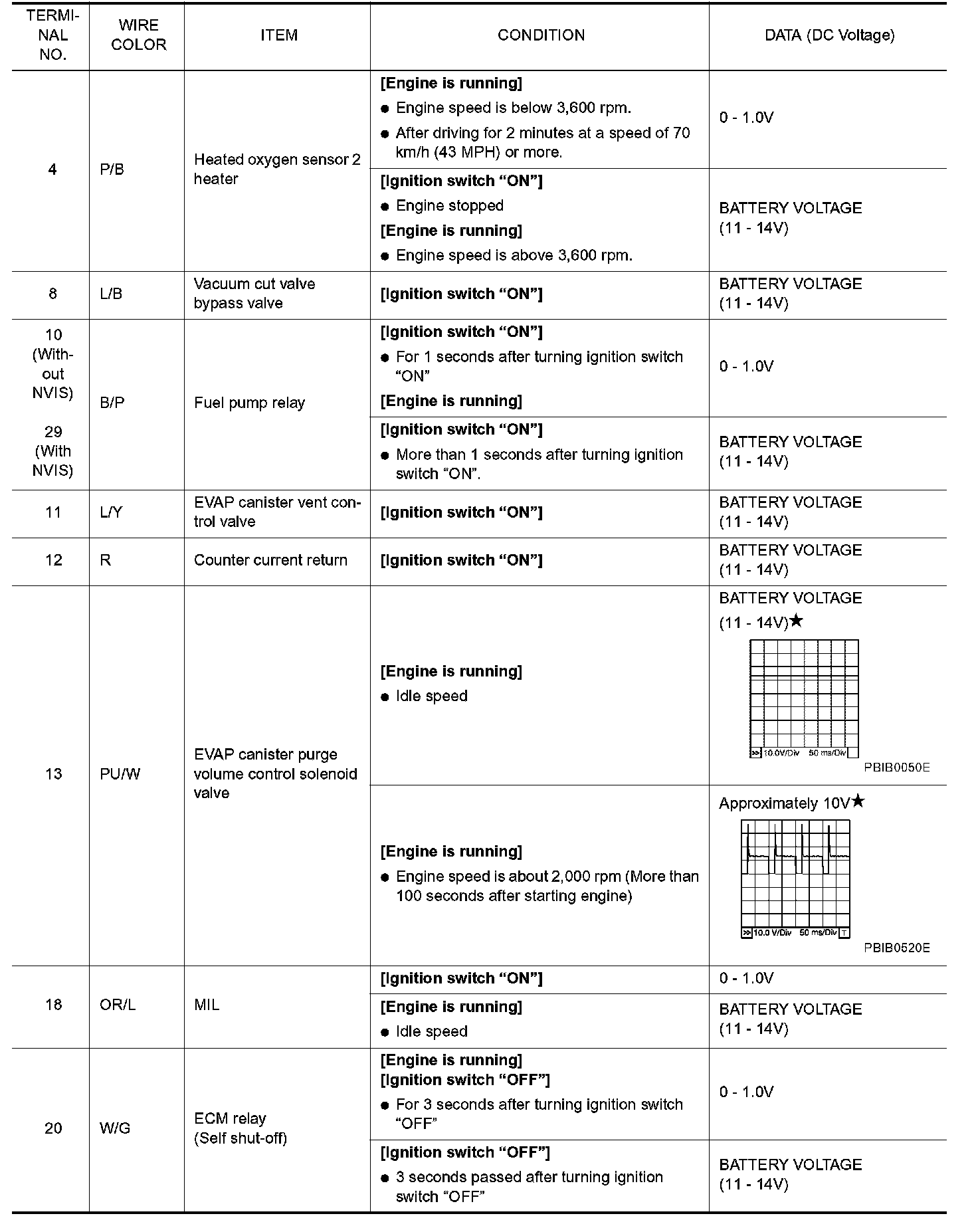

ECM Inspection Table Part 3:

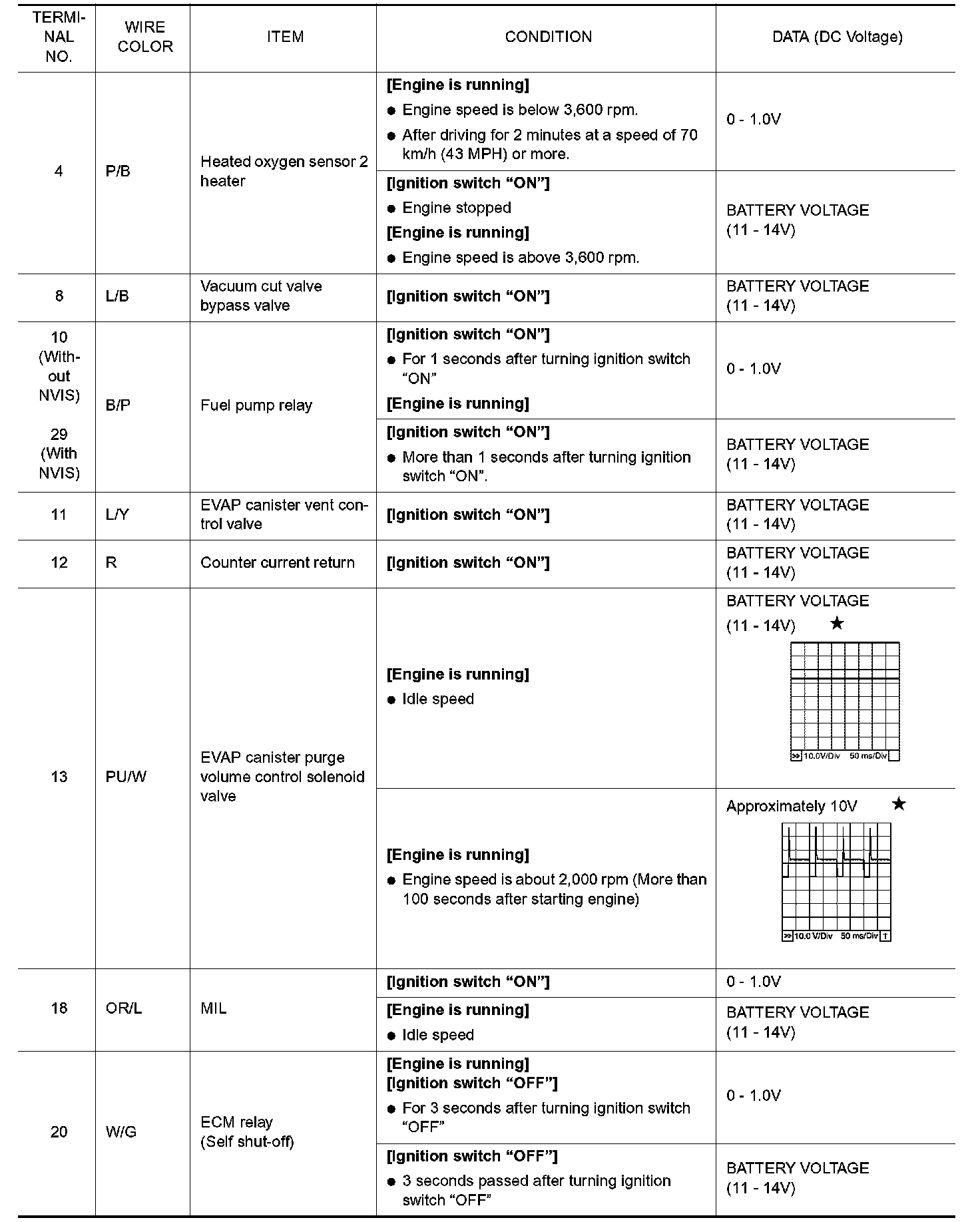

ECM Inspection Table Part 4:

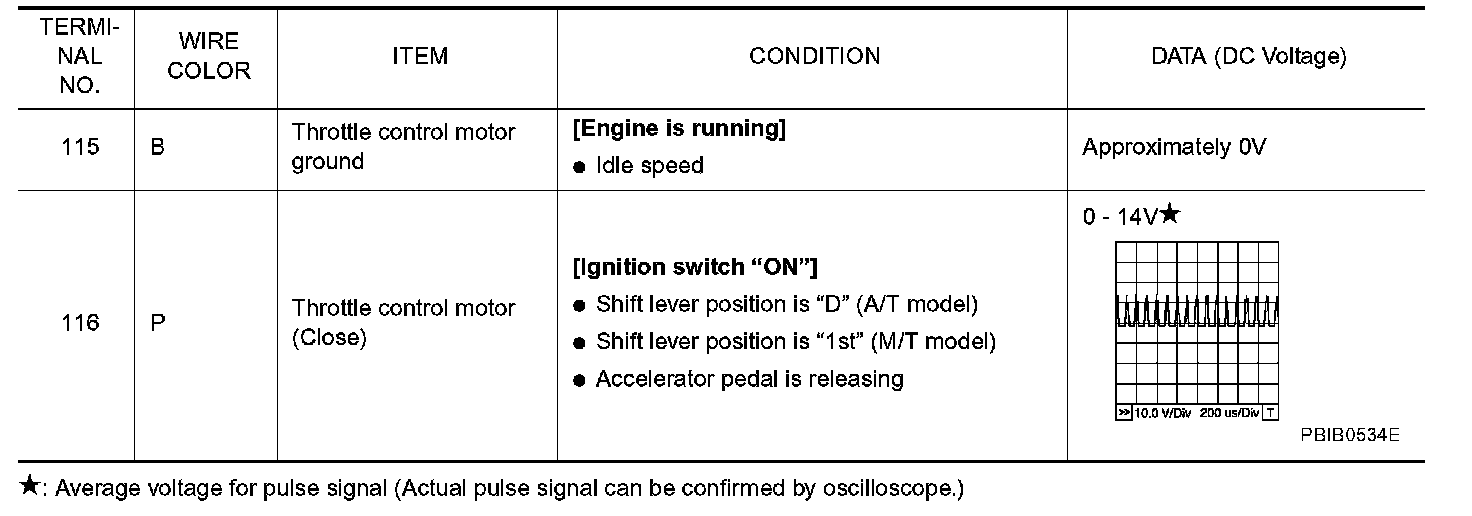

ECM Inspection Table Part 5:

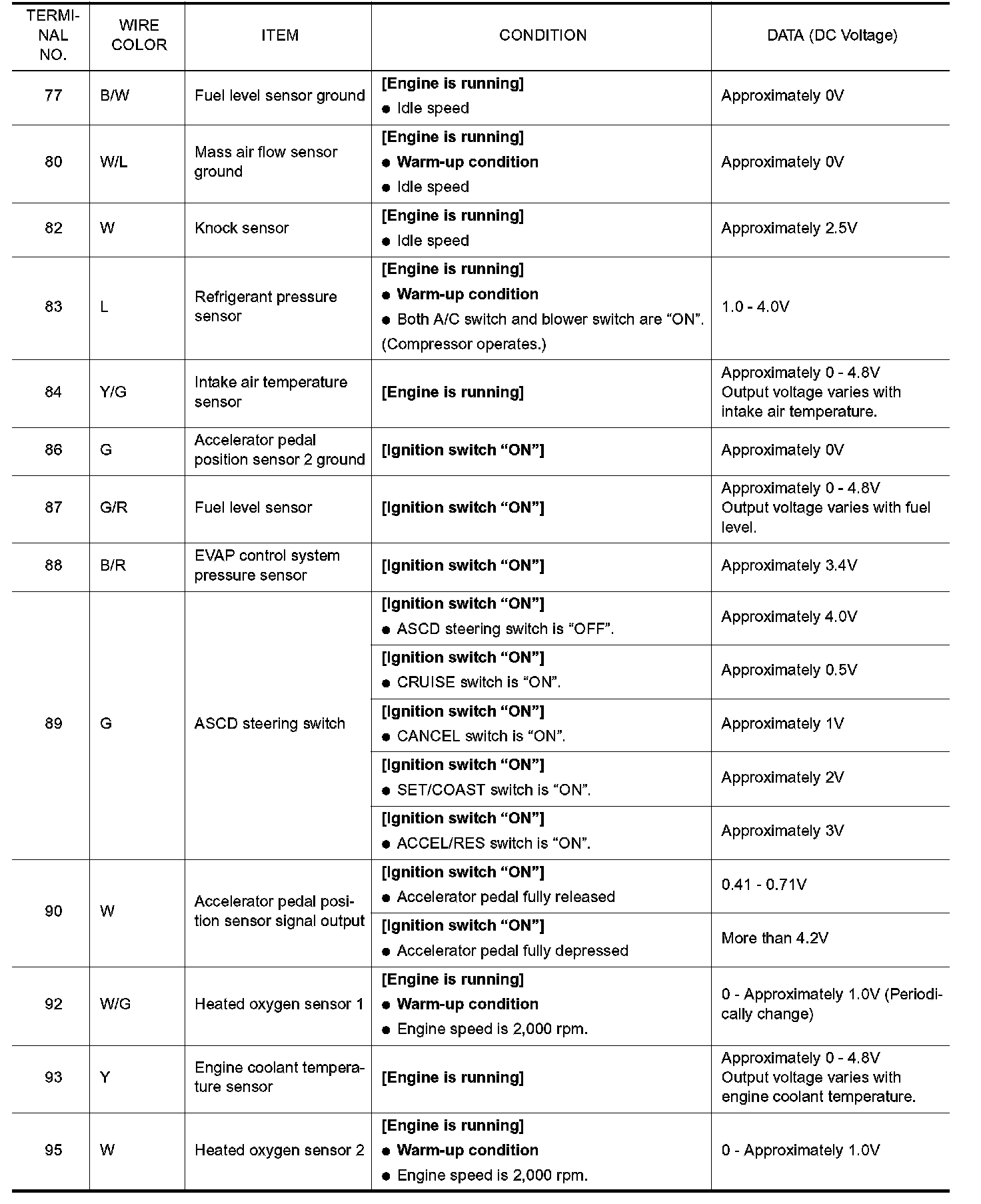

ECM Inspection Table Part 6:

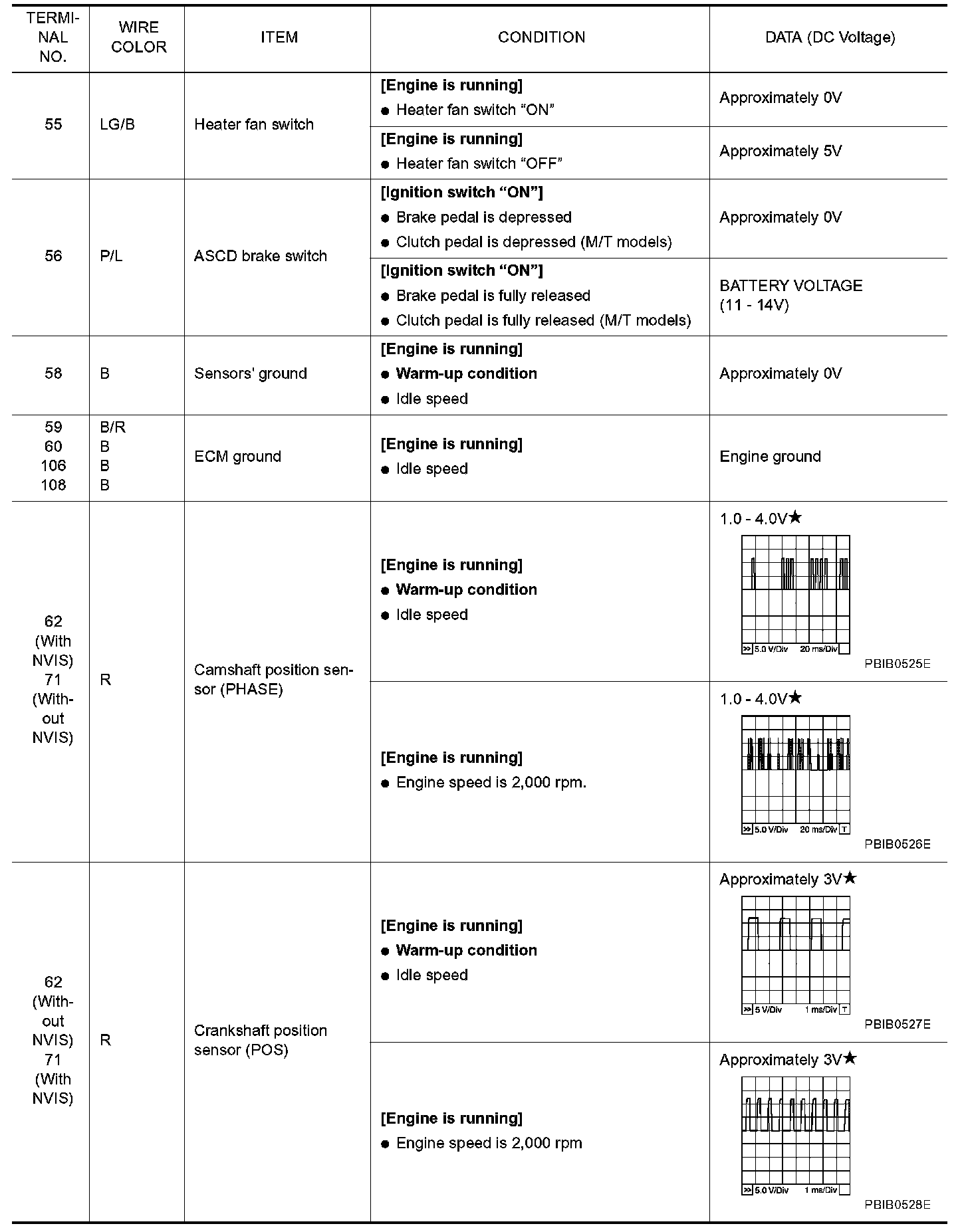

ECM Inspection Table Part 7:

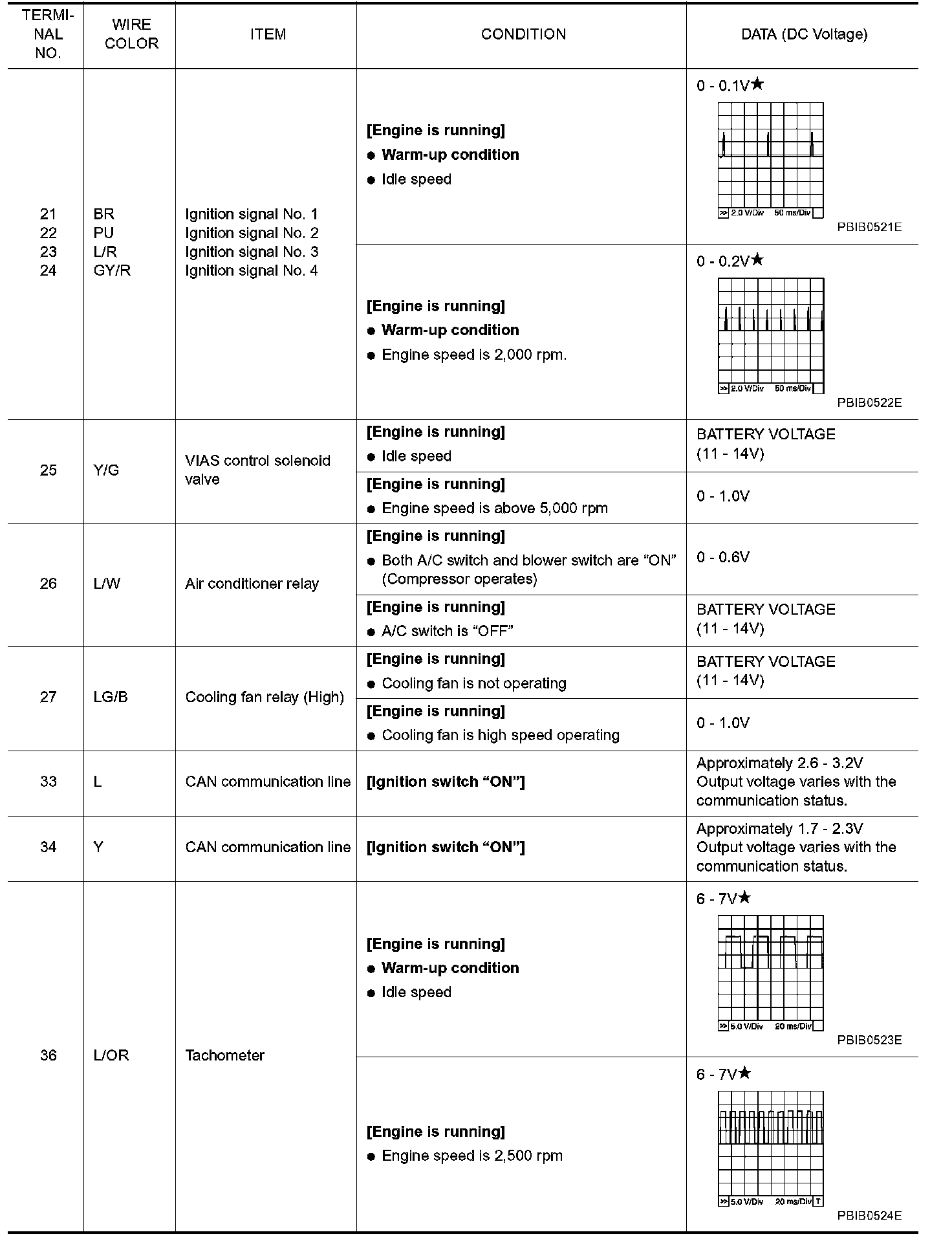

ECM Inspection Table Part 8:
ECM Inspection Table Part 9:
ECM Inspection Table Part 10:
