Starting System: Construction
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

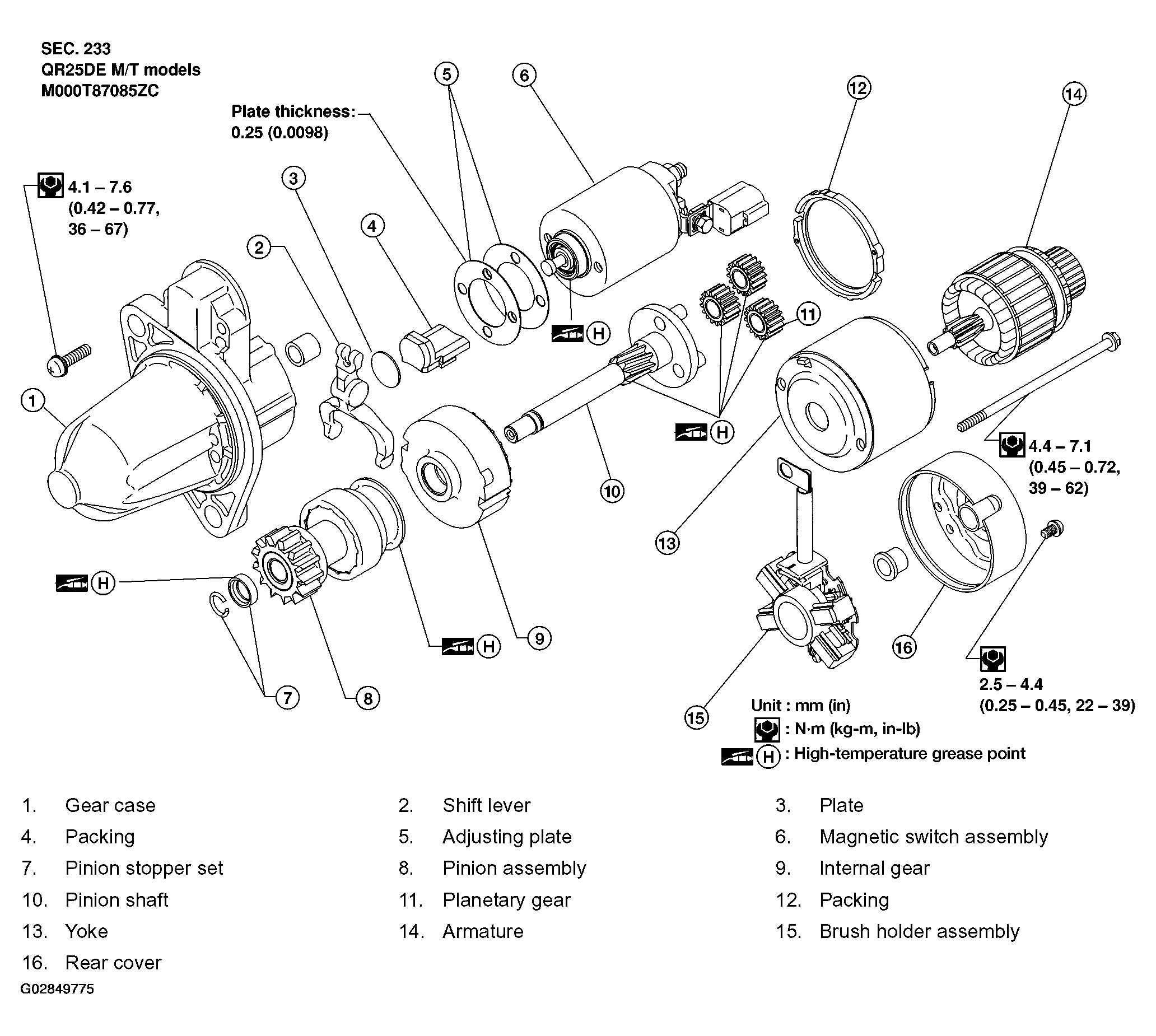

Fig 1: Exploded View Of Starter Motor (QR25DE M/T) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

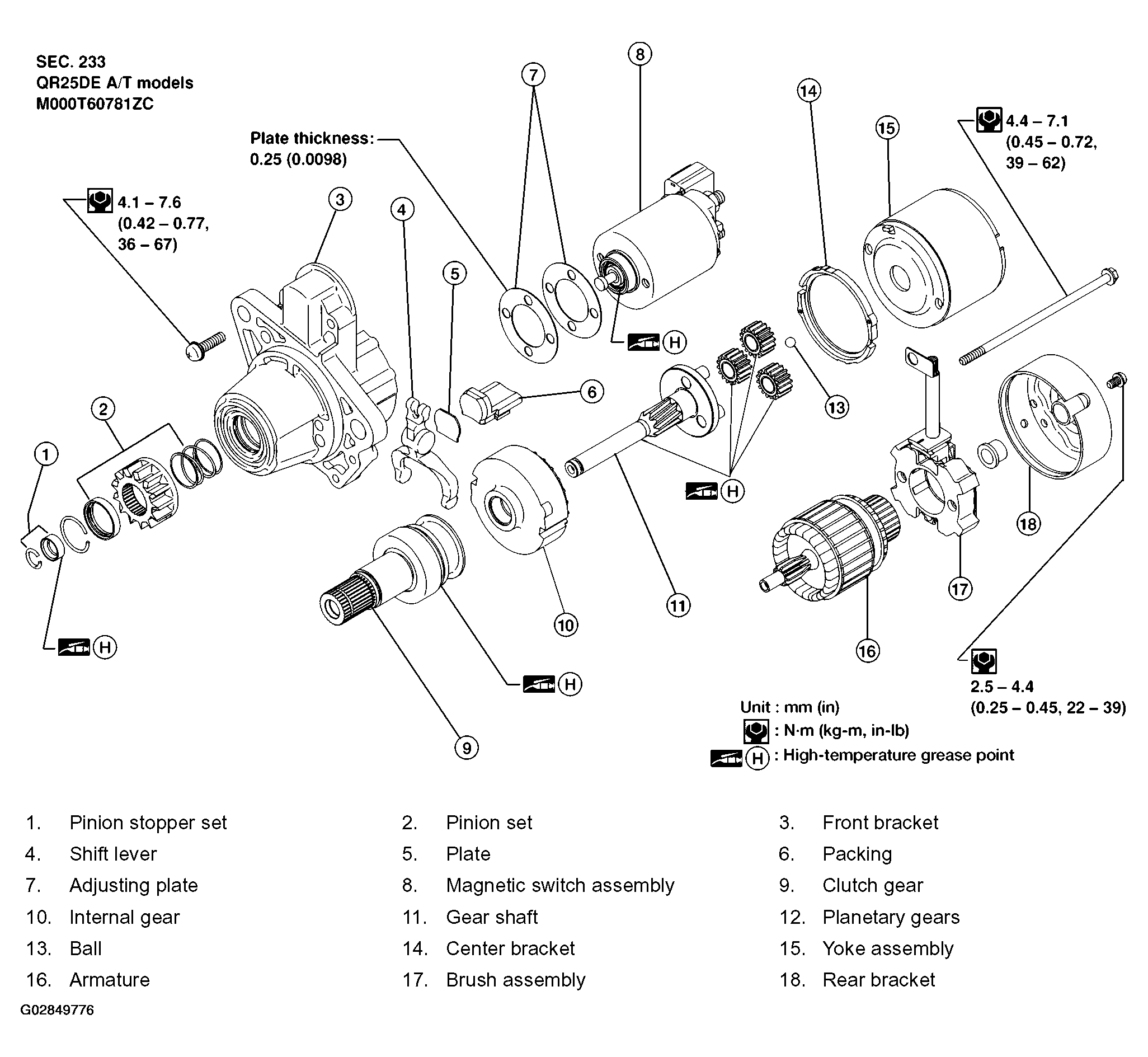

Fig 2: Exploded View Of Starter Motor (QR25DE A/T) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Exploded View Of Starter Motor (VQ35DE M/T) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

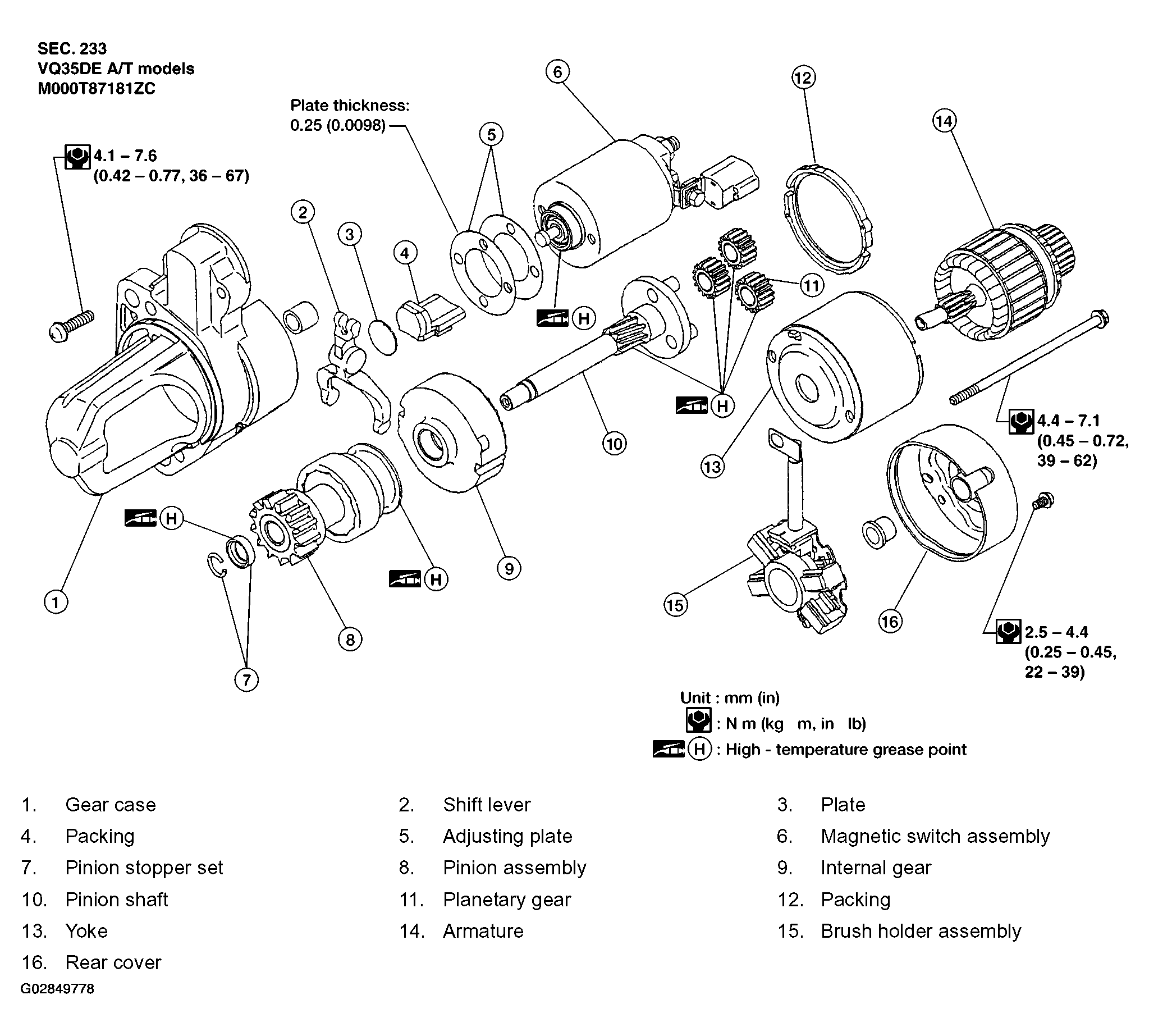

Fig 4: Exploded View Of Starter Motor (VQ35DE A/T) With Torque Specifications
