Terminals and Reference Value for BCM

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

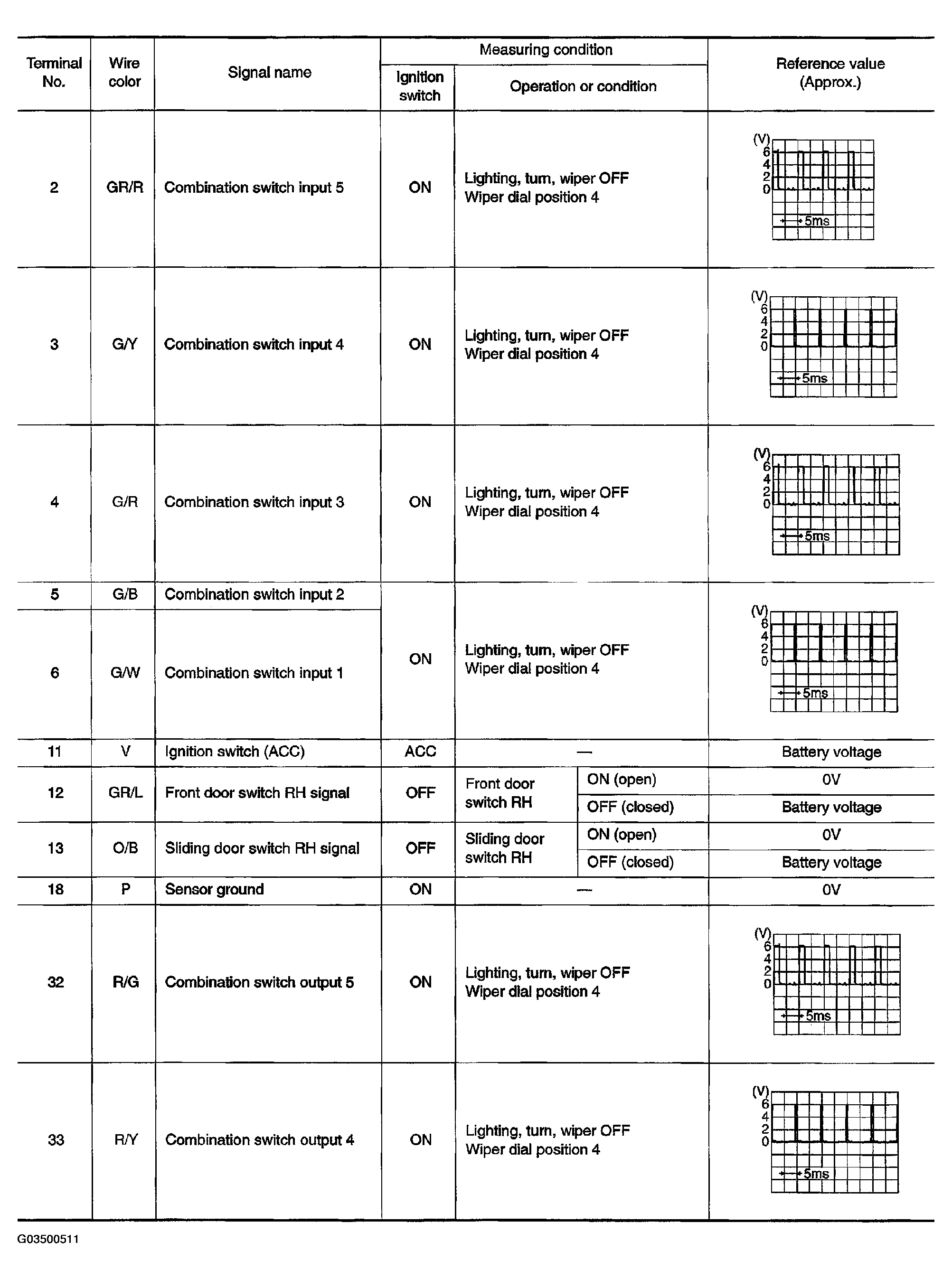

Fig 1: Terminals & Reference Value Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

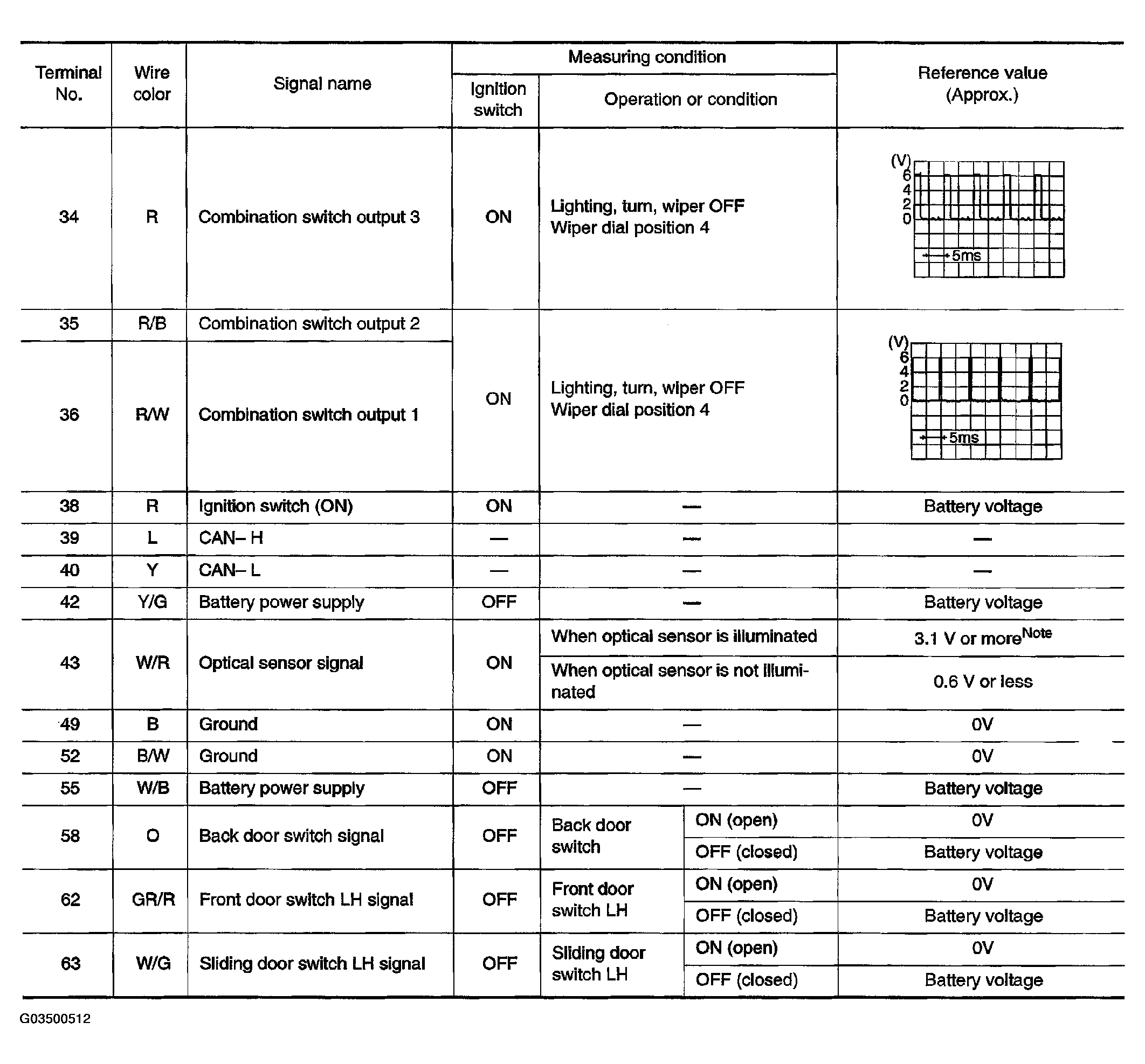

Fig 2: Terminals & Reference Value Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Optical sensor must be completely subjected to work lamp light. If the optical sensor is insufficiently illuminated, the measured value may not satisfy standard.
