Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "BCM" on "SELECT TEST ITEM" screen.

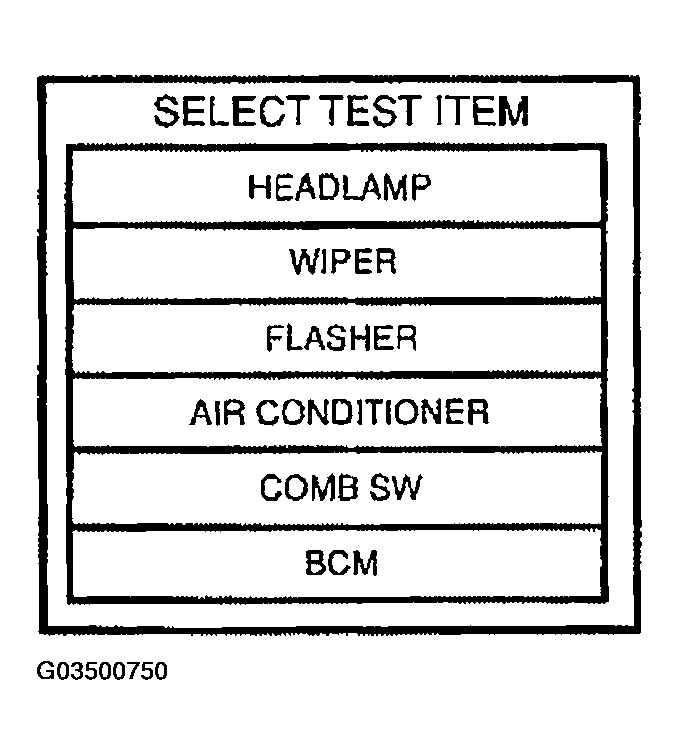

    Fig 1: Displaying "BCM" On "SELECT TEST ITEM" Screen
    G03500750Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
  3. Touch item on "SELECT WORK ITEM" screen.
  4. Touch "START".
  5. Touch "CHANGE SET".

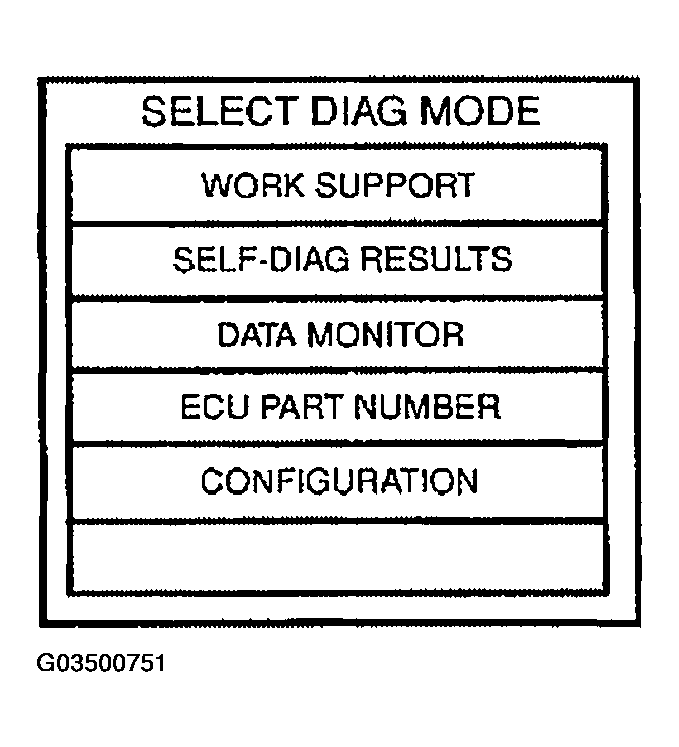

    Fig 2: Displaying "SELECT DIAG MODE" Screen
    G03500751Courtesy of NISSAN MOTOR CO., U.S.A.
  6. The setting will be changed and "RESETTING COMPLETED" will be displayed.
  7. Touch "END".
