Intelligent Power Distribution Module (IPDM) Circuit Check

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS .

For Intelligent Power Distribution Module (IPDM) circuit check on models with TCS and A/T, see Fig 1 and Fig 3 . For Intelligent Power Distribution Module (IPDM) circuit check on models with M/T, see Fig 2 and Fig 3 .

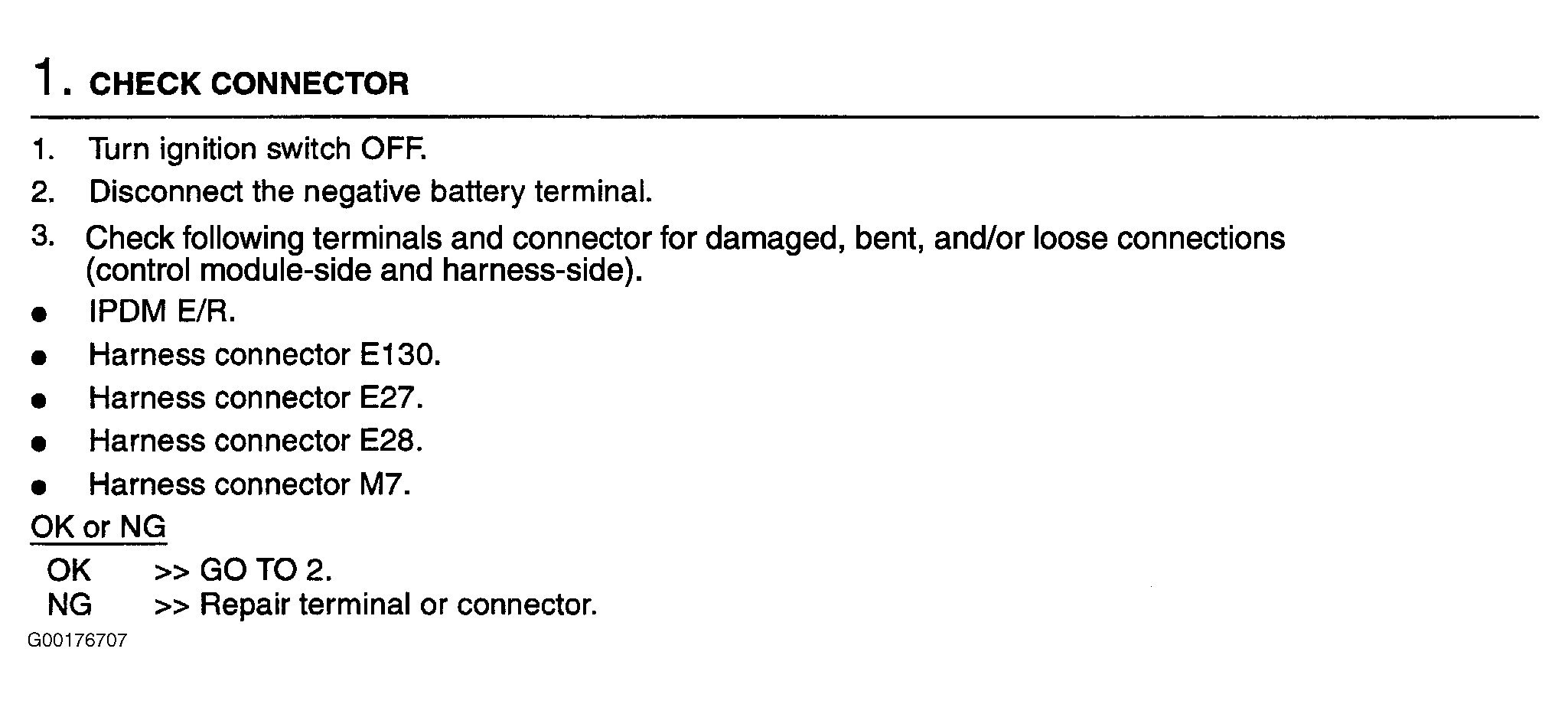

Fig 1: Identifying Intelligent Power Distribution Module Circuit Check, Step 1 (With TCS & A/T)

Courtesy of NISSAN MOTOR CO., U.S.A.

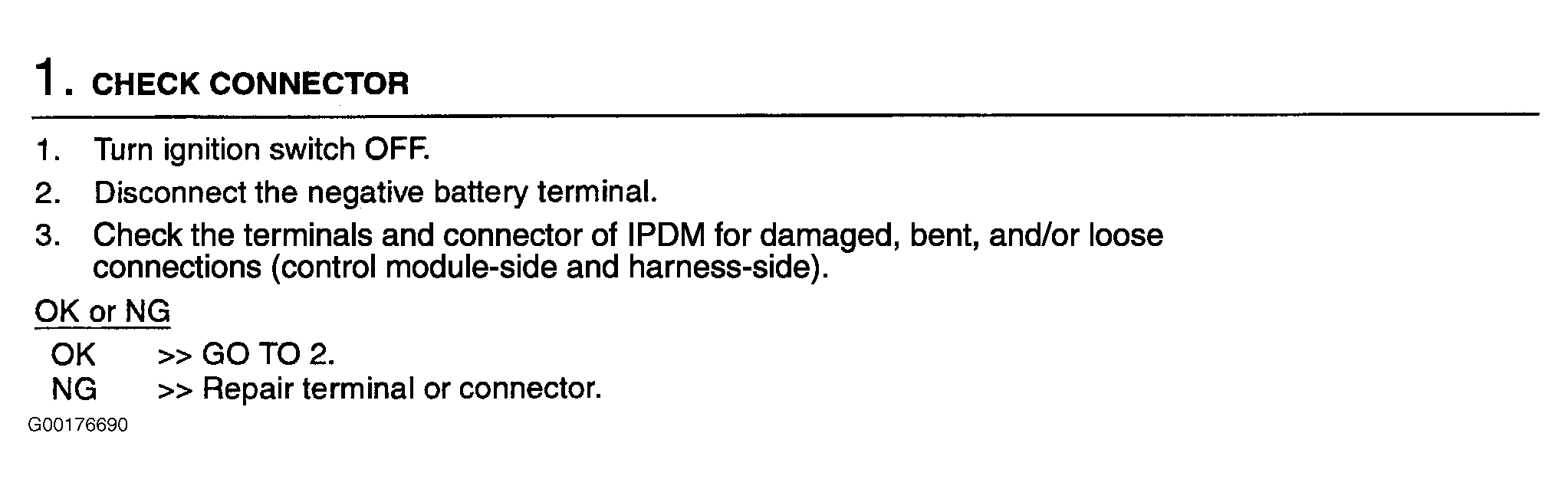

Fig 2: Identifying Intelligent Power Distribution Module Circuit Check, Step 1 (With M/T)

Courtesy of NISSAN MOTOR CO., U.S.A.

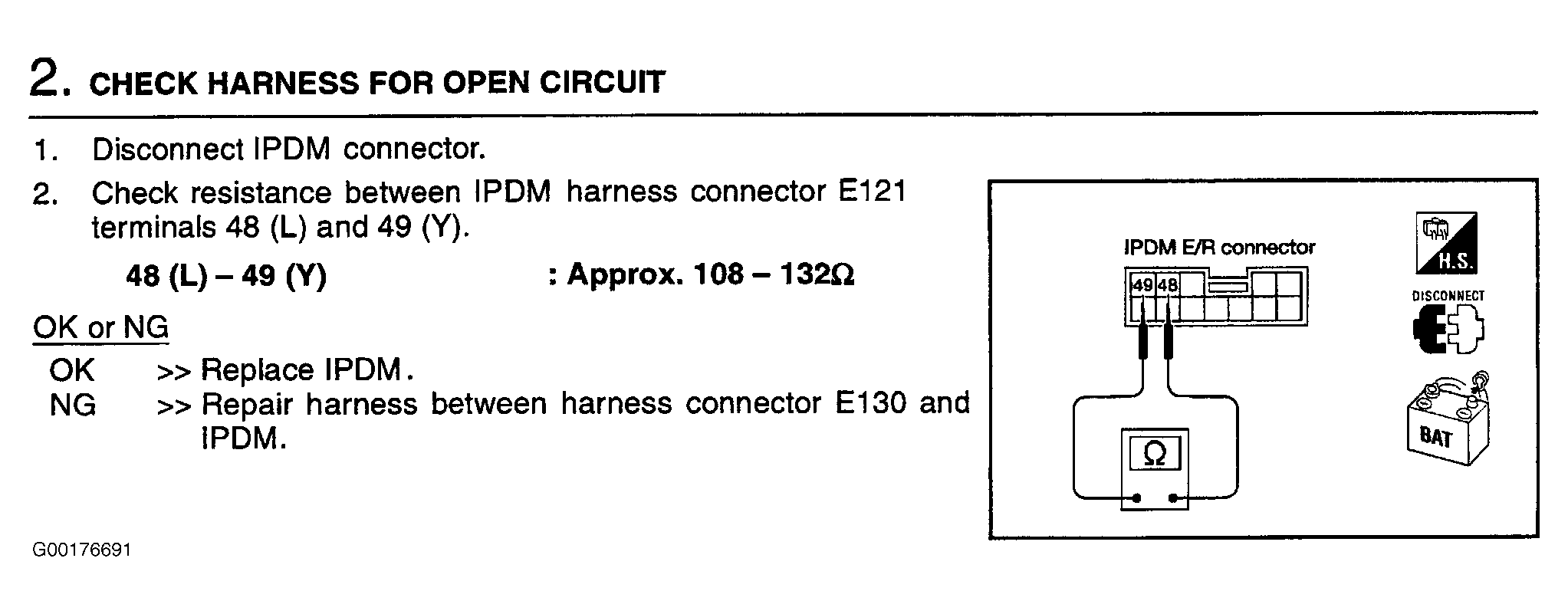

Fig 3: Identifying Intelligent Power Distribution Module Circuit Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
