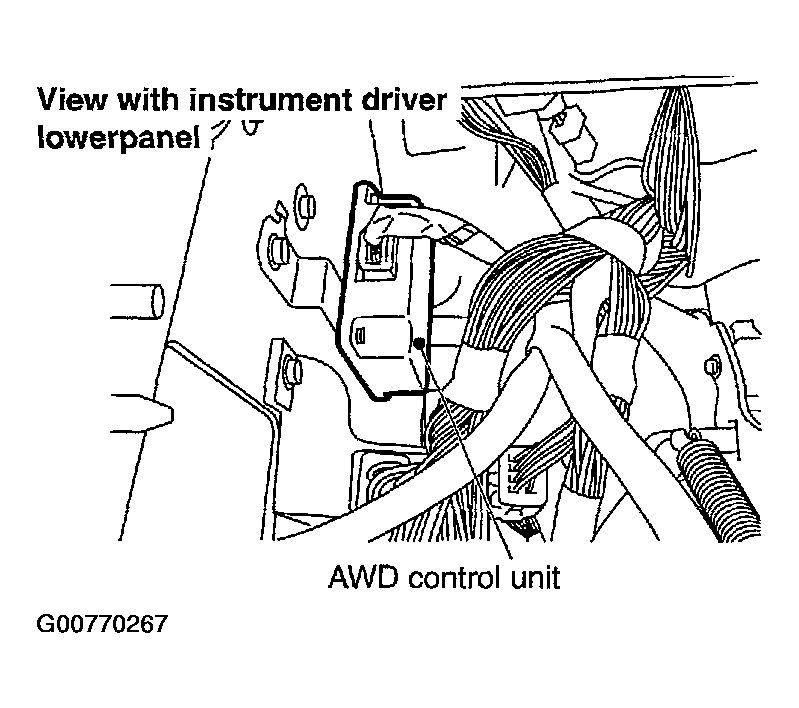

AWD Control Unit
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- Controls distribution of drive power between front-wheel drive (100:0) and AWD (50:50) conditions according to signals from sensors.
- Self-diagnosis can be done with CONSULT-II.
Courtesy of NISSAN MOTOR CO., U.S.A.
