Terminal and Reference Value for Power Window Main Switch
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

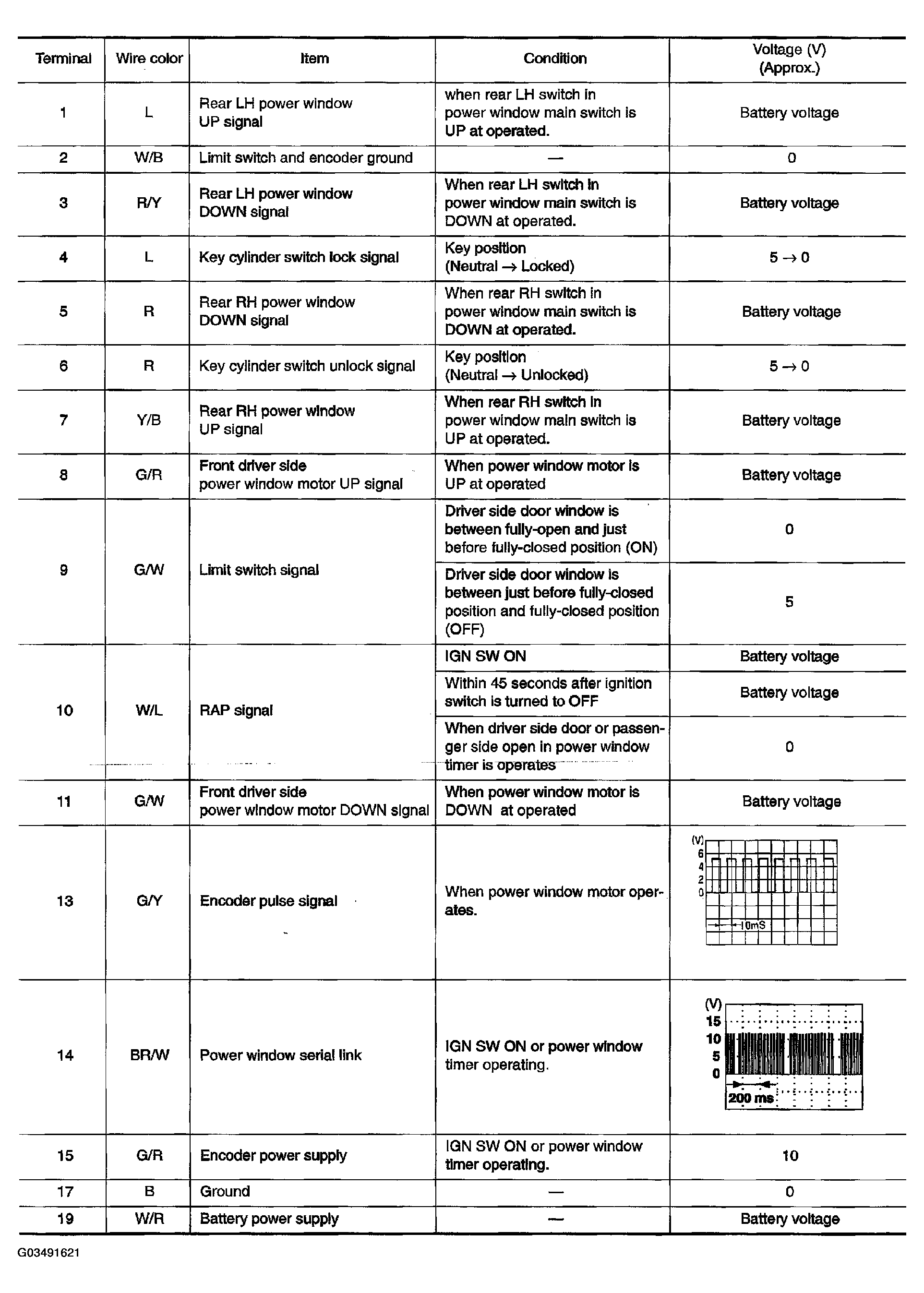

Fig 1: Terminal And Reference Value For Power Window Main Switch
