Checking Temperature Decrease

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Turn temperature dial (driver side) counterclockwise until 18°C (60°F) is displayed.
Check for cold air at discharge air outlets.

If NG, go to trouble diagnosis procedure for "INSUFFICIENT COOLING ".

If OK, continue with next check.

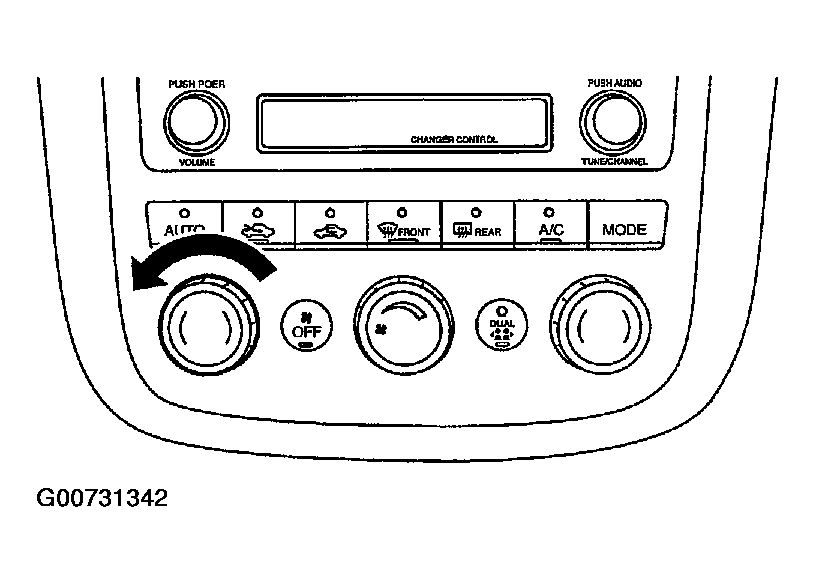

Fig 1: Checking Temperature Decrease

Courtesy of NISSAN MOTOR CO., U.S.A.
