Operation Table of BCM and Combination Switches
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

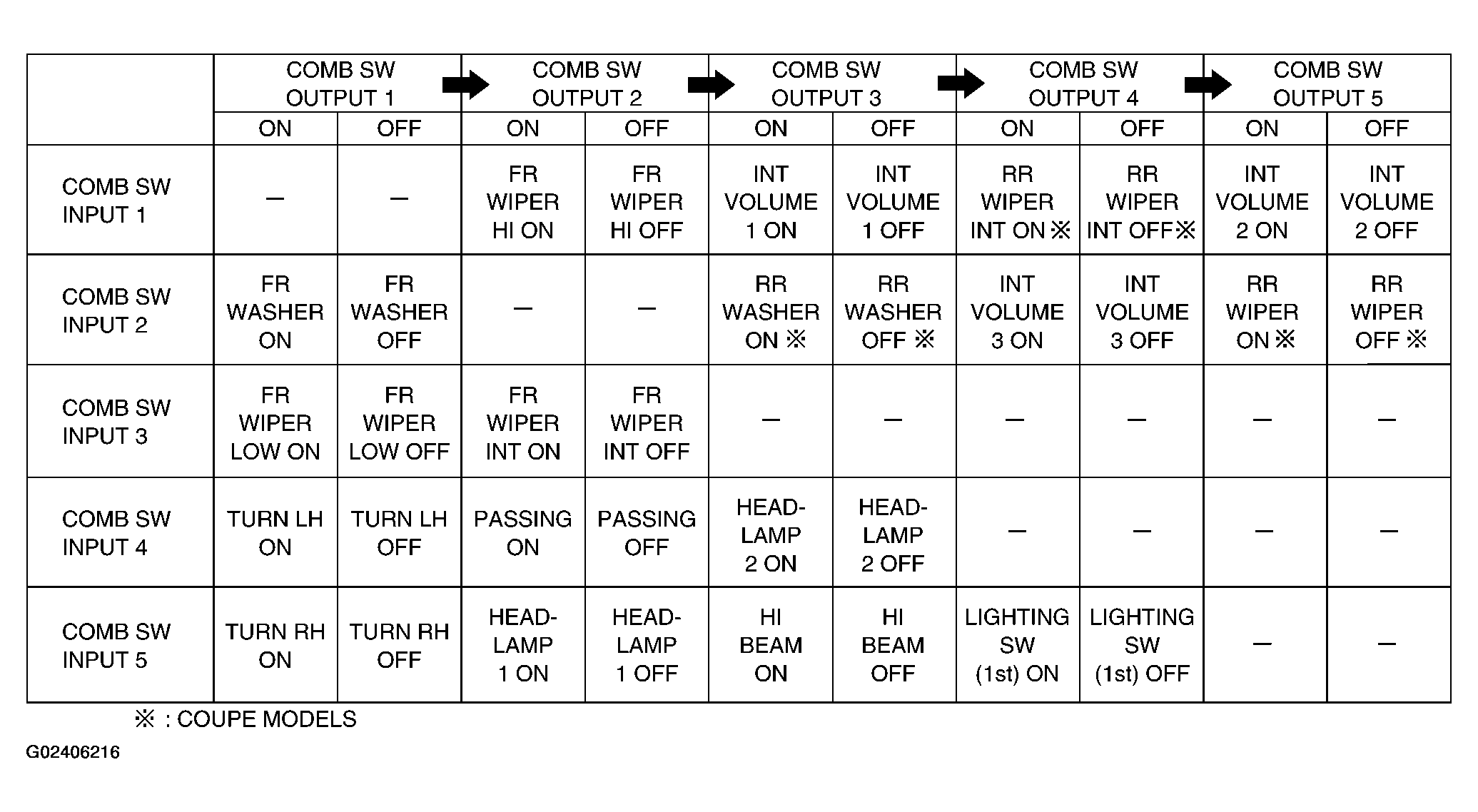

- BCM reads operation status of combination switch using combinations shown in table below.
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Headlamp has a dual system switch.
