Power Supply and Ground Circuit Check for Power Cluster Lid Amp.

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSE
Make sure that the following fuses of the power cluster lid amp. are not blown.

Fig 1: Fuses Inspection Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK : GO TO 2.
- NG : If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to "POWER SUPPLY ROUTING CIRCUIT ".
CHECK POWER SUPPLY CIRCUIT
Check voltage between power cluster lid amp. harness connector terminals and ground.

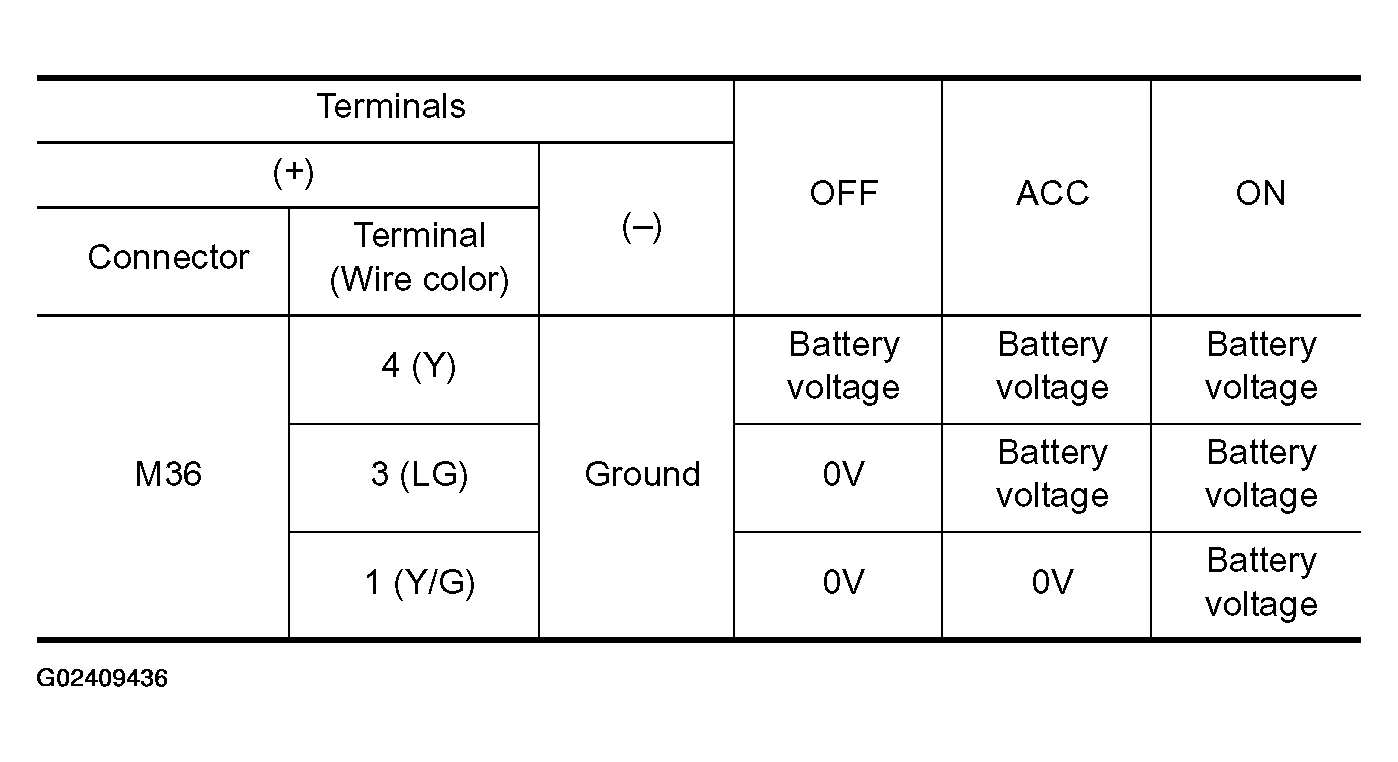

Fig 2: Power Cluster Lid AMP Harness Connector Terminals And Ground Voltage Specifications Table
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Power Cluster Lid AMP Harness Connector Terminals & Ground Voltage Test
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK : GO TO 3.
- NG : Repair harness or connector.
CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power cluster lid amp. connector.
3. Check continuity between power cluster lid amp. harness connector M36 terminal 2 (B) and ground.
  - 2 - Ground : Continuity should exist.
OK or NG
- OK : INSPECTION END
- NG : Repair harness or connector.
Fig 4: Power Cluster Lid AMP Harness Connector M36 Terminal 2 (B) & Ground Continuity Test
Courtesy of NISSAN MOTOR CO., U.S.A.
