With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
  3. Start engine.
  4. Drive vehicle and maintain the following conditions for at least 2 consecutive seconds.

    Selector lever: "D" position

  5. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

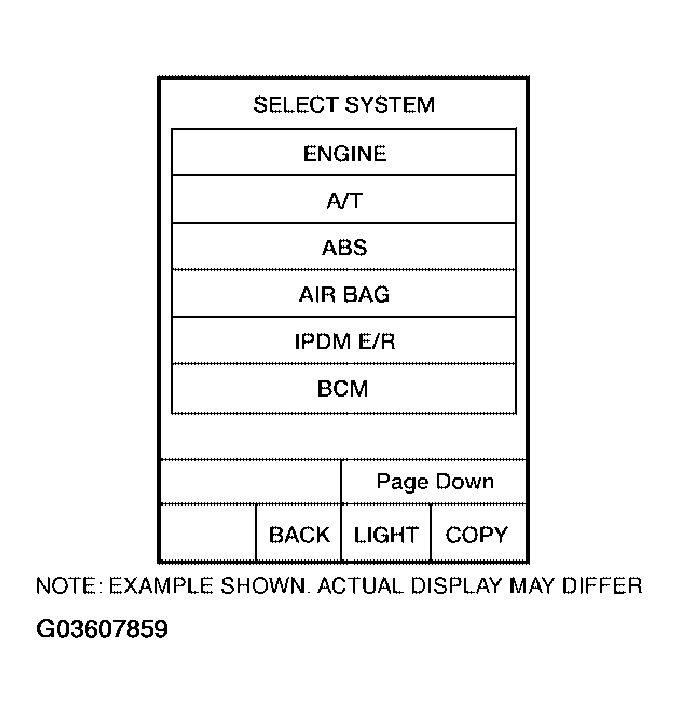

    Fig 1: CONSULT-II Display - Select System
    G03607859Courtesy of NISSAN MOTOR CO., U.S.A.
