Component Description & Reference Data

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

For component description and reference data, see Fig 1 .

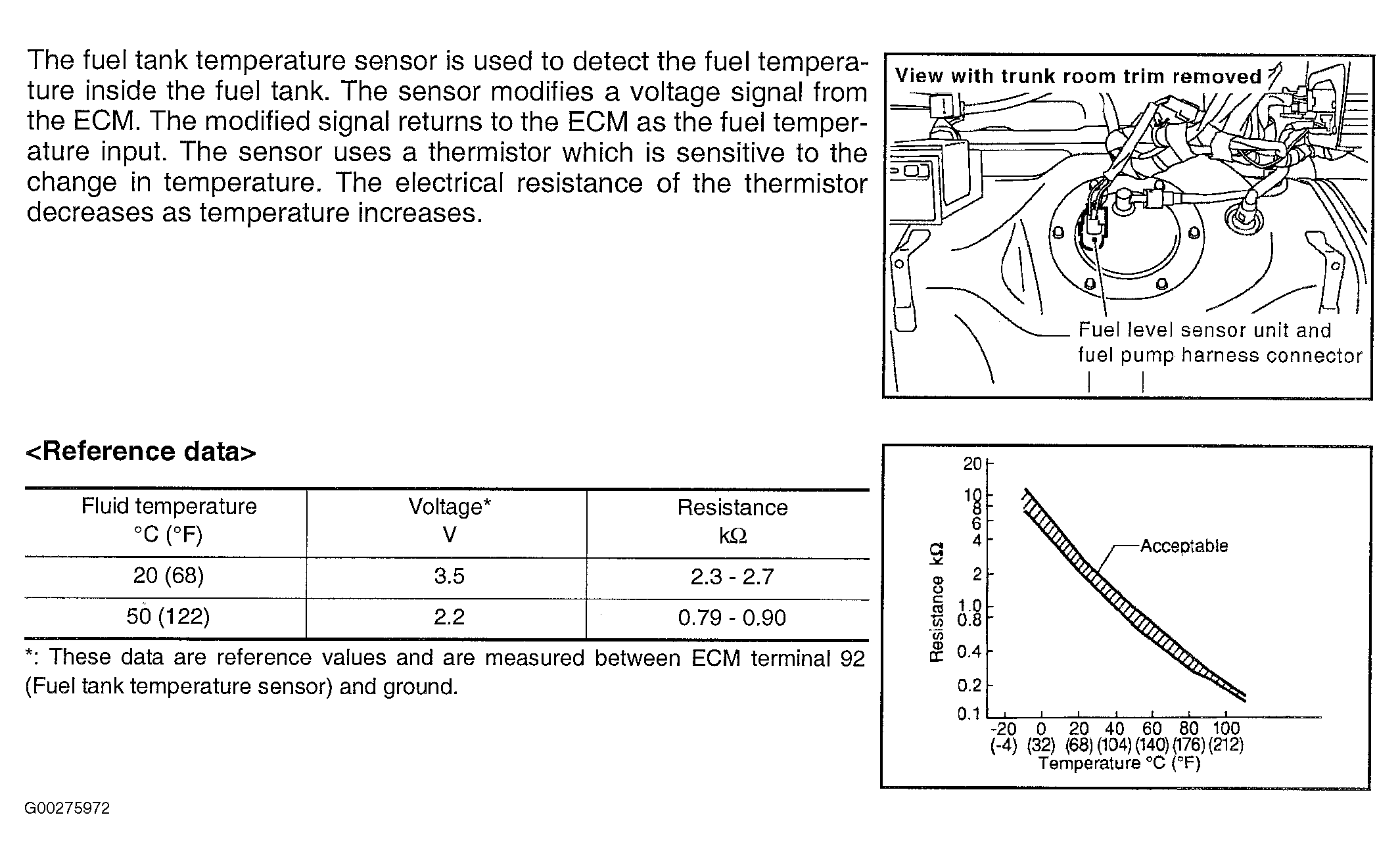

Fig 1: Component Description & Reference Data
G00275972Courtesy of NISSAN MOTOR CO., U.S.A.
