Component Description, CONSULT-II Reference Value In Data Monitor Mode & On Board Diagnosis Logic

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

For component description, CONSULT-II reference value in data monitor mode and on board diagnosis logic, see Fig 1 .

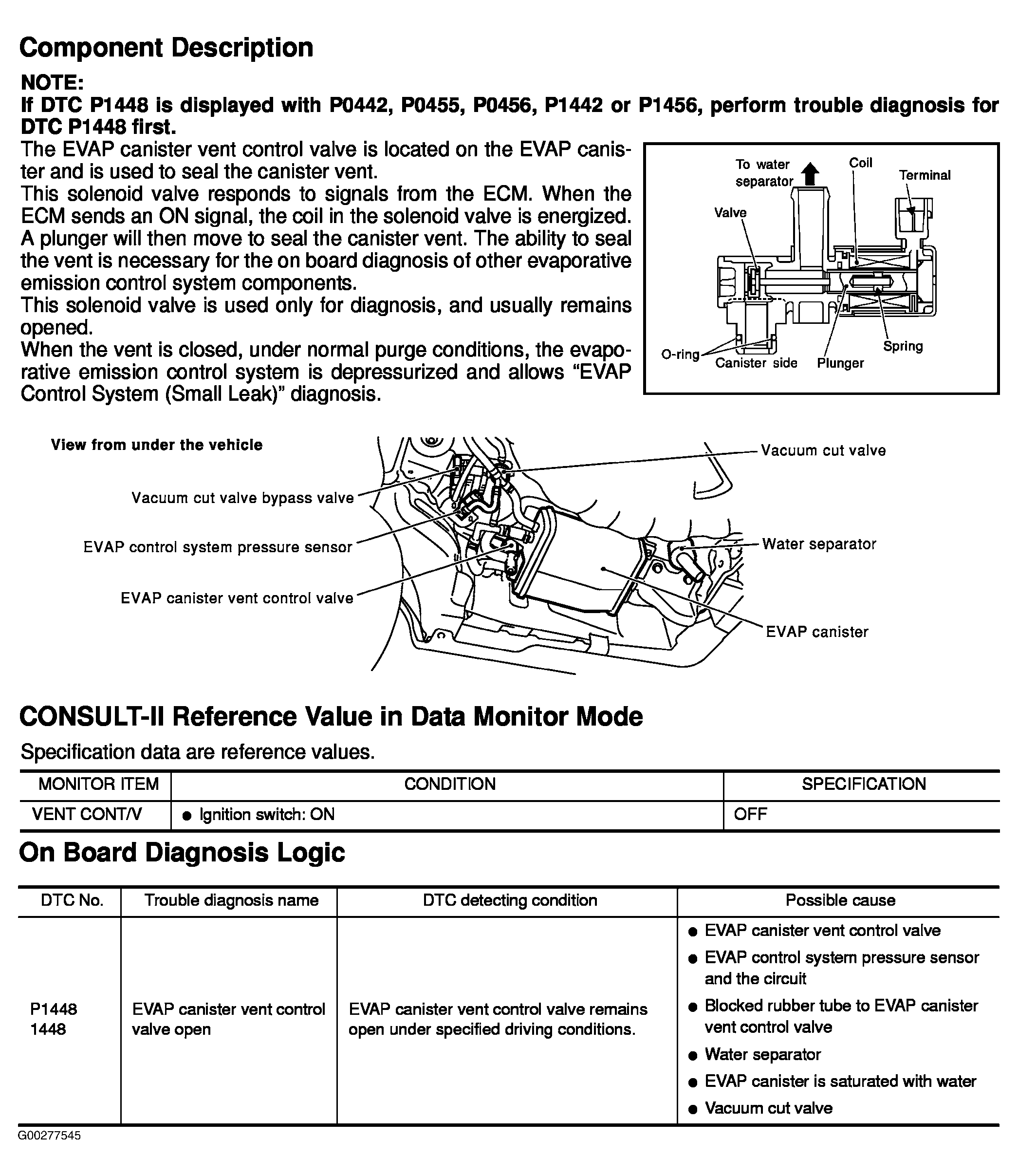

Fig 1: Component Description, CONSULT-II Reference Value In Data Monitor Mode & On Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
