DTC Detection Logic

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
DTC DETECTION LOGIC (WITH CONSULT)

CONSULT name DTC DTC detecting condition Repair order
FR CURTN MODULE RH [OPEN] B1193 RH side curtain air bag module (front) circuit is open.
  1. Visually check the wiring harness connection.
  2. Replace the harness if it has visible damage.
  3. Replace the air bag diagnosis sensor unit.
  4. Replace the RH side curtain air bag module.
  5. Replace the related harness.
FR CURTN MODULE RH [VB-SHORT] B1194 RH side curtain air bag module (front) circuit is shorted to a power supply circuit.
FR CURTN MODULE RH [GND-SHORT] B1195 RH side curtain air bag module (front) circuit is shorted to ground.
FR CURTN MODULE RH [SHORT] B1196 RH side curtain air bag module (front) circuits are shorted to each other.

Without CONSULT

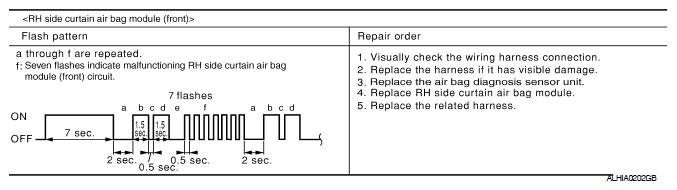

Fig 1: RH Side Curtain Air Bag Module (Front) Flash Pattern
G08122907Courtesy of NISSAN NORTH AMERICA, INC.
