Shift Change

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

The clutch is controlled with the optimum timing and oil pressure by the engine speed, engine torque information, etc.

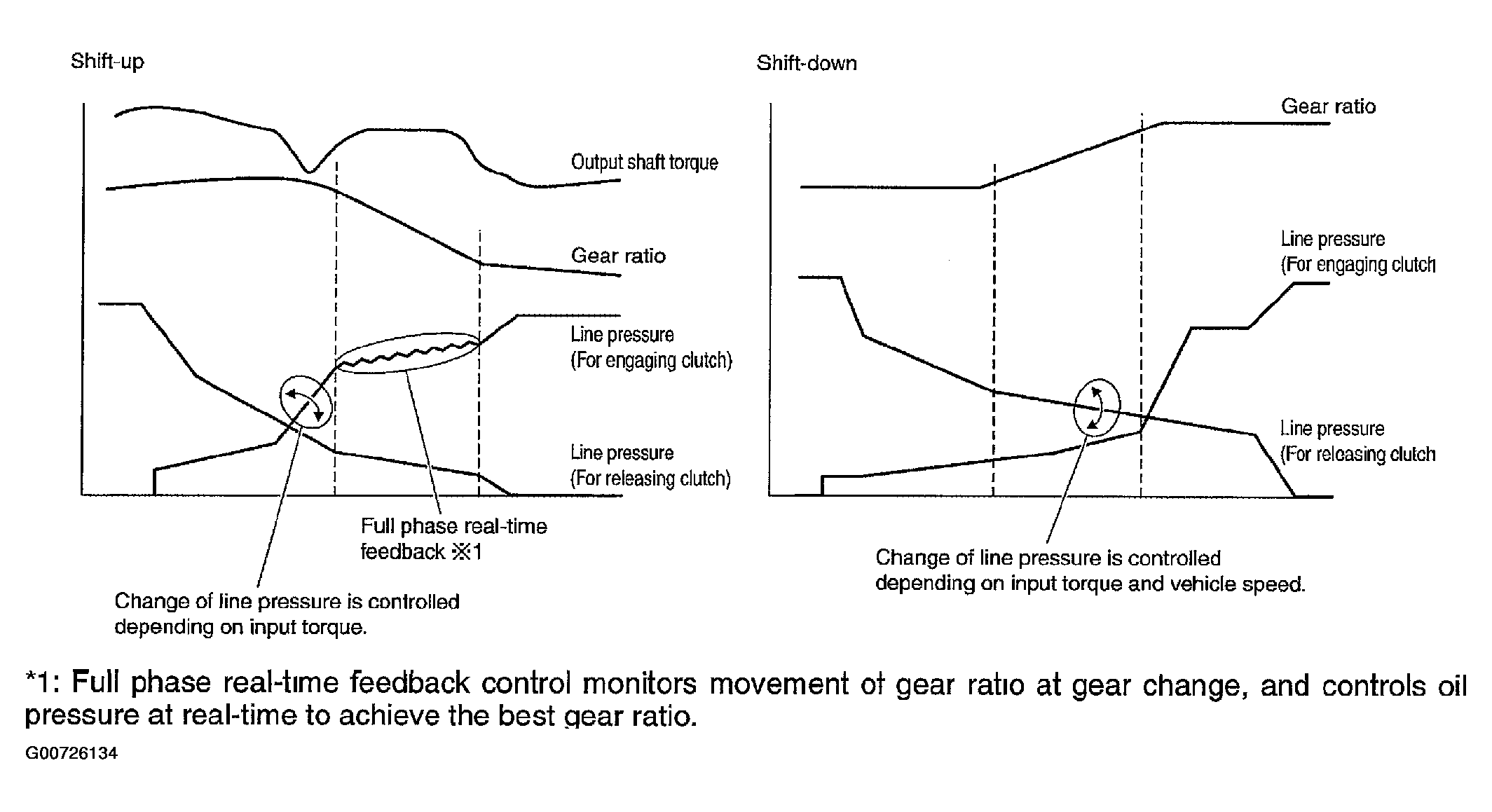

Fig 1: Shift Change System Diagram
G00726134Courtesy of NISSAN MOTOR CO., U.S.A.
