Section 384 (Automatic Transmission)
>>
DTC P1815: Manual Mode Switch
>>
Component Inspection
>>
Manual Mode Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Manual Mode Switch
WARNING:
This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
Check continuity between terminals.

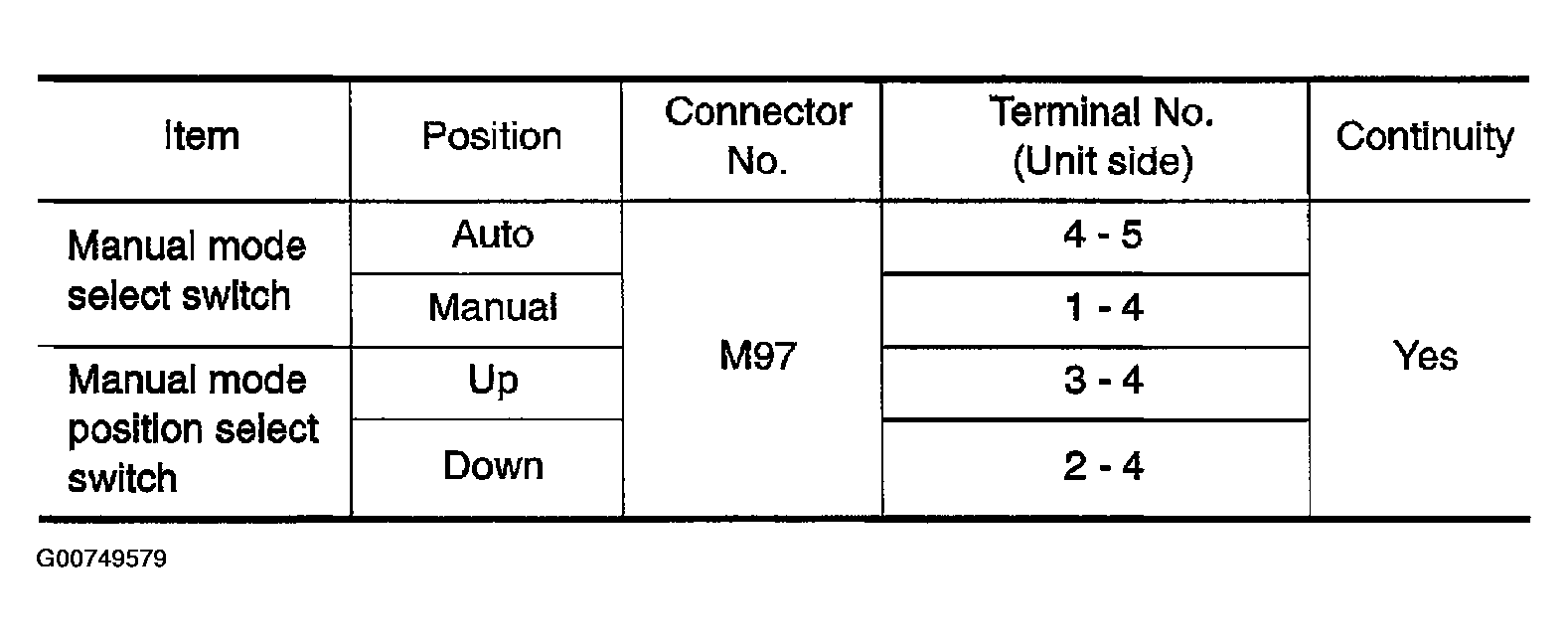

Fig 1: Continuity Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Testing Procedures
Courtesy of NISSAN MOTOR CO., U.S.A.
