Terminals and Reference Value for Combination Meter
WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

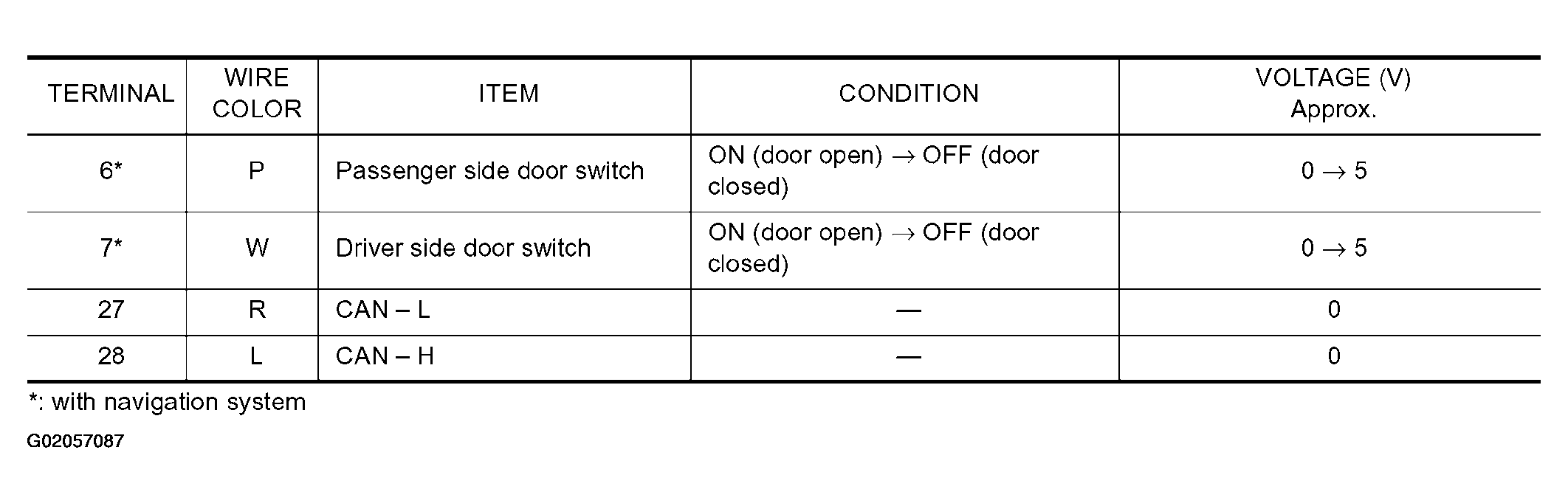

Fig 1: Terminals And Reference Value Table For Combination Meter
