Hydraulic Control Circuit

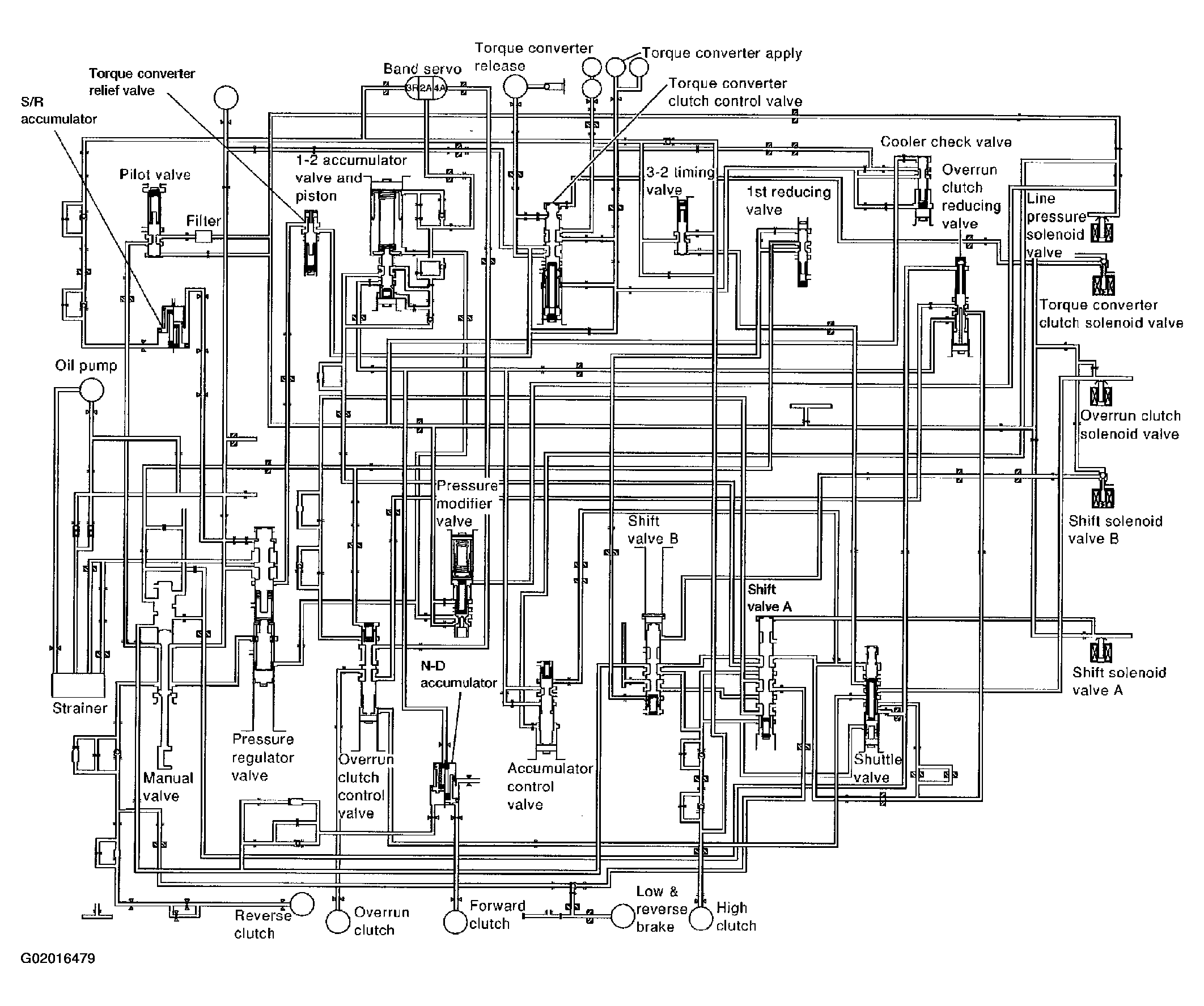

Fig 1: Automatic Transaxle System Hydraulic Control Circuit Diagram
G02016479Courtesy of NISSAN MOTOR CO., U.S.A.
