Automatic Transaxle Re4F04B
>>
Overhaul
>>
Oil Channel
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Oil Channel

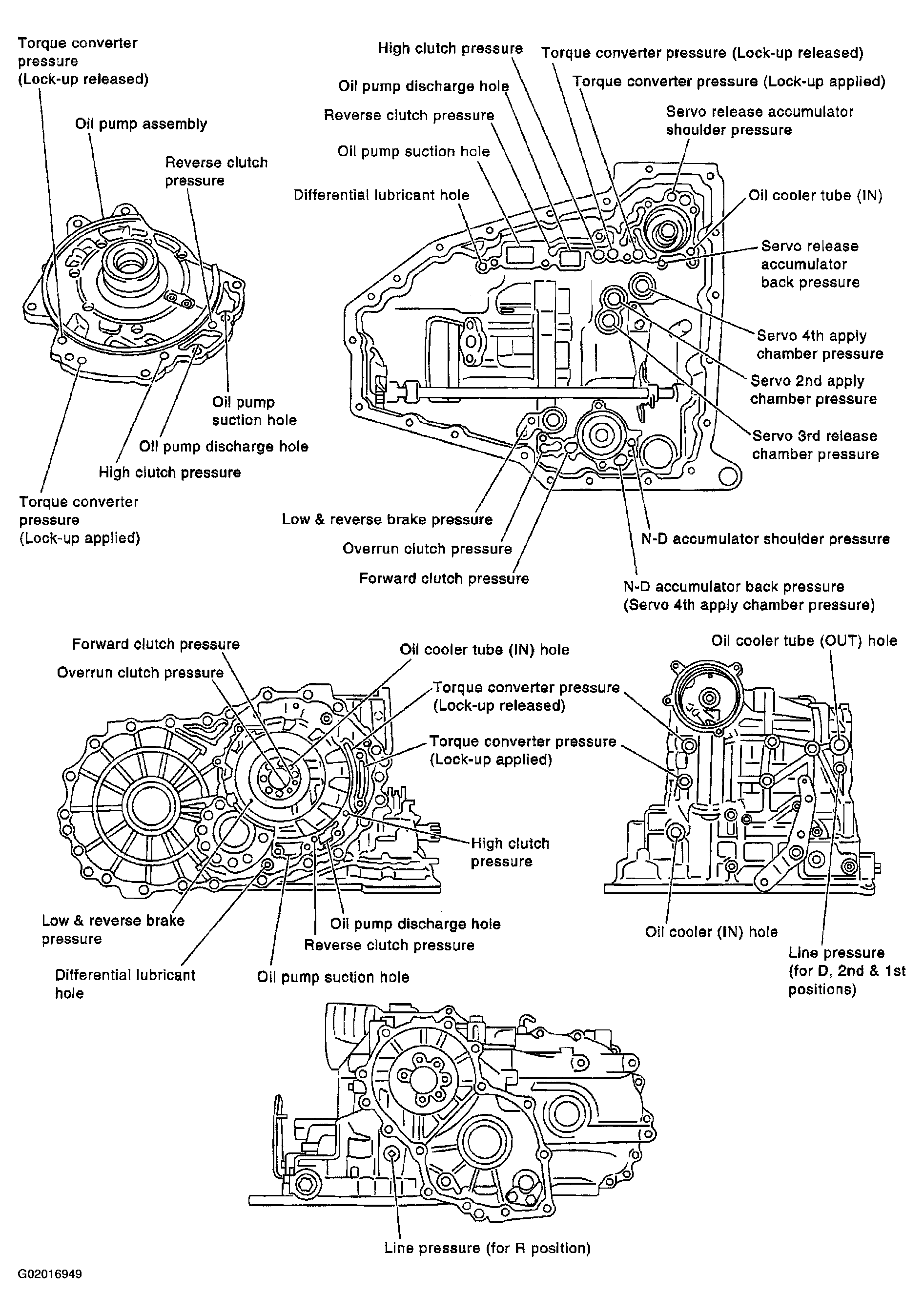

Fig 1: Locating Automatic Transaxle Components (Oil Channel)
Courtesy of NISSAN MOTOR CO., U.S.A.
