Manual Shaft: Components

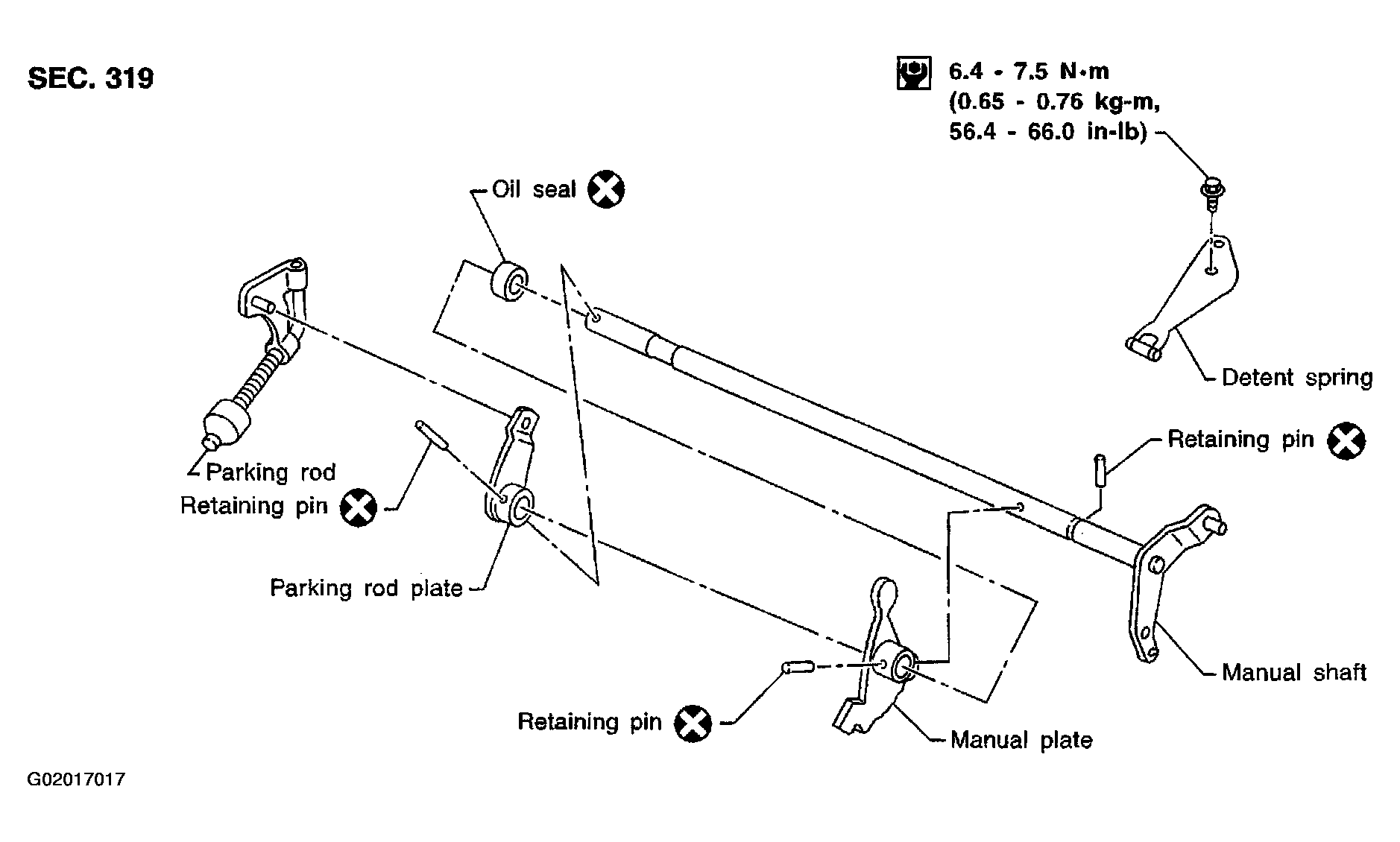

Fig 1: Manual Shaft Replacement Components With Torque Specifications
G02017017Courtesy of NISSAN MOTOR CO., U.S.A.
