Remote Keyless Entry System: Schematic

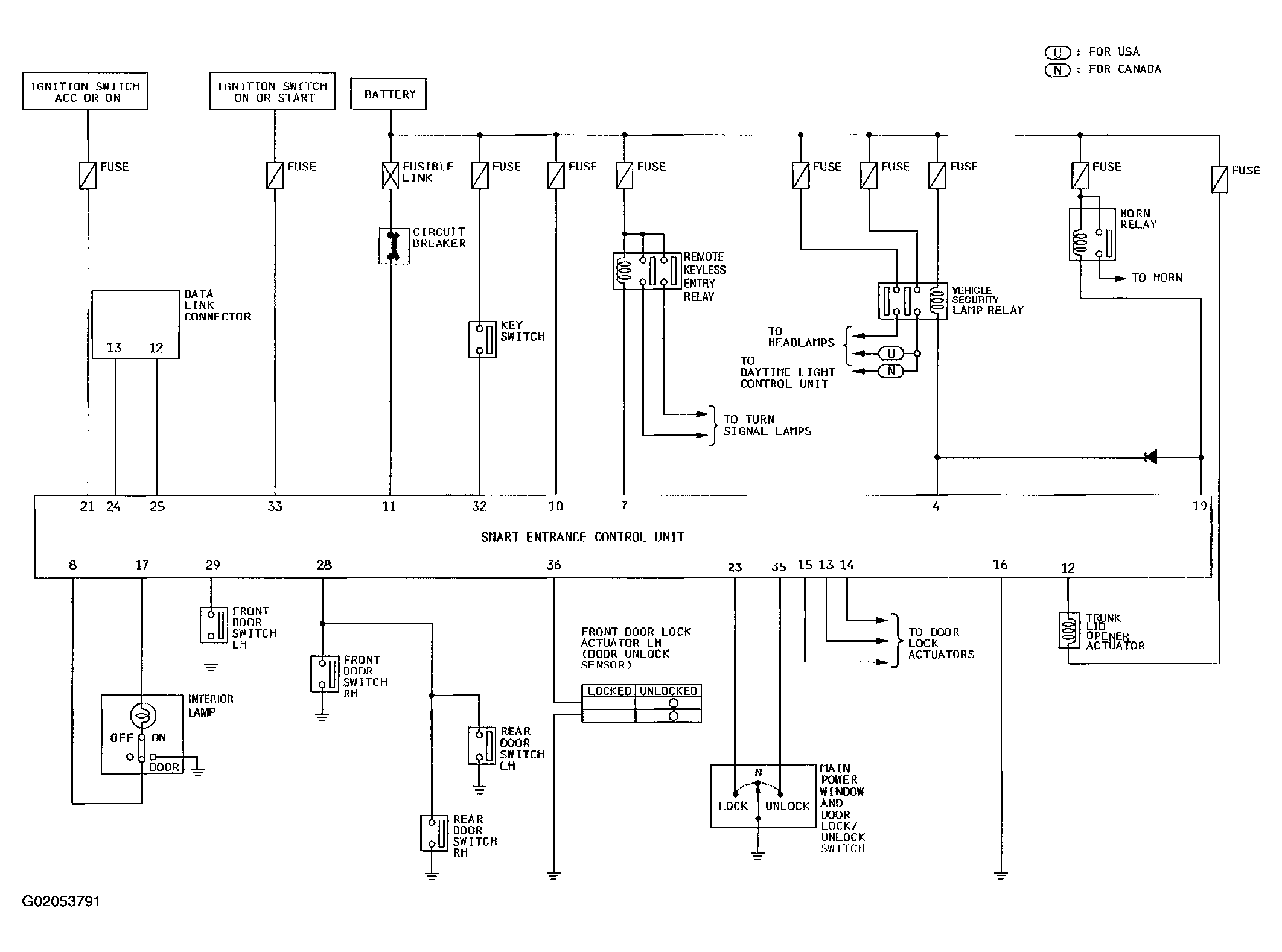

Fig 1: Identifying Remote Keyless Entry System-Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
