With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON. (Do not start engine.)
  2. Select "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-II.
  3. Start engine and let it idle for 5 second.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

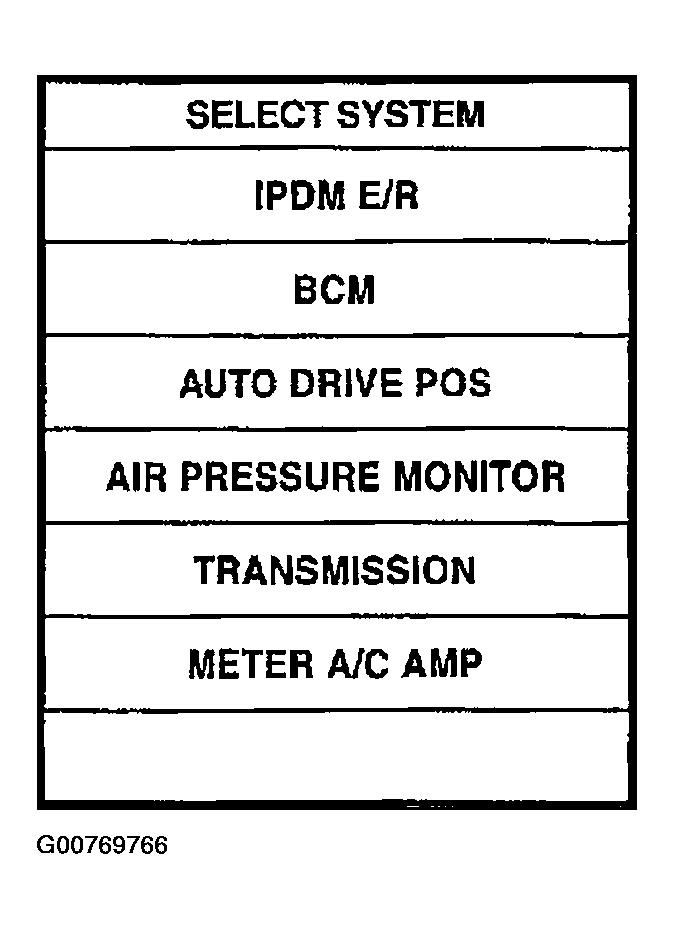

    Fig 1: DATA MONITOR - Consult II Display
    G00769766Courtesy of NISSAN MOTOR CO., U.S.A.
