Checking Disc Brake: Pad

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Check for wear or damage.

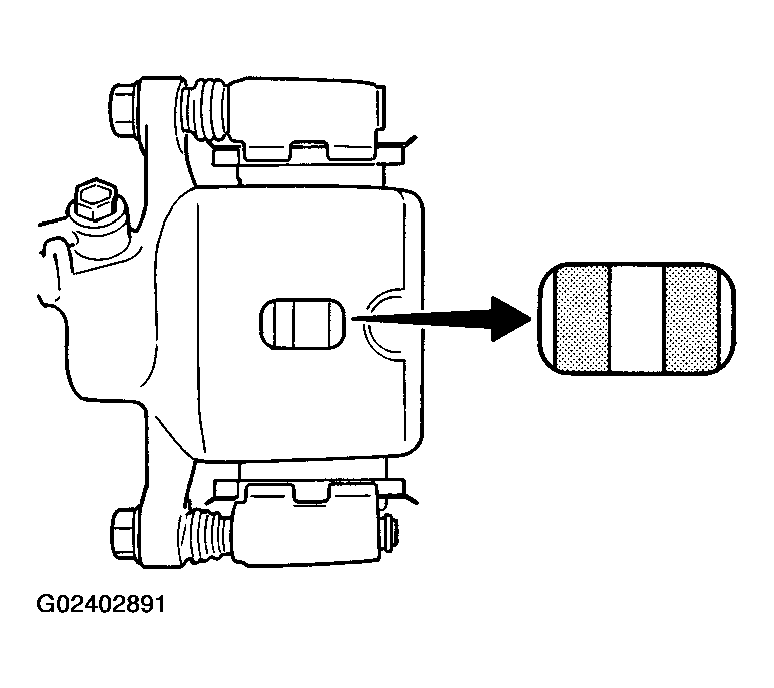

Fig 1: Checking Brake Pad
Courtesy of NISSAN MOTOR CO., U.S.A.

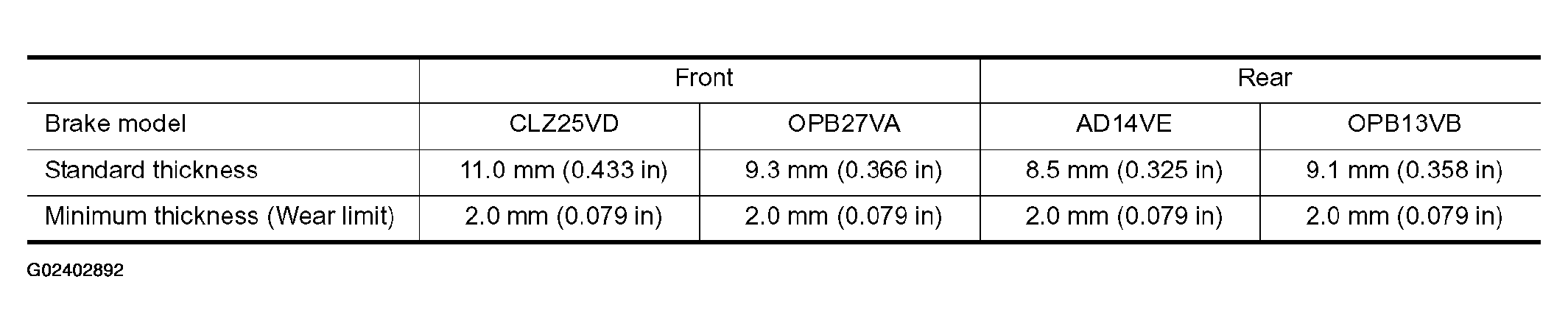

Fig 2: Brake Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
