Work Flow: Notes

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

A good understanding of the malfunction conditions can make troubleshooting faster and more accurate. In general, each customer feels differently about a malfunction. It is important to fully understand the symptoms or conditions for a customer complaint.

Make good use of Diagnostic Worksheets provided, see Figure-Information From Customer, and DIAGNOSTIC WORKSHEET , to perform the best troubleshooting possible.

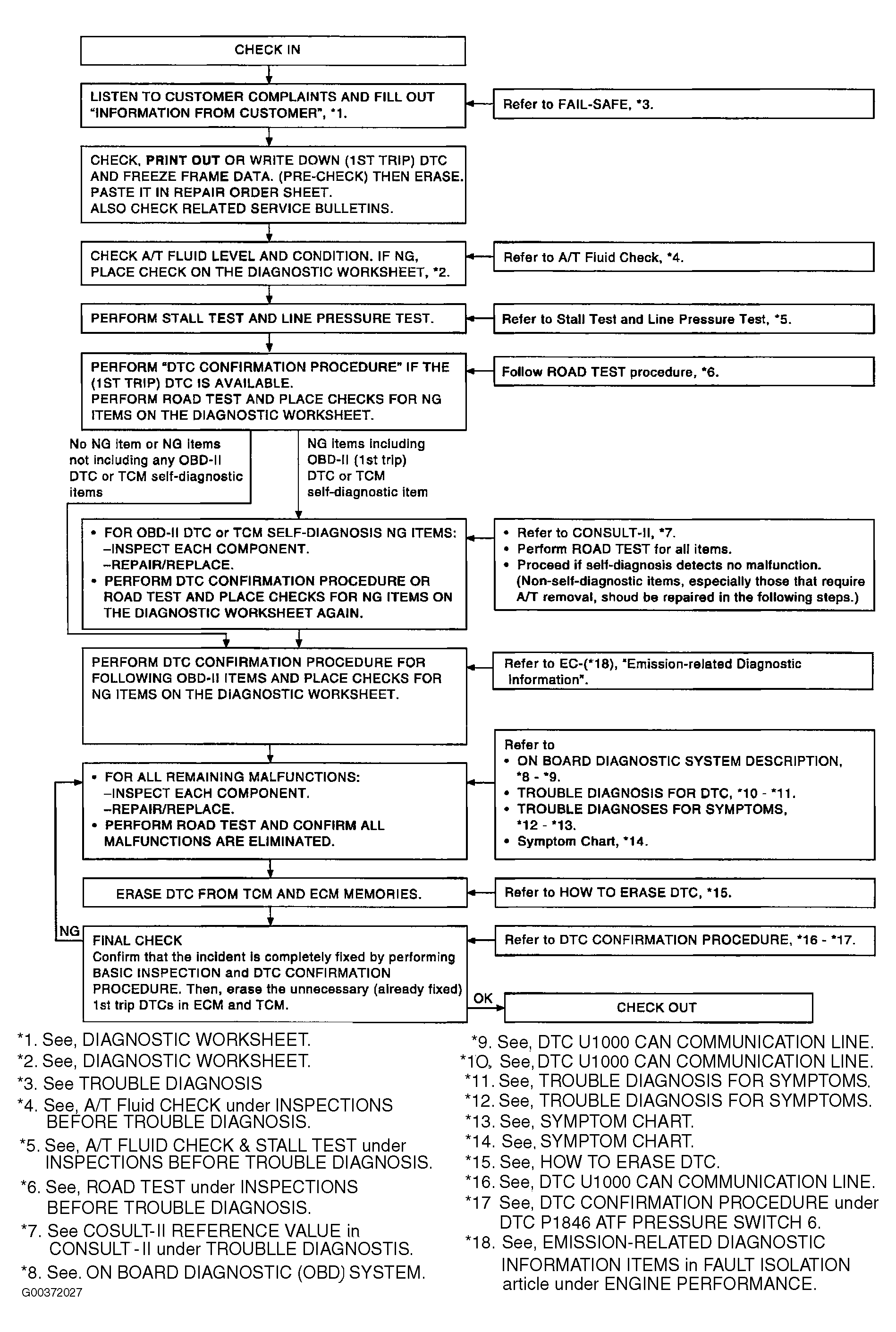

Fig 1: Work Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Work Flow Chart References Legend

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
