Assembly (For 2WD Model)

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not use mineral oils such as kerosene, gasoline during the cleaning and assembly process.
Do not drop parts. If a part is dropped, do not use it.

Apply brake fluid to a grommet, and place it into master cylinder to install.
CAUTION: Do not reuse grommet
Install reservoir tank to master cylinder.
CAUTION:
- Do not reuse reservoir tank and reservoir tank mounting pin.
- Pay attention to the orientation of reservoir tank.

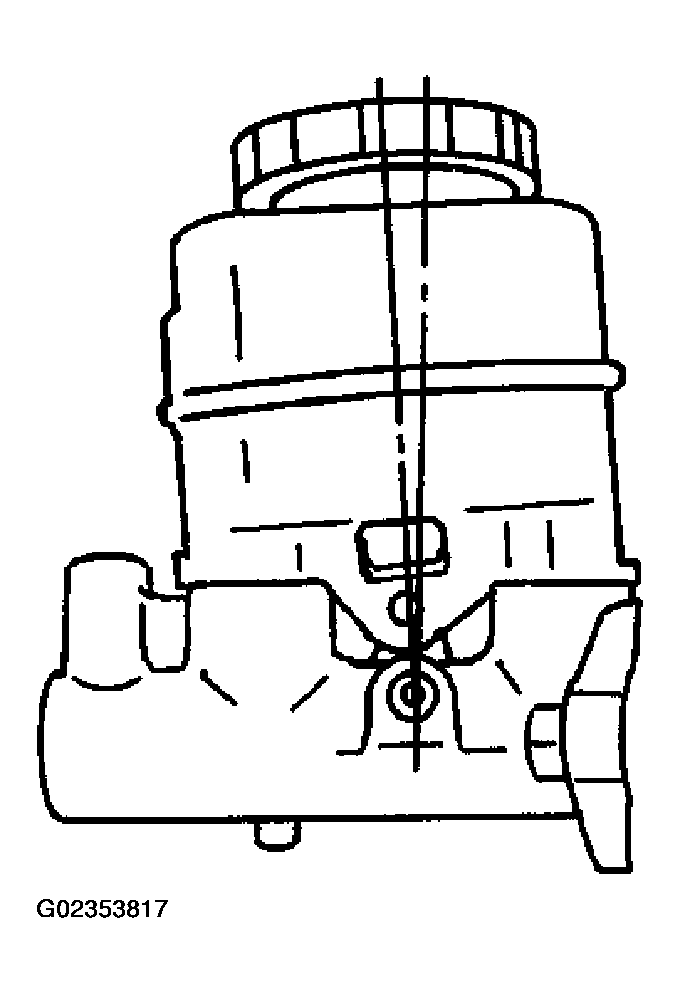

  Fig 1: Installing Reservoir Tank To Master Cylinder (For 2WD Model)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Secure flange of cylinder body as shown in Fig 2.
CAUTION:
- Using copper plate or cloth to cover flange when securing in a vise.
- When securing master cylinder assembly in a vise, be sure not to over tighten.
- Be sure to fix the flange part with the brake tube installation side of cylinder body up.

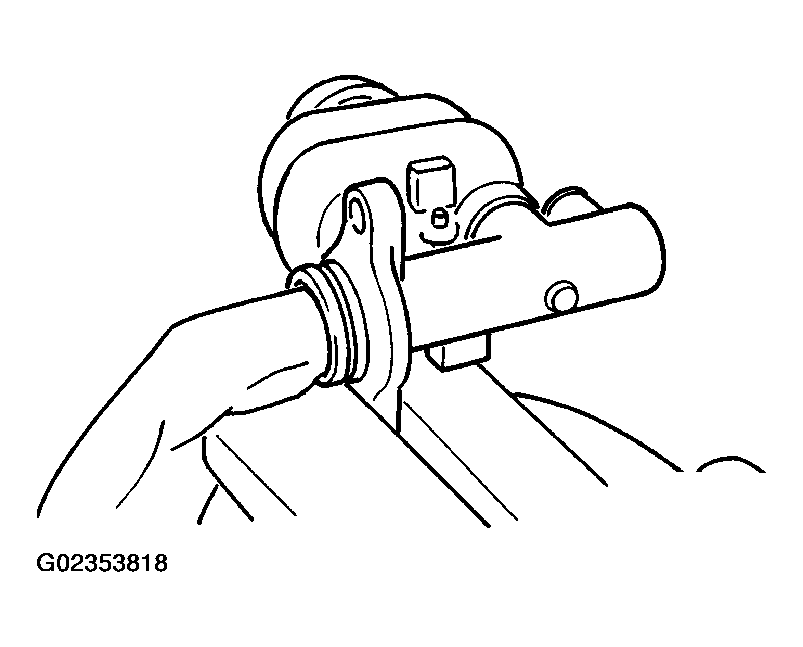

  Fig 2: Securing Flange Of Cylinder Body (For 2WD Model)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Using a pin punch [commercial service tool: diameter approx. 4 mm (0.16 in)], insert the reservoir tank mounting pin into the pin hole so that the attachment side and the opposite side are identical.

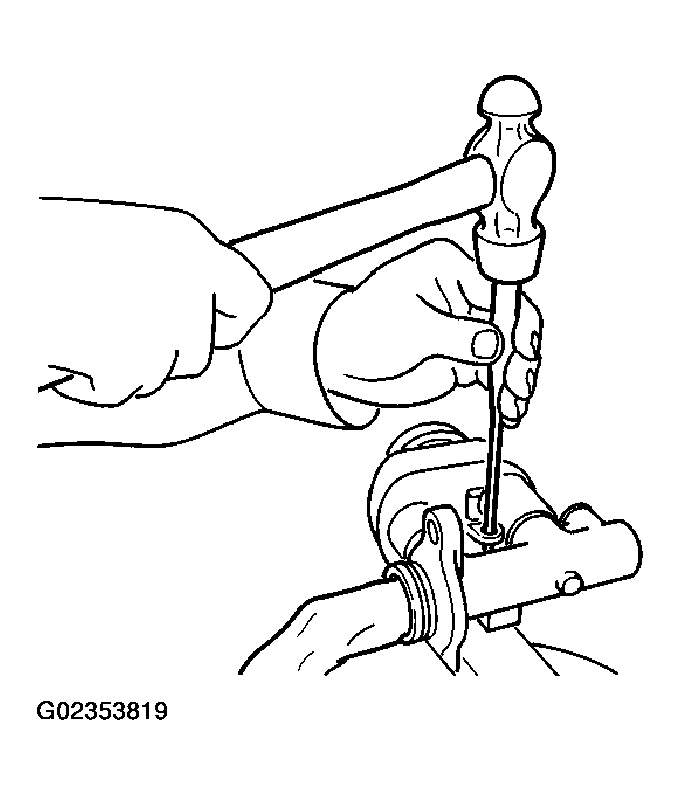

Fig 3: Inserting Reservoir Tank Mounting Pin Into Pin Hole Using A Pin Punch (For 2WD Model)
Courtesy of NISSAN MOTOR CO., U.S.A.
