Disassembly and Assembly of Brake Caliper Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove caliper assembly from vehicle. Refer to REMOVAL AND INSTALLATION OF BRAKE CALIPER ASSEMBLY .
  2. Remove sliding pin bolts from cylinder body, and remove pads, shims, shim cover and pad retainers from torque member.
    CAUTION: When removing pad retainer from torque member, lift the pad retainer in the direction shown by arrow (shown in Fig 1) so as not to deform it.
    Fig 1: Removing Pads, Shims, Shim Cover And Pad Retainers From Torque Member
    G02353846Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove sliding pins and sliding pin boots from torque member.
  4. Place a wooden block as shown in Fig 2, and blow air from union bolt mounting hole to remove pistons and piston boots.

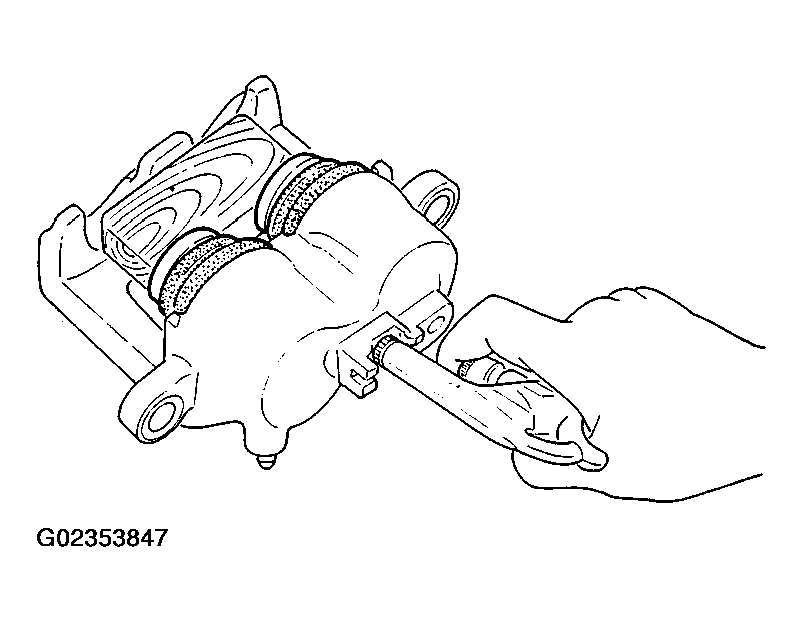

    Fig 2: Removing Pistons From Caliper
    G02353847Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Using a flat-bladed screwdriver, remove piston seals from cylinder body.
    CAUTION: Be careful not to damage the inner wall of cylinder

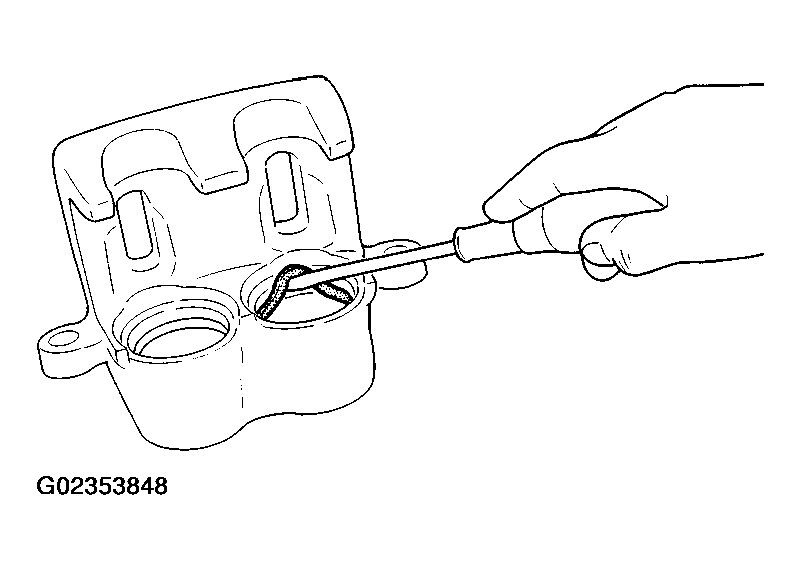

    Fig 3: Removing Piston Seals From Cylinder Body Using A Flat-Bladed Screwdriver
    G02353848Courtesy of NISSAN MOTOR CO., U.S.A.


  1. Remove caliper assembly from vehicle. Refer to REMOVAL AND INSTALLATION OF BRAKE CALIPER ASSEMBLY .
  2. Remove sliding pin bolts from cylinder body, and remove pads, shims, shim cover and pad retainer from torque member.
    CAUTION: When removing pad retainer from torque member, lift the pad retainer in the direction shown by arrow (shown in Fig 1) so as not to deform it

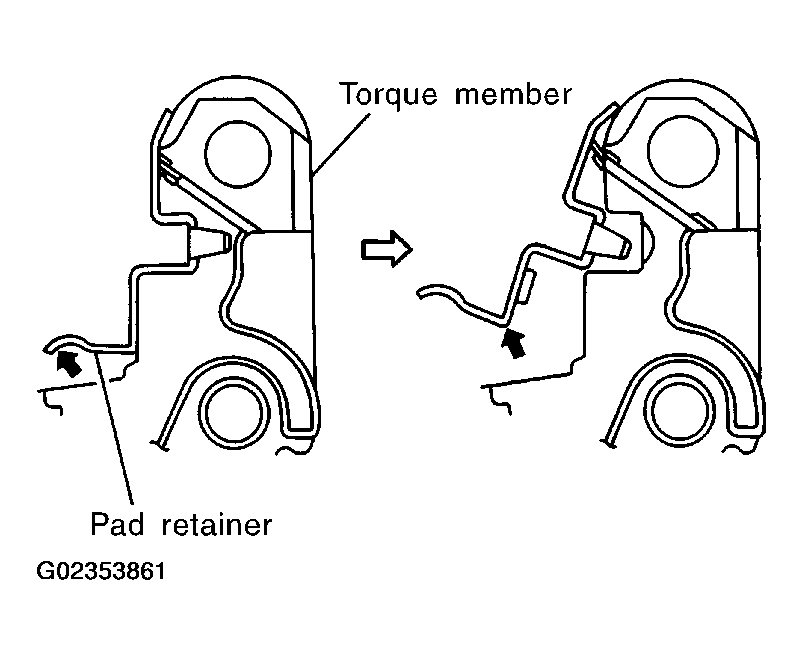

    Fig 1: Removing Pad Retainer From Torque Member
    G02353861Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove sliding pins and sliding pin boots from torque member.
  4. Place a wooden block as shown in Fig 2, and blow air from union bolt mounting hole to remove pistons and piston boots.

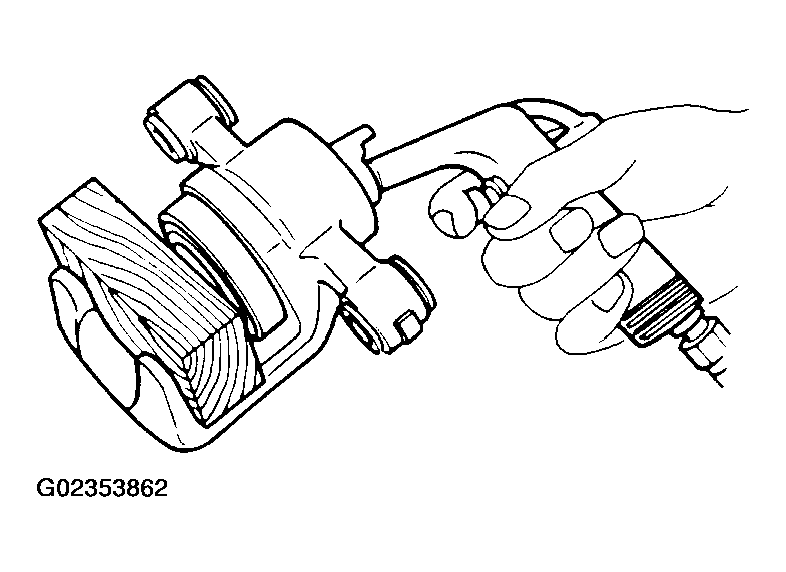

    Fig 2: Removing Pistons And Piston Boots Using Compressed Air
    G02353862Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Using a flat-bladed screwdriver, remove piston seals from cylinder body.
    CAUTION: Be careful not to damage the inner wall of cylinder

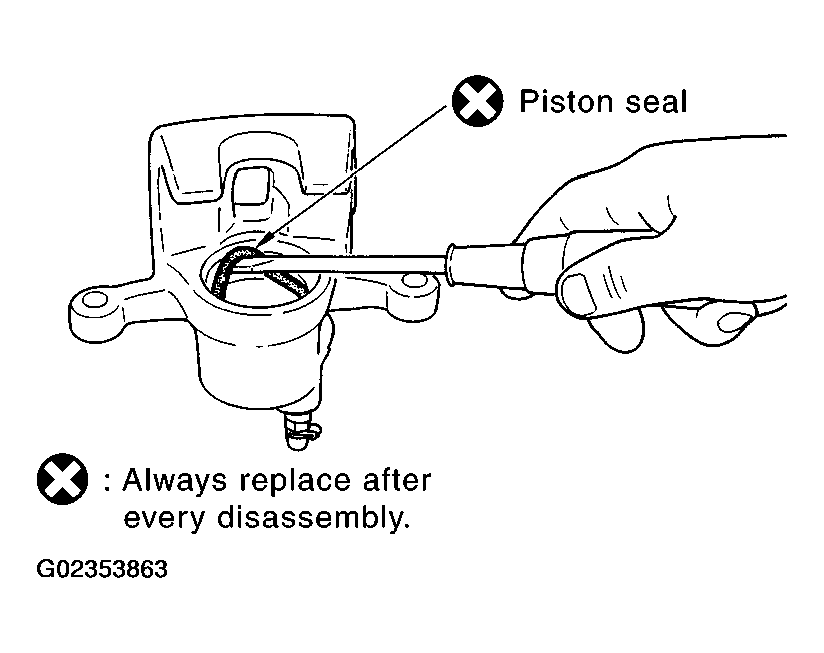

    Fig 3: Removing Piston Seals From Cylinder Body Using A Flat-Bladed Screwdriver
    G02353863Courtesy of NISSAN MOTOR CO., U.S.A.
