A/T Fluid Temperature Sensor

WARNING: This page is about a different variant/trim than selected.

Refer to REMOVAL .
Check resistance between two terminals while changing temperature. See Fig 2

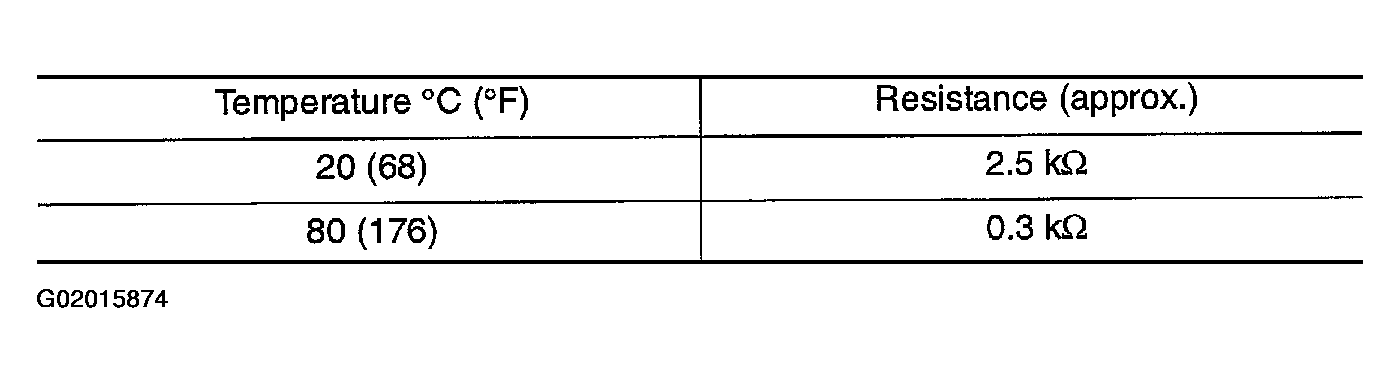

Fig 1: Automatic Transaxle Fluid Temperature Sensor Resistance Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

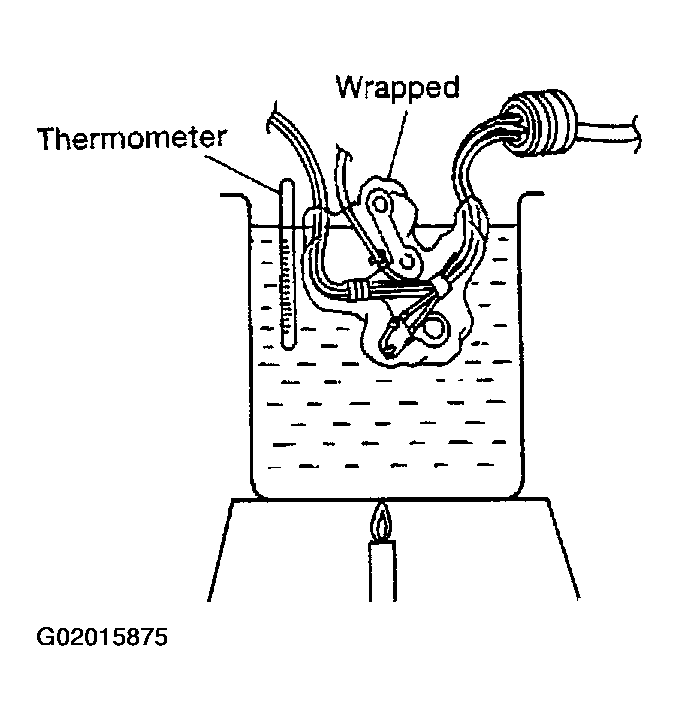

Fig 2: Checking Resistance Between Automatic Transaxle Fluid Temperature Sensor Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
