Diagnostic Trouble Code (DTC) Confirmation Procedure

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

1. Start engine.
2. Select DATA MONITOR mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:

   Selector lever in D , vehicle speed higher than 20 km/h (12 MPH).

Without CONSULT-II

1. Start engine.

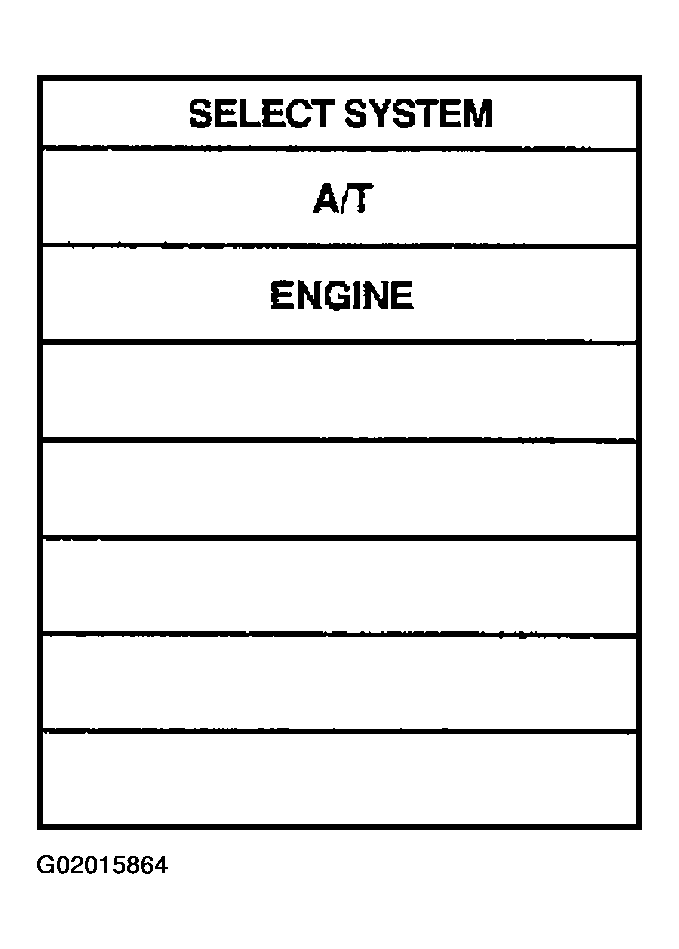

   Fig 1: DTC Confirmation Procedure With CONSULT -II (1 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Drive vehicle under the following conditions:

   Selector lever in D , vehicle speed higher than 20 km/h (12 MPH).

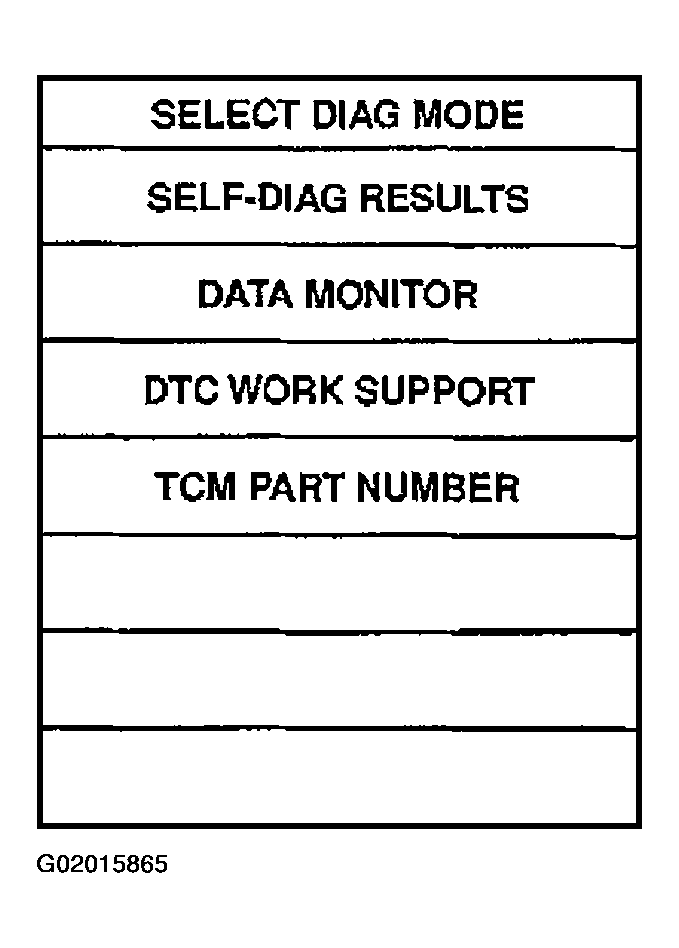

   Fig 2: DTC Confirmation Procedure With CONSULT -II (2 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Perform self-diagnosis.

   Refer to TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) .

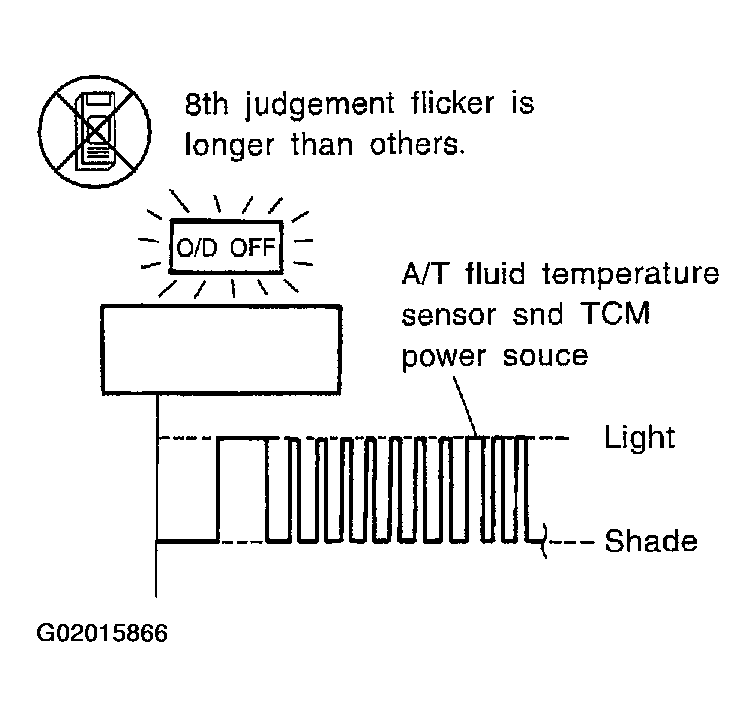

   Fig 3: DTC Confirmation Procedure Without CONSULT -II

   Courtesy of NISSAN MOTOR CO., U.S.A.
