Operation Check
WARNING:
This page is about a different variant/trim than selected.
Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal and ground.

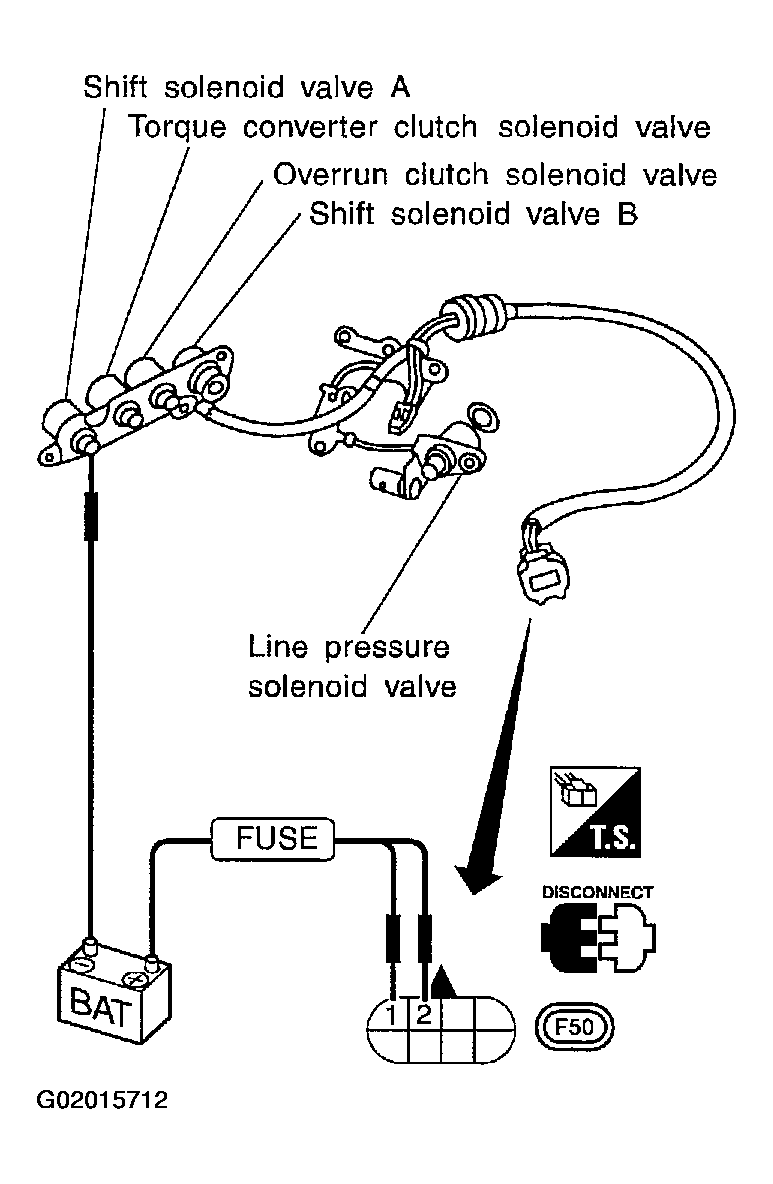

Fig 1: Checking Solenoid Valve Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
