Closed Throttle Position Switch (Idle position)

WARNING: This page is about a different variant/trim than selected.

Check continuity between terminals 5 and 6.
Refer to TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) .

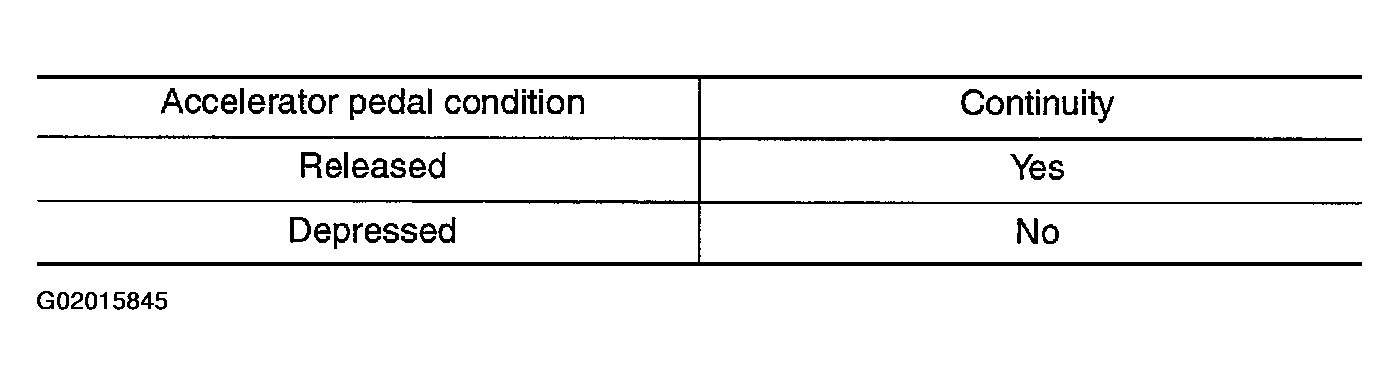

Fig 1: Closed Throttle Position Switch Continuity Specifications (Idle Position)
Courtesy of NISSAN MOTOR CO., U.S.A.

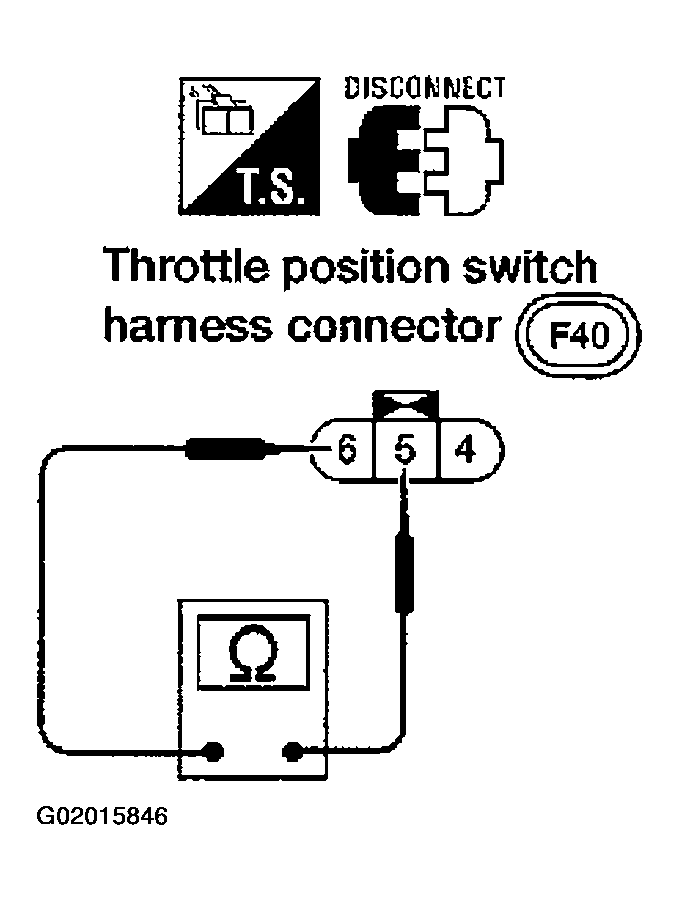

Fig 2: Checking Closed Throttle Position Switch Continuity (Idle Position)
Courtesy of NISSAN MOTOR CO., U.S.A.
To adjust closed throttle position switch, refer to DTC P0510: CLOSED THROTTLE POSITION SWITCH/CIRCUIT , or DTC P0510: CLOSED THROTTLE POSITION (TP) SWITCH/CIRCUIT .
