Cylinder Block: Components

WARNING: This page is about a different variant/trim than selected.

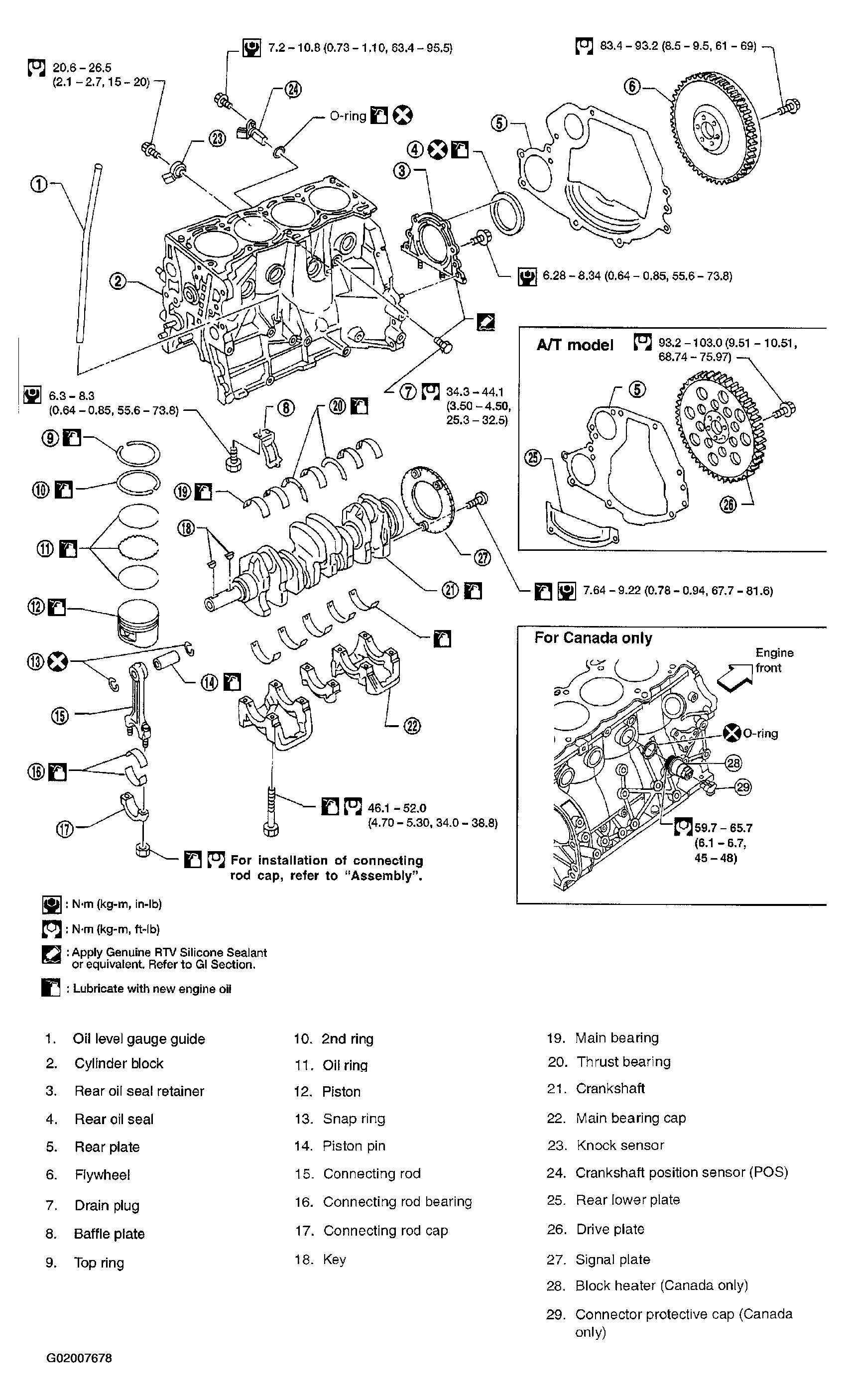

Fig 1: Identifying Cylinder Block Components
G02007678Courtesy of NISSAN MOTOR CO., U.S.A.
