Reference Value From Consult-II
CAUTION:
The display shows the control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short-circuited.

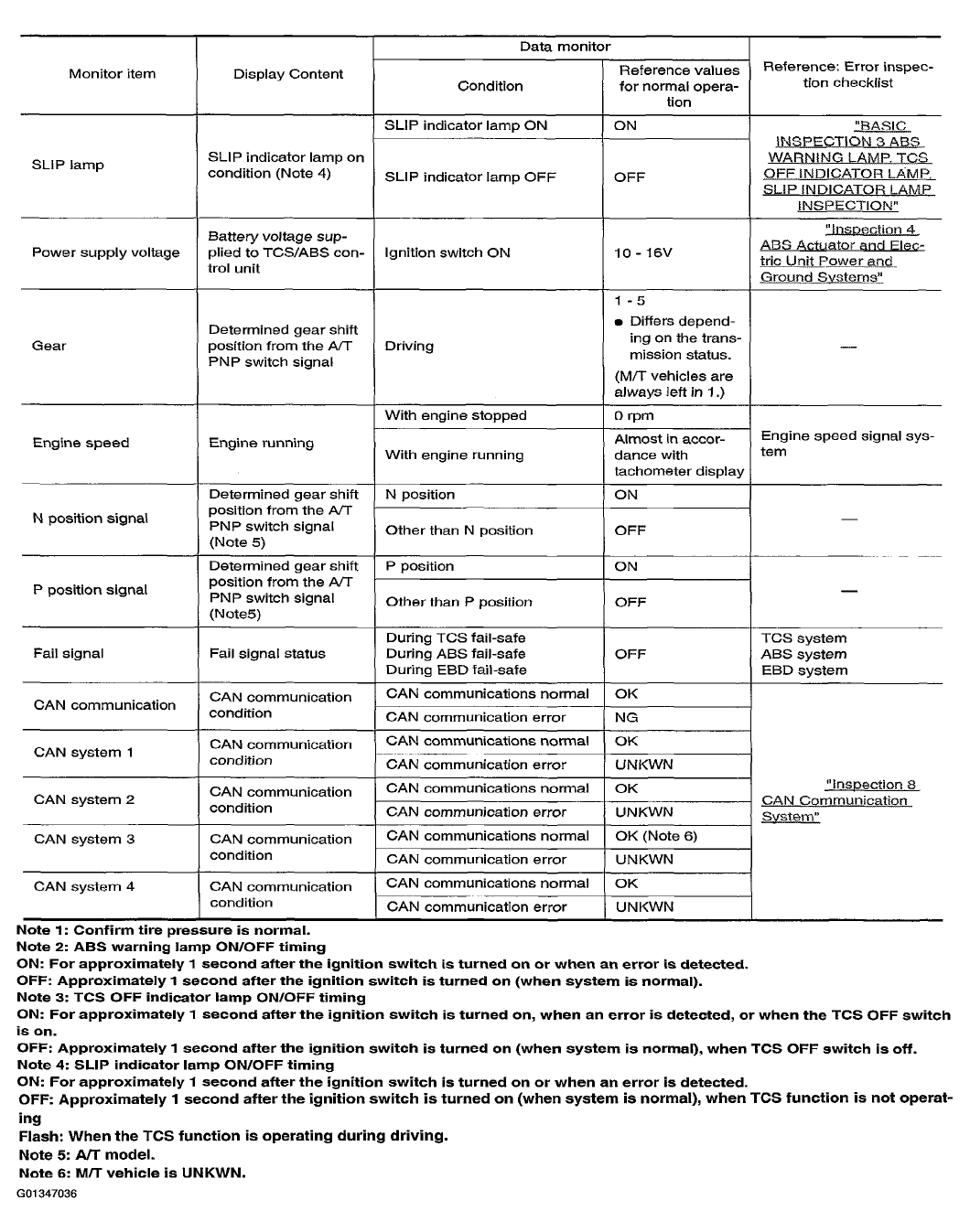

Fig 1: Reference Value From CONSULT-II (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Reference Value From CONSULT-II (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
