Section 190 (Automatic Speed Control Device)
>>
Automatic Speed Control Device (ASCD)
>>
Fail-Safe System
>>
Malfunction Detection Conditions
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Malfunction Detection Conditions
WARNING:
This page is about a different car, the 2004 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

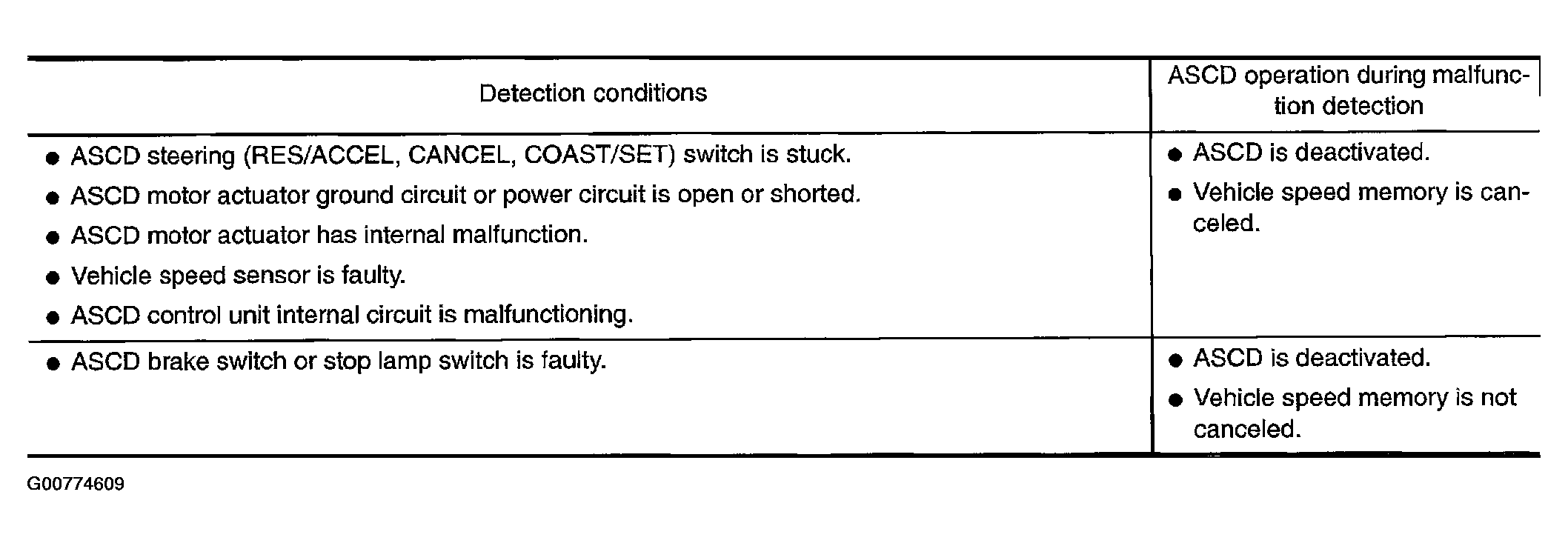

Fig 1: Malfunction Detection Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
