1. Check ASCD Steering Switch Circuit For ASCD Control Unit

WARNING: This page is about a different car, the 2004 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between ASCD control unit harness connector M119 terminals 11 (G/OR) and 24 (LG/B).

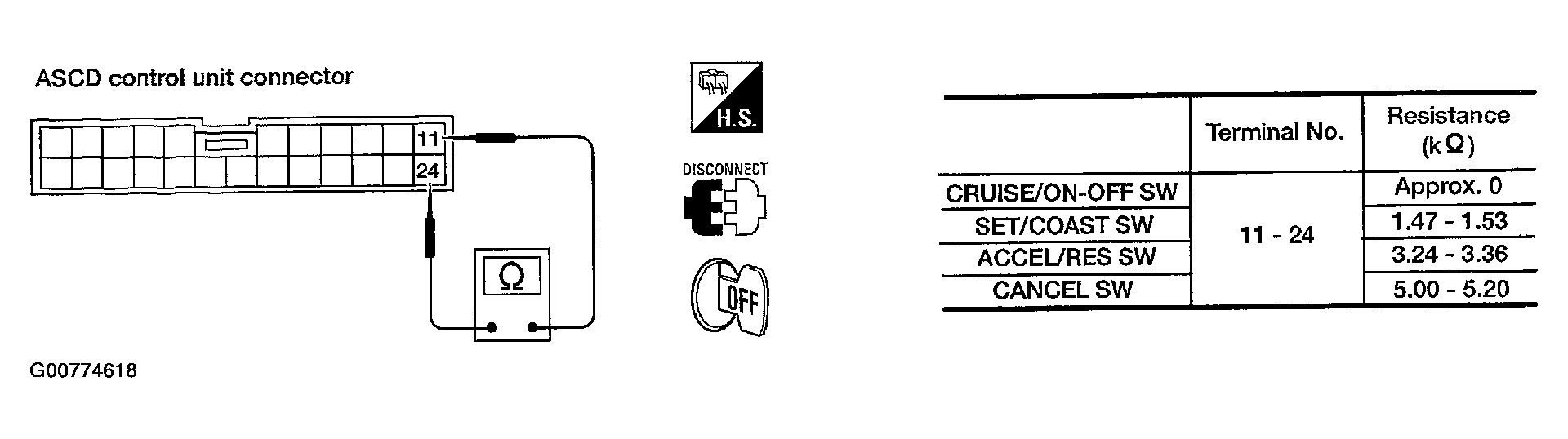

Fig 1: Checking ASCD Steering Switch Circuit for ASCD Control Unit
G00774618Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to WIRING DIAGRAMS - ASCD  .

OK or NG

  1. OK: ASCD steering switch is OK.
  2. NG: GO TO 2  .
