Front Wheel Sensor

CAUTION: Be careful not to damage sensor edge and sensor rotor teeth. When removing the front or rear wheel hub assembly, disconnect the ABS wheel sensor from the assembly and move it away.

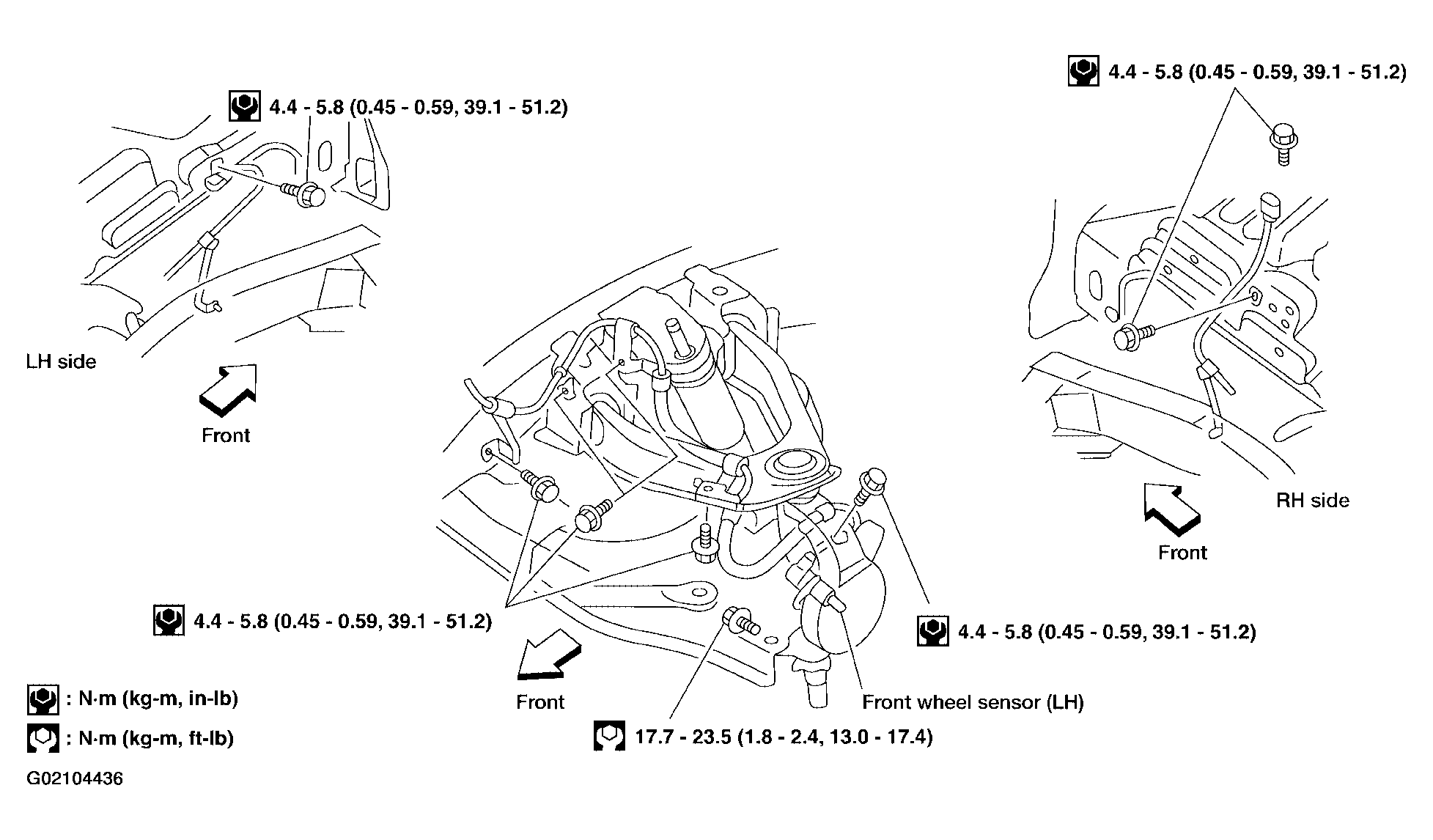

Fig 1: Front Wheel Sensor And Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
