Electrical Load Signal: Pathfinder

For electrical load signal circuit diagnosis, see Fig 1-Fig 5 . For rear window defogger circuit check, see appropriate REAR WINDOW DEFOGGERS article in ACCESSORIES & EQUIPMENT. If problem is intermittent, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For engine control system component locations, see Figure-Figure . For ECM location, connector and terminal view, see Figure. For removal and installation of components, see appropriate REMOVAL & INSTALLATION article.

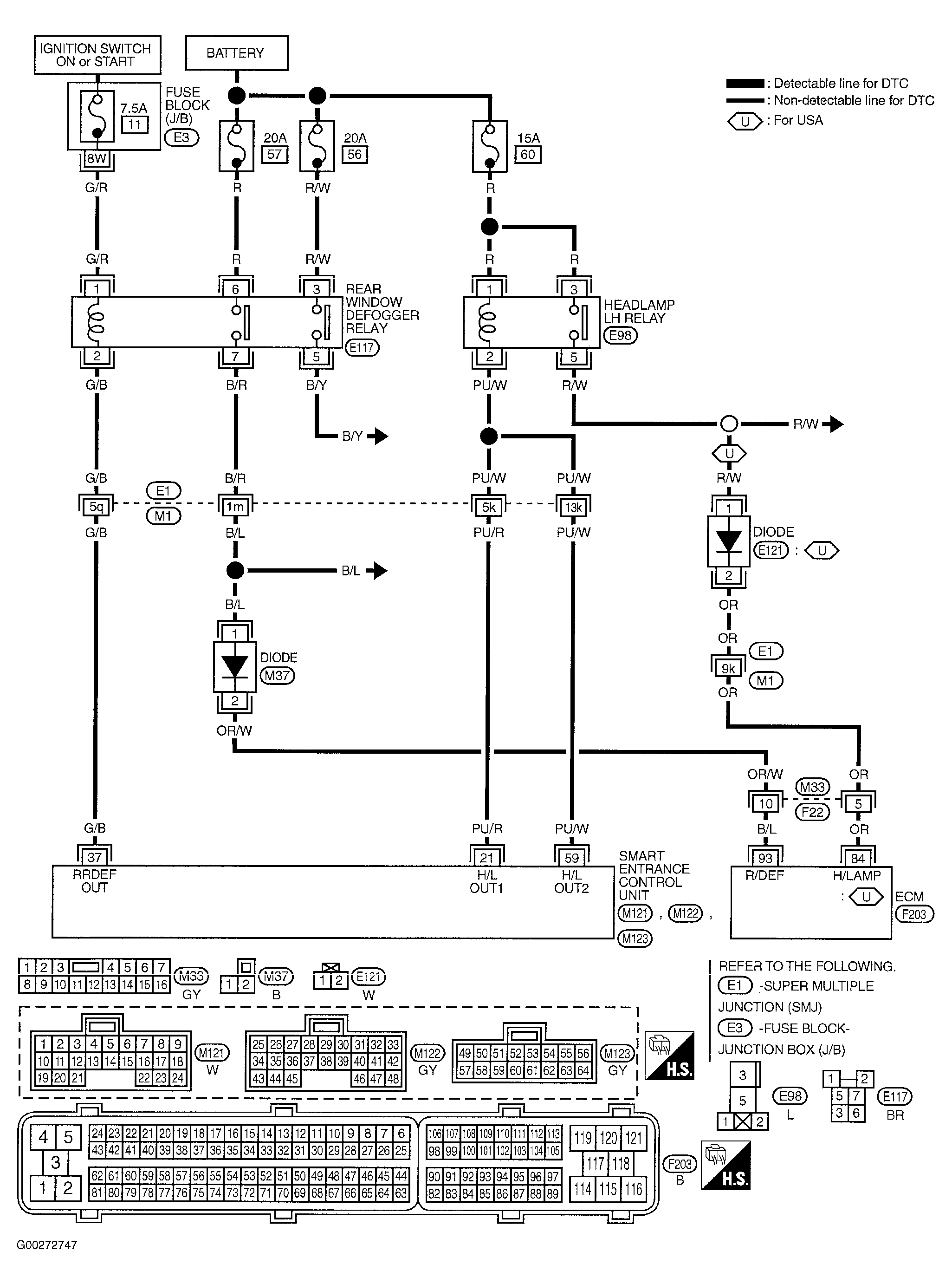

Fig 1: Electrical Load Signal Circuit System & Component Testing Procedure (Pathfinder - 1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

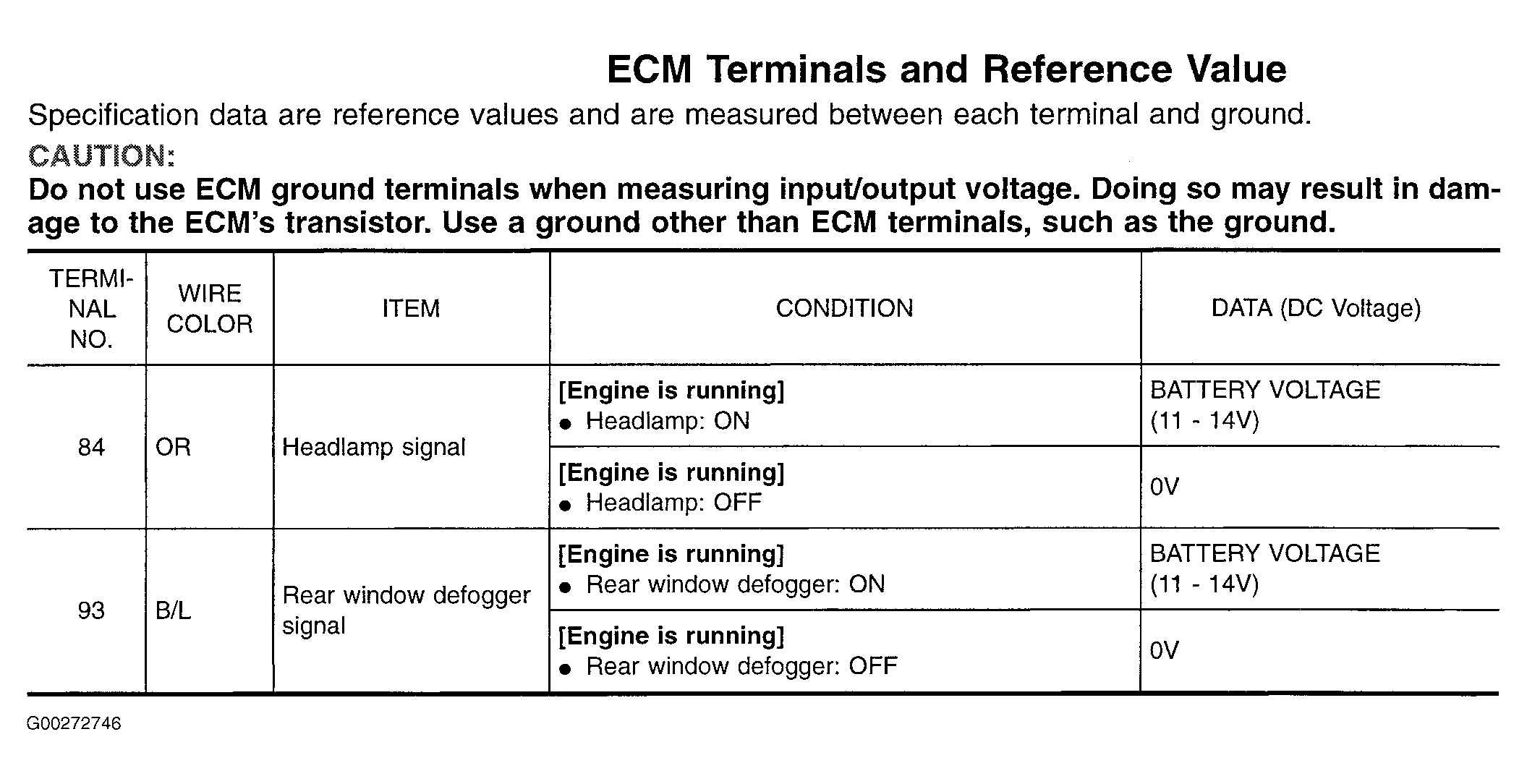

Fig 2: Electrical Load Signal Circuit System & Component Testing Procedure (Pathfinder - 2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

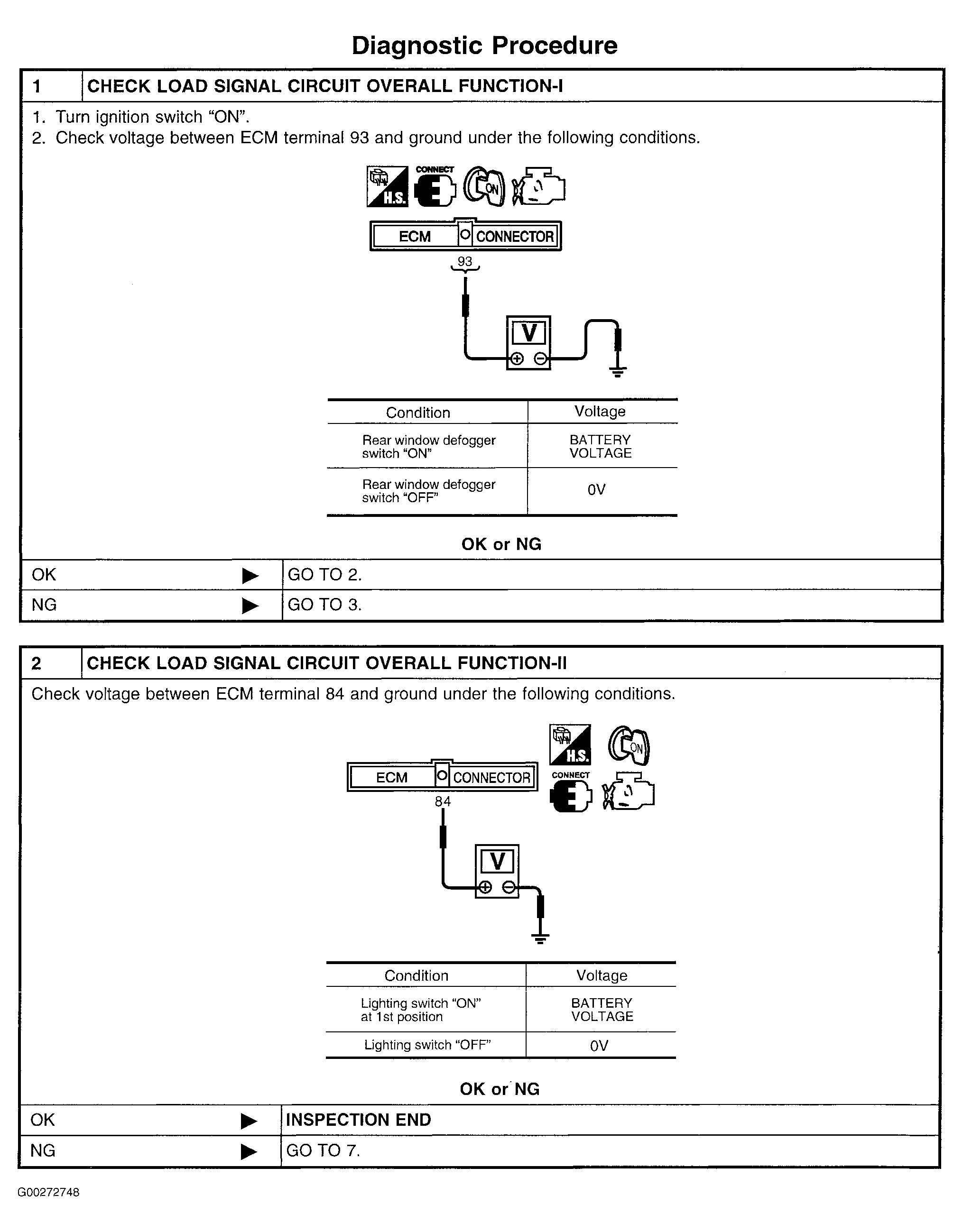

Fig 3: Electrical Load Signal Circuit System & Component Testing Procedure (Pathfinder - 3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

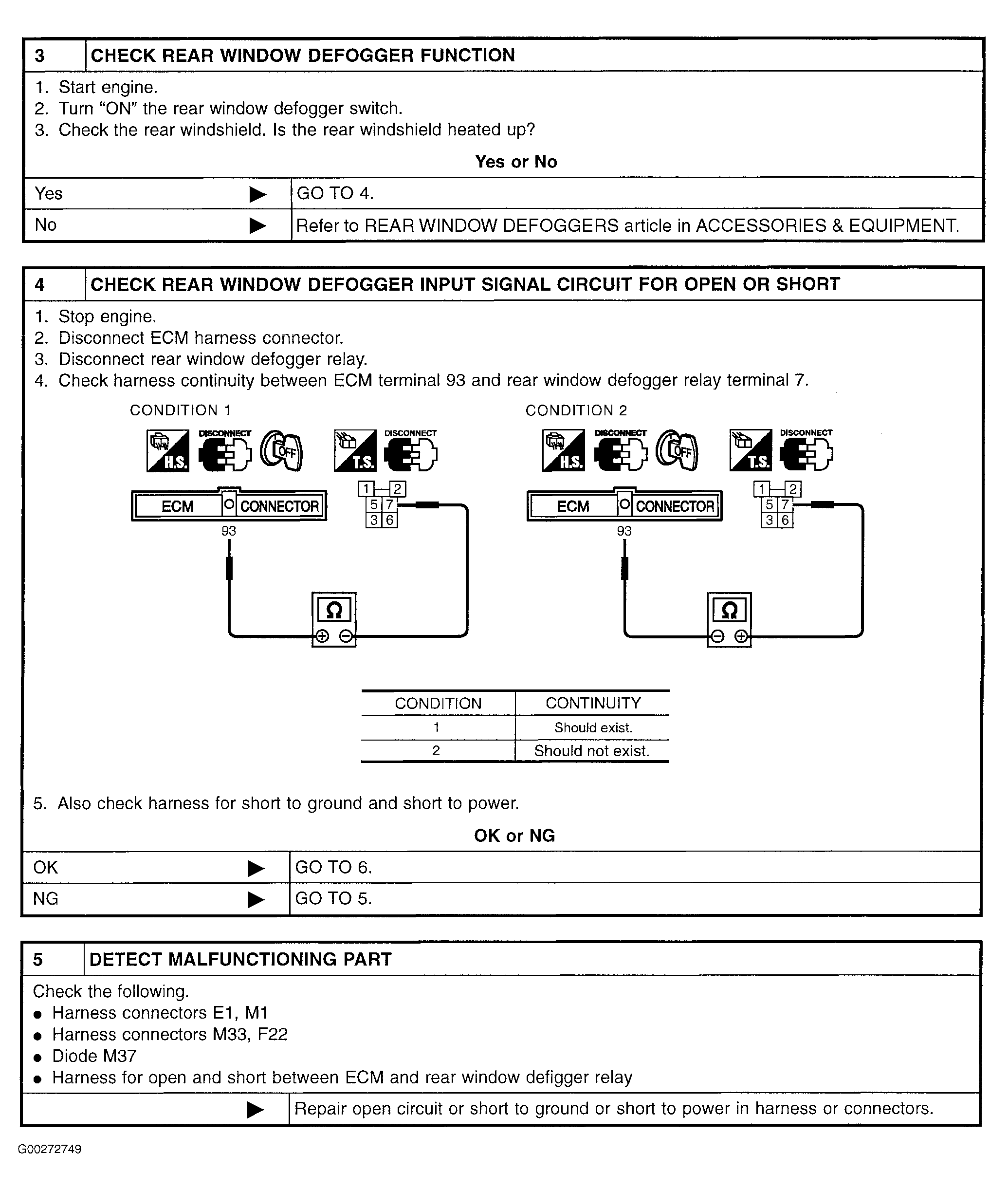

Fig 4: Electrical Load Signal Circuit System & Component Testing Procedure (Pathfinder - 4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

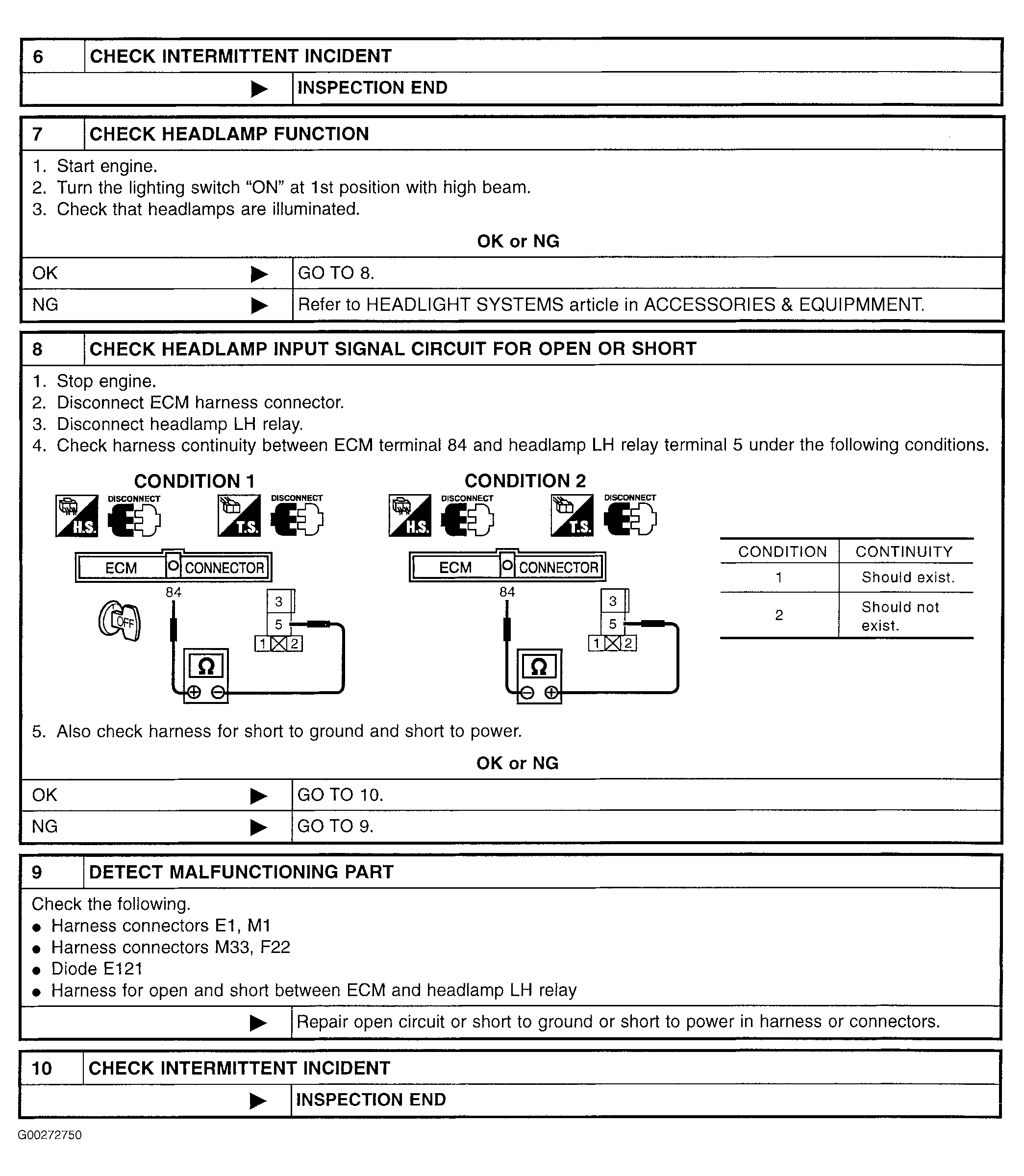

Fig 5: Electrical Load Signal Circuit System & Component Testing Procedure (Pathfinder - 5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
