Power & Ground Circuits (350Z)

For ECM power and ground circuit wiring diagram and diagnostic procedure, see Fig 1-Fig 8 . If no problem is found, check ignition signal circuit. See IGNITION SIGNAL CIRCUITS  under IGNITION SYSTEM. For intermittent diagnosis, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For engine control system component locations, see Figure-Figure . For ECM location, connector and terminal view, see Fig 9. For removal and installation of components, see appropriate REMOVAL & INSTALLATION article.

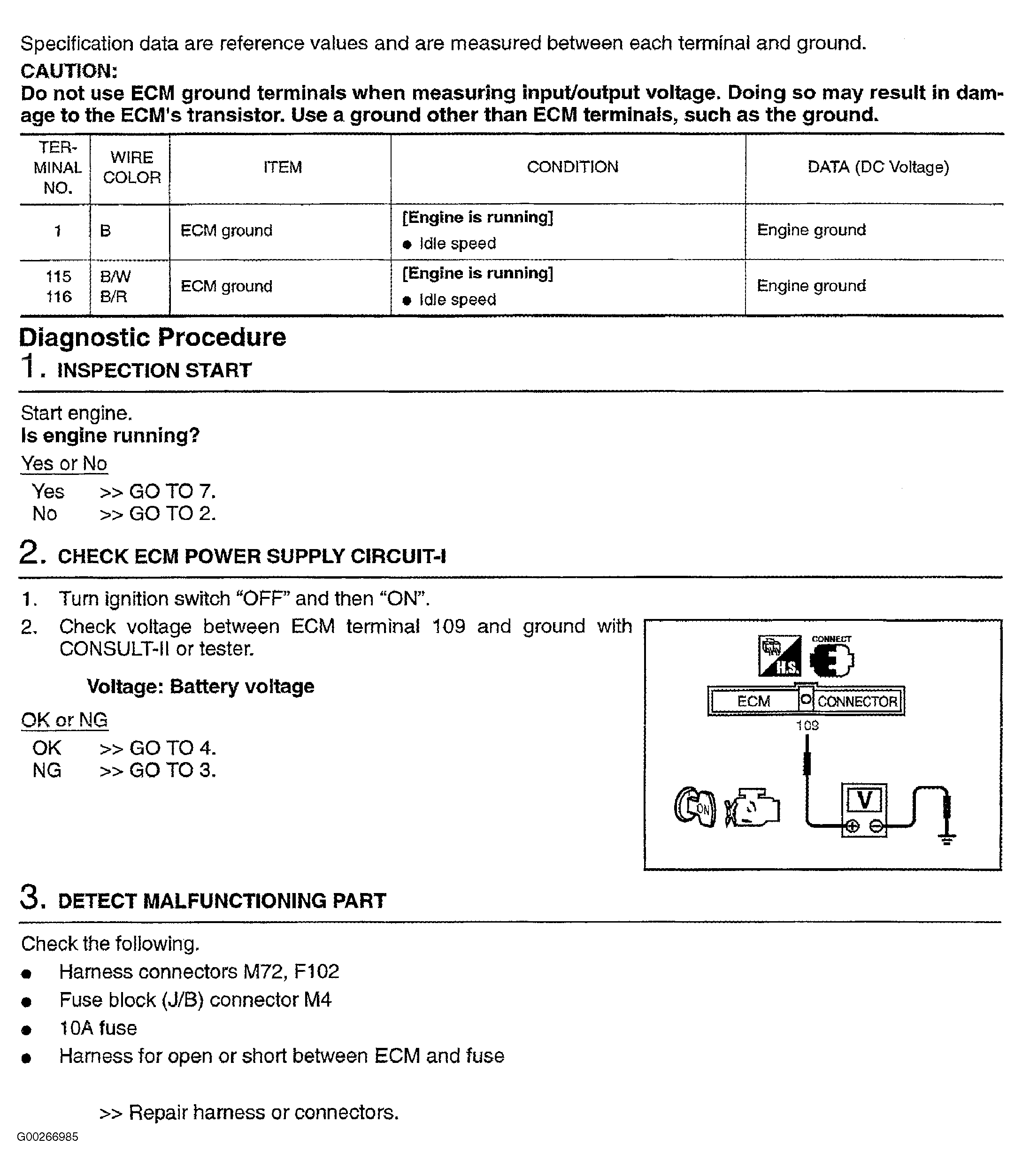

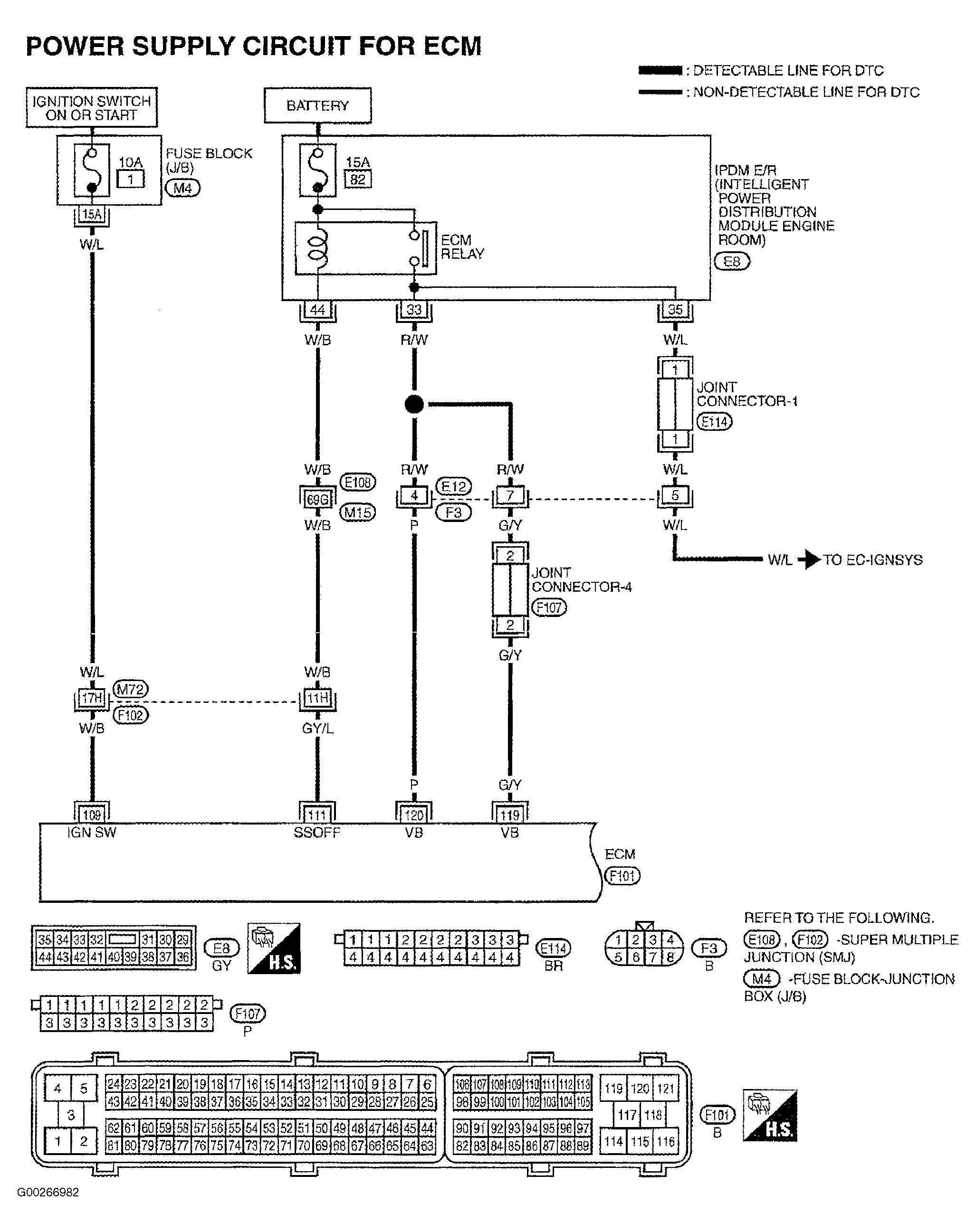

Fig 1: ECM Power Supply Circuit Diagnostic Procedure (350Z - 1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

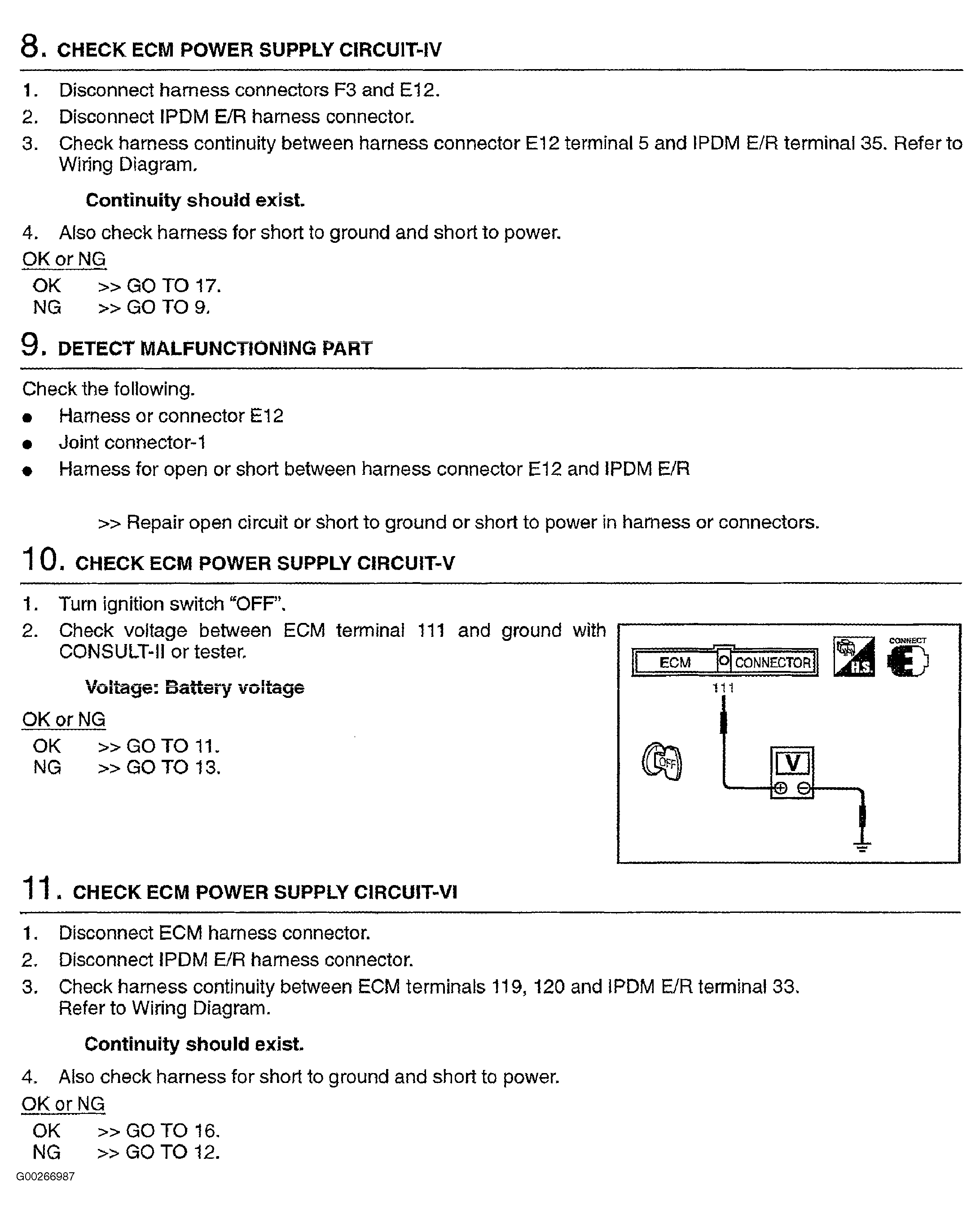

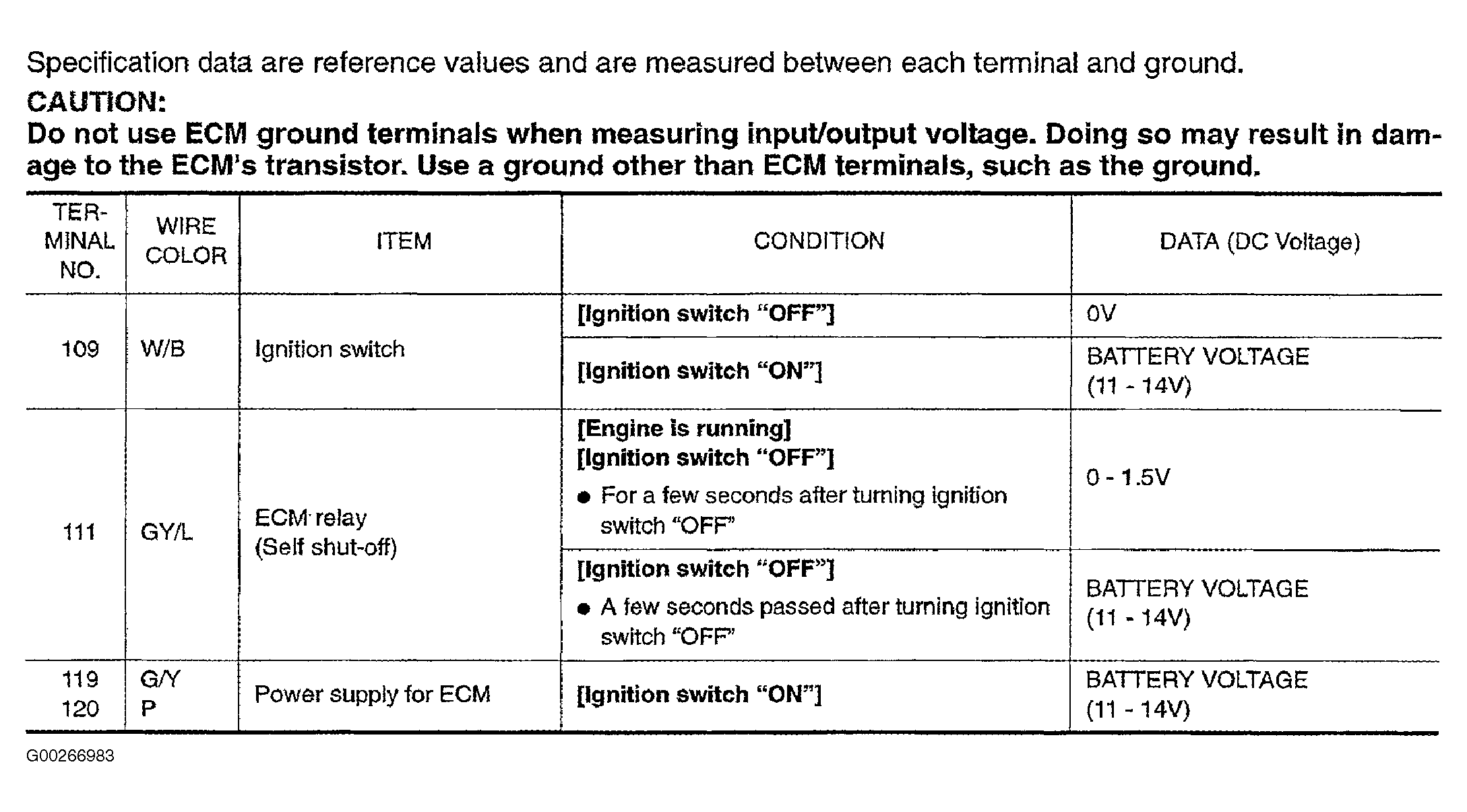

Fig 2: ECM Power Supply Circuit Diagnostic Procedure (350Z - 2 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

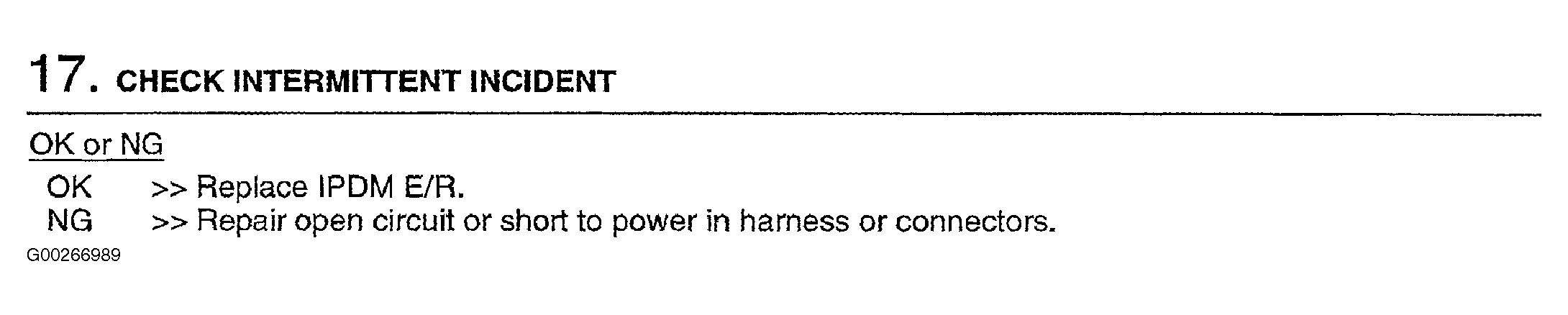

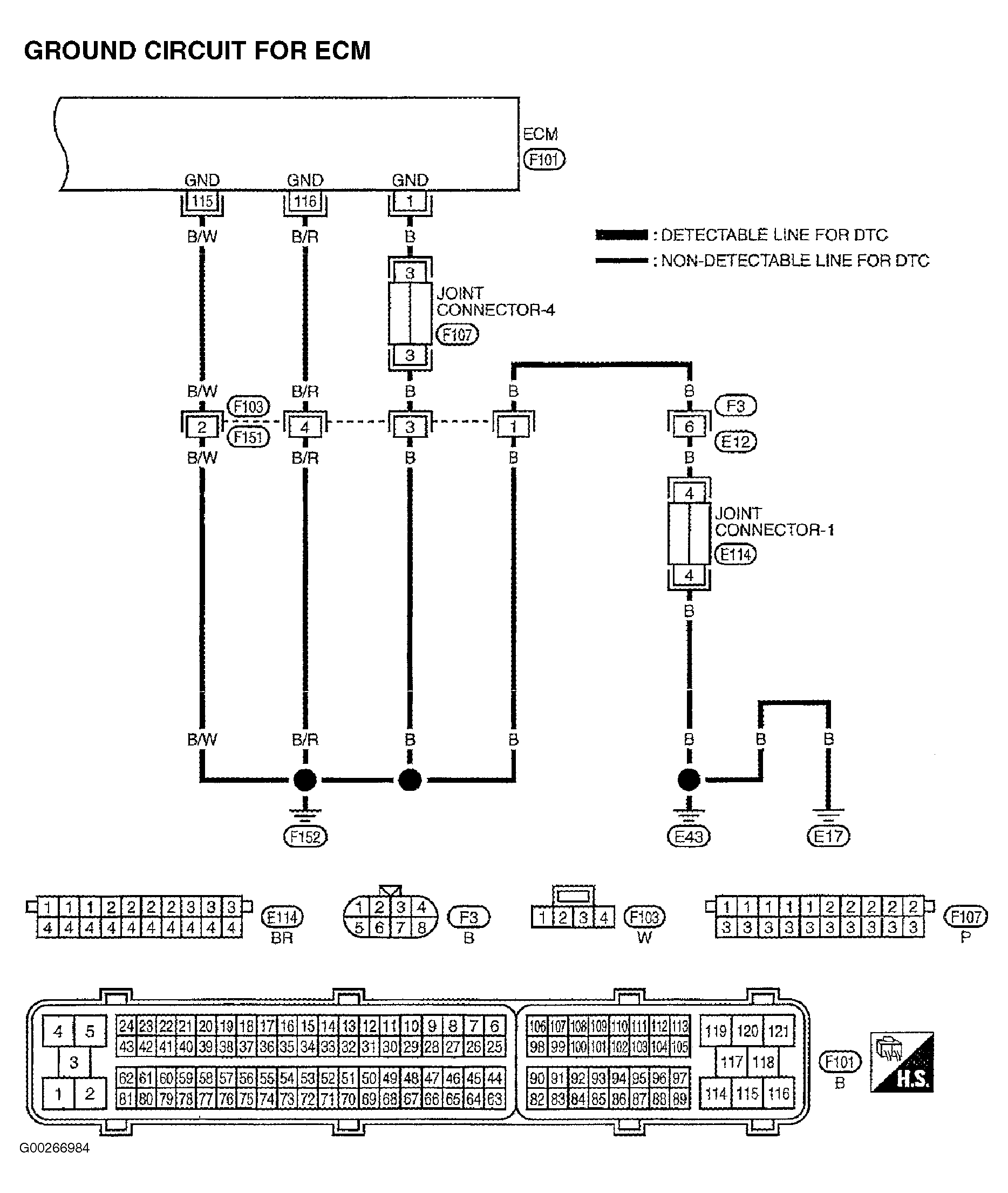

Fig 3: ECM Power Supply Circuit Diagnostic Procedure (350Z - 3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: ECM Power Supply Circuit Diagnostic Procedure (350Z - 4 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

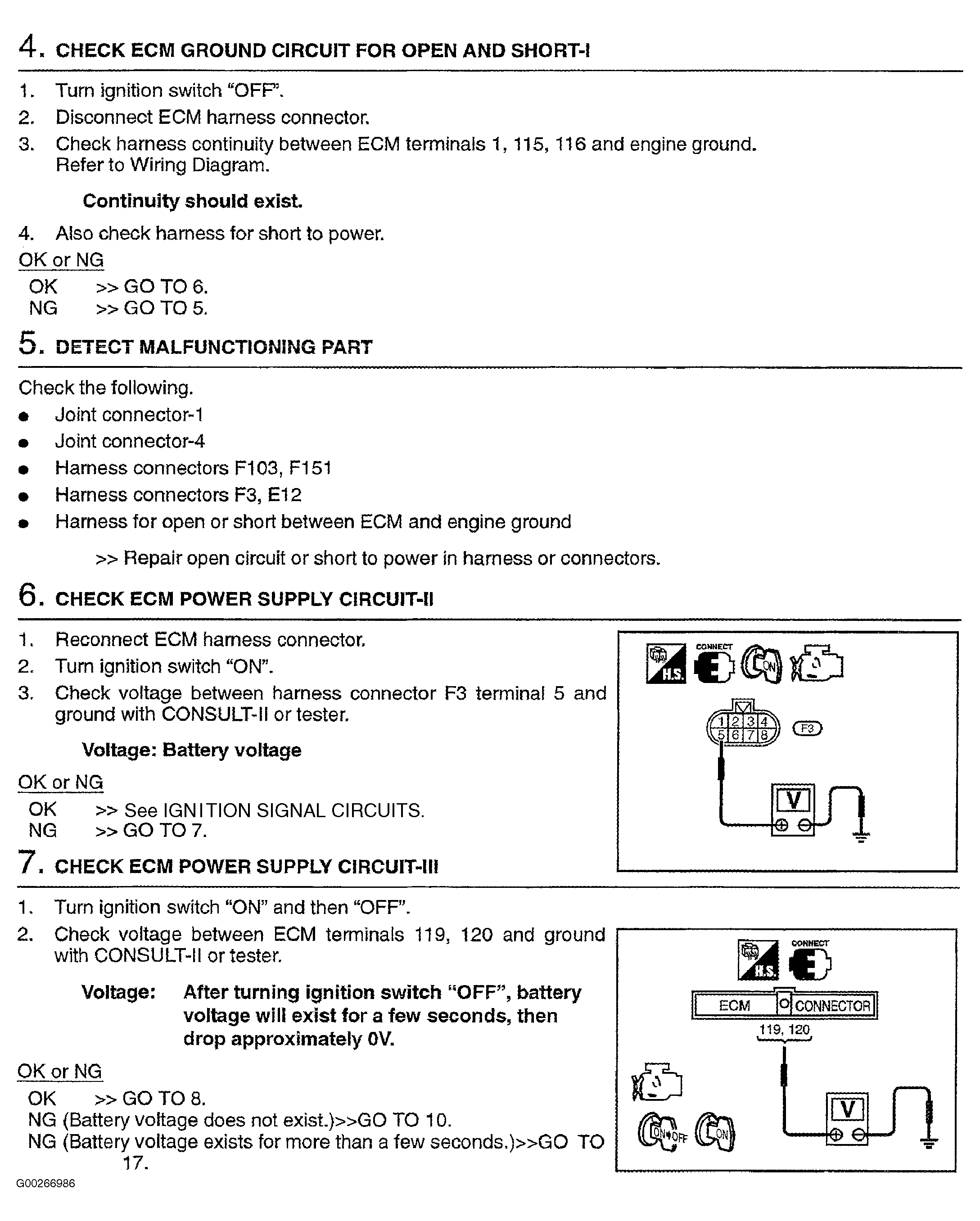

Fig 5: ECM Power Supply Circuit Diagnostic Procedure (350Z - 5 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: ECM Power Supply Circuit Diagnostic Procedure (350Z - 6 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

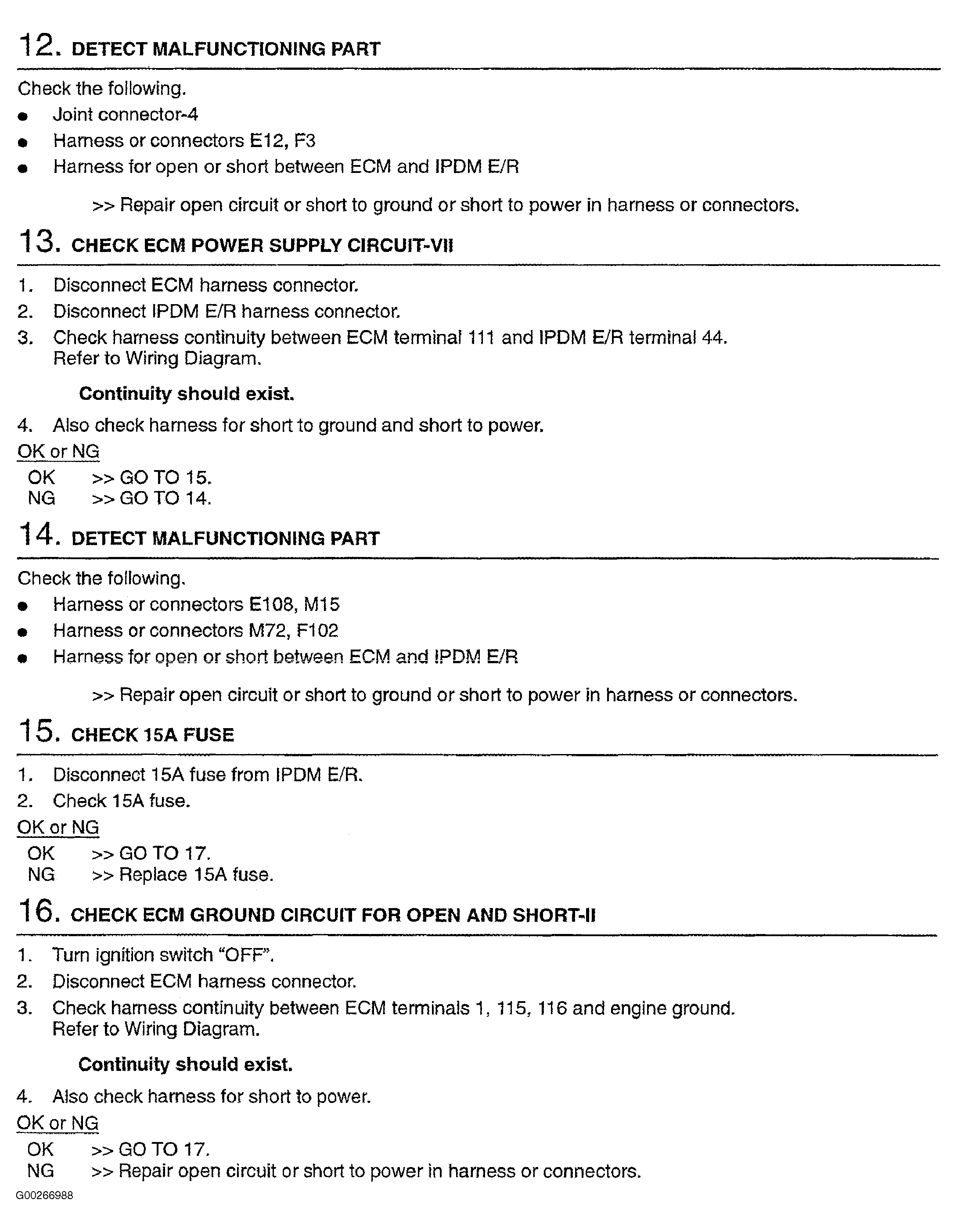

Fig 7: ECM Power Supply Circuit Diagnostic Procedure (350Z - 7 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: ECM Power Supply Circuit Diagnostic Procedure (350Z - 8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

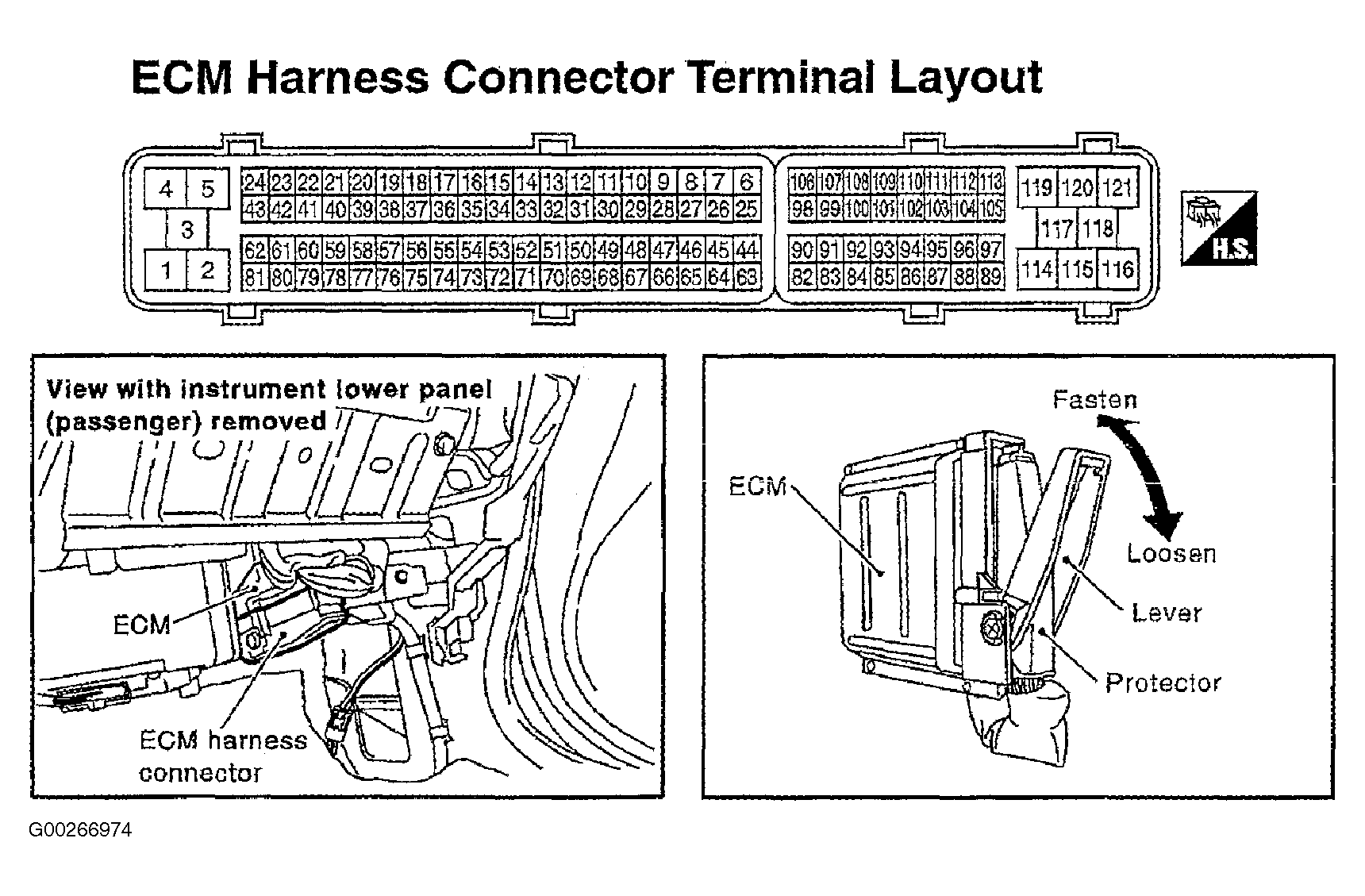

Fig 9: Locating Engine Control Module & Connector Terminal Layout (350Z)

Courtesy of NISSAN MOTOR CO., U.S.A.
