Disassembly and Assembly: Components

WARNING: This page is about a different car, the 2005 Nissan Titan and 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

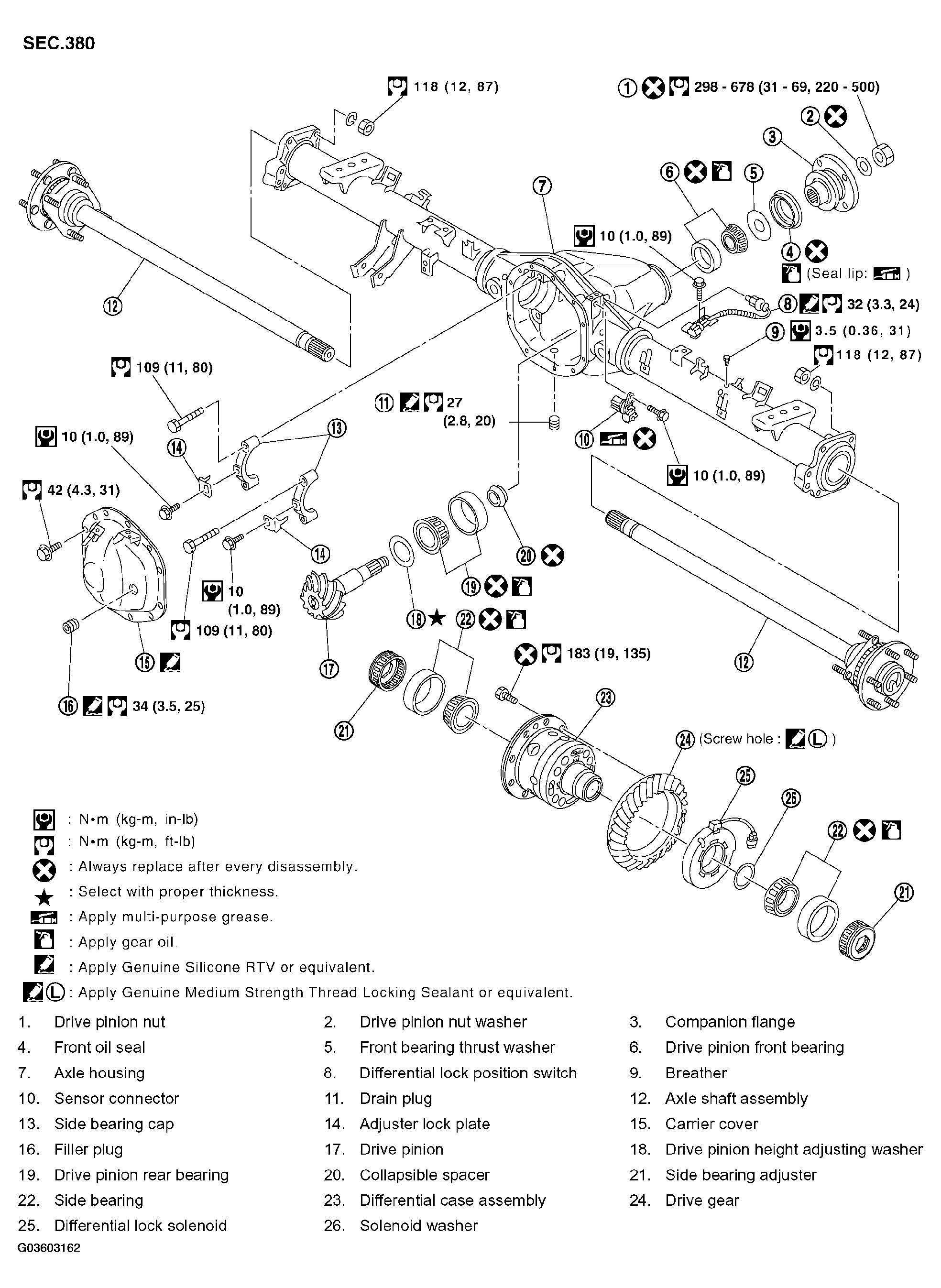

Fig 1: Exploded View Of Rear Final Drive Assembly With Torque Specifications
G03603162Courtesy of NISSAN MOTOR CO., U.S.A.
