Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press fit a wheel bearing into wheel hub with a drift (SST).

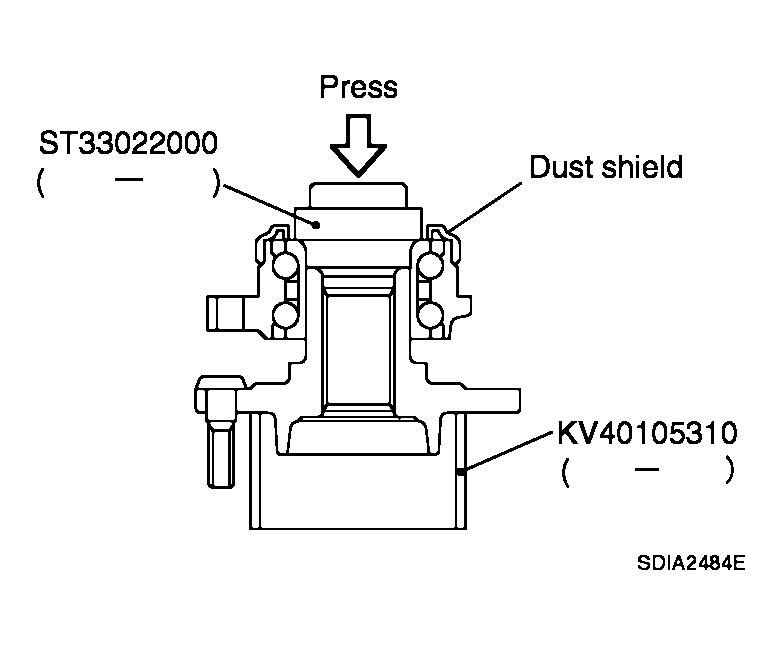

    Fig 1: Pressing Wheel Bearing Into Wheel Hub
    G04121728Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not reuse wheel bearing.
    • Press fit a drift (SST) while holding it against wheel bearing inner side inner race.
    • When installing wheel bearing, do not deformation dust shield.
    NOTE: Final press load guideline 49,033 N (5,000 kg, 11,000lb)
  2. Attach spring scale in the position shown in illustration and pull at a rate of 10 +/- 2 RPM to measure rotating torque.

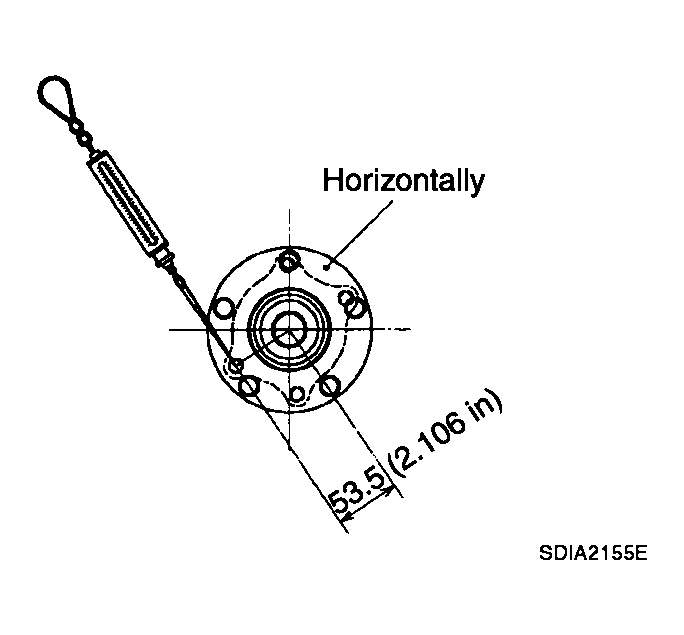

    Fig 2: Measuring Rotating Torque
    G04121729Courtesy of NISSAN MOTOR CO., U.S.A.

    Standard value

    Rotating torque: Less than 2.296 N.m (0.23 kg-m, 20 in-lb)

    Spring scale reading: Less than 42.9 N (4.4 kg, 9.7 lb)

  3. Install splash guard and wheel hub and bearing assembly to steering knuckle.
