Relationship Between MIL, DTC, 1st Trip DTC And Driving Patterns For "Misfire" < Exhaust Quality Deterioration >, "Fuel Injection System"

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

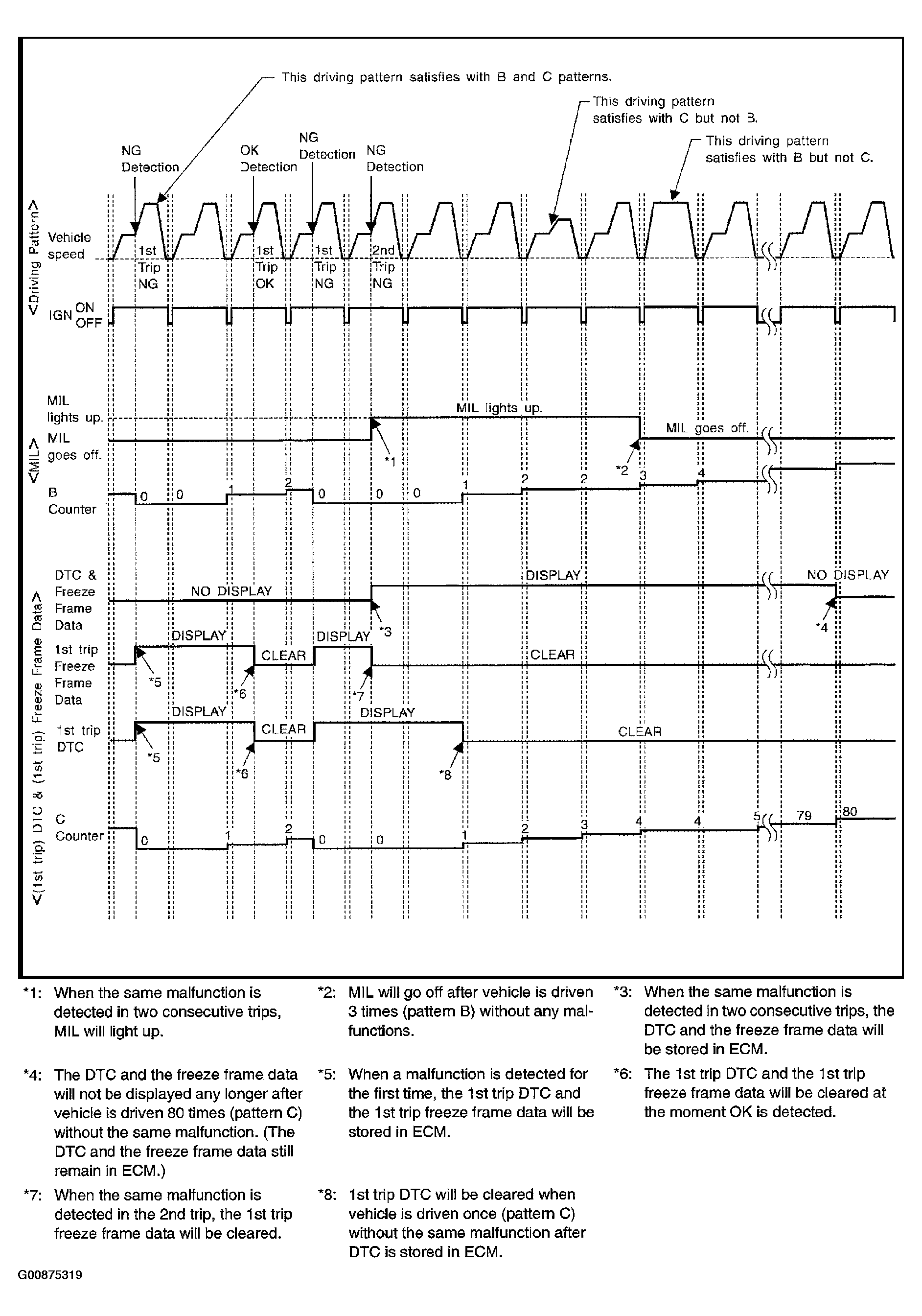

Fig 1: Relationship Between MIL, DTC, 1st Trip DTC And Driving Patterns For "Misfire" < Exhaust Quality Deterioration >, "Fuel Injection System"
G00875319Courtesy of NISSAN MOTOR CO., U.S.A.
