SRT Set Timing

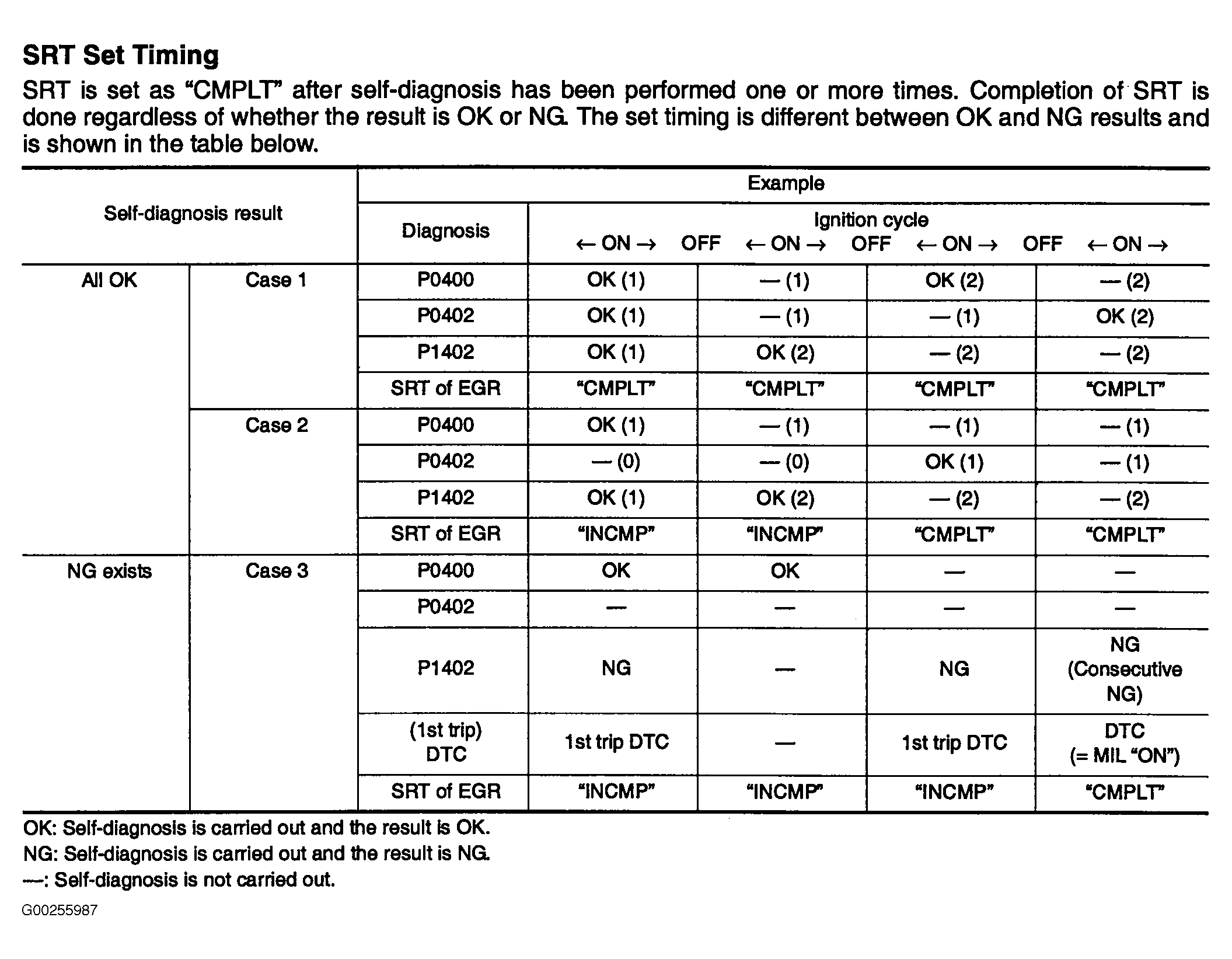

For SRT set timing specifications, see Fig 1 .

Fig 1: Identifying SRT Set Timing

G00255987

Courtesy of NISSAN MOTOR CO., U.S.A.
