Diagnostic Procedure 1 (Lighting Switch Input Signal Tests)

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic procedure 1 (lighting switch input signal tests), see Fig 1.

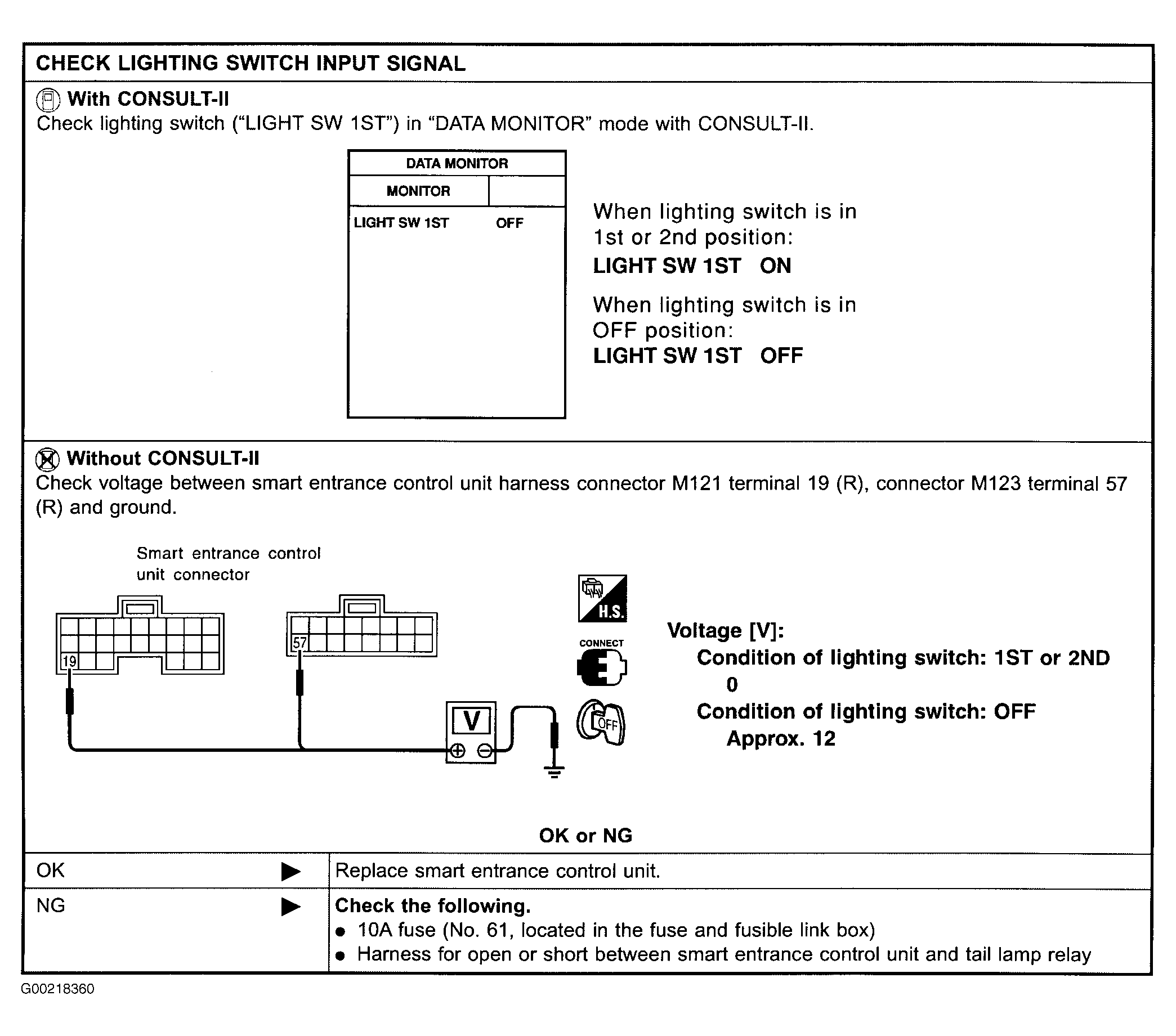

Fig 1: Identifying Diagnostic Procedure 1 (Lighting Switch Input Signal Tests)

Courtesy of NISSAN MOTOR CO., U.S.A.
