CONSULT-II Reference Value In Data Monitor Mode

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Specification data are reference values. See Fig 1 .

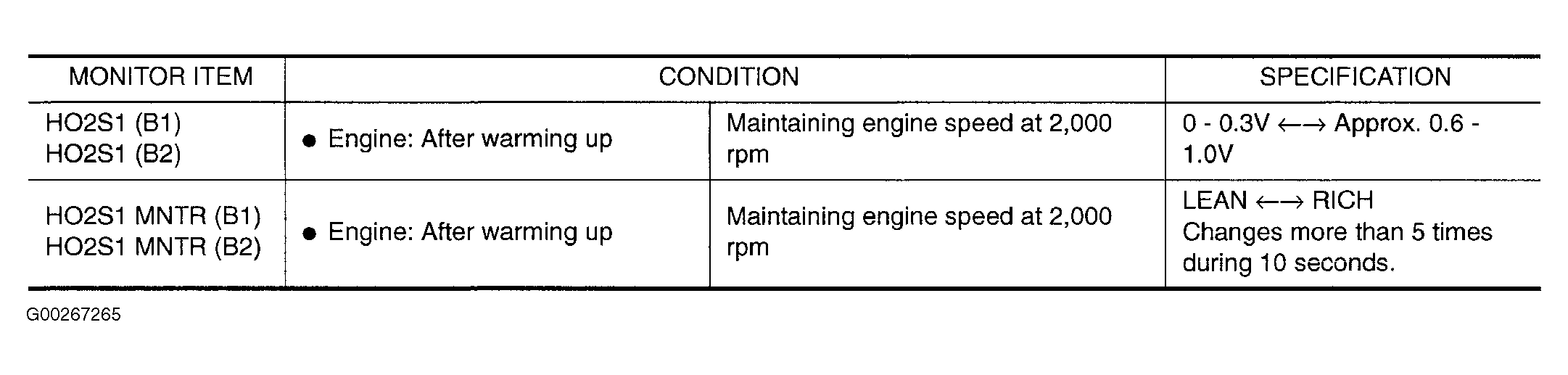

Fig 1: DTCs P0132, P0133, P0152 Or P0153 Data Monitor Mode Reference Values
G00267265Courtesy of NISSAN MOTOR CO., U.S.A.
