CONSULT-II Reference Value In Data Monitor Mode

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Specification data are reference values. See Fig 1 .

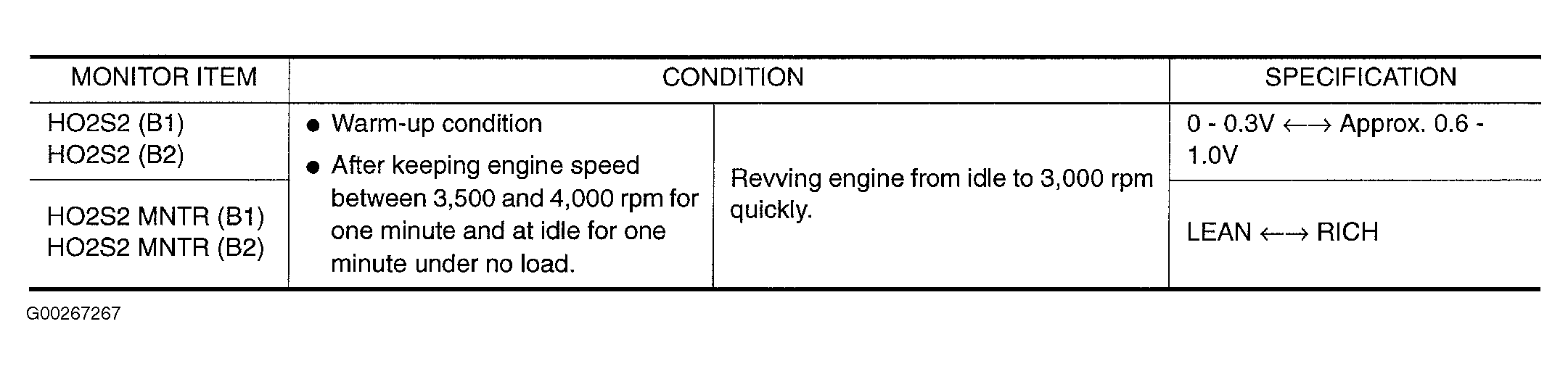

Fig 1: DTC P0138, P0139, P0158 & P0159 Data Monitor Mode Reference Values
G00267267Courtesy of NISSAN MOTOR CO., U.S.A.
