Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inner sockets.
  2. Install the large-diameter side of the boots to the gear housing assembly.
  3. Install the small-diameter side of the boots to the groove of the inner sockets.
    Fig 1: Identifying Boot Clamps
    G07155596
  4. Install the boot clamps to the boots, as shown.
    CAUTION: Do not reuse the large boot clamps.

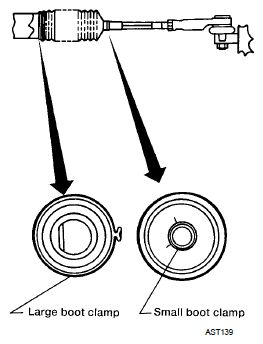

    Fig 2: Identifying Large And Small Boot Clamp
    G07155597
  5. Crimp the large boot clamps, using Tool.

    Tool number : KV40107300 (-)

    Fig 3: Crimping Large Boot Clamps Using Tool
    G07155598
  6. Install the cylinder tubes to the gear housing assembly.
  7. Install the lock nuts and outer sockets to the inner sockets.
  8. Thread the outer sockets onto the inner sockets to the specified length (L), then tighten the lock nuts to the specified torque. Refer to "DISASSEMBLY AND ASSEMBLY ". Reconfirm that the tie-rod length (L) is within specification.

    Maximum inner socket length (L)  : "STEERING GEAR OUTER AND INNER SOCKET "

    Fig 4: Identifying Maximum Inner Socket Length
    G07155599
