Inspection 5: Steering Angle Sensor And Circuit Between Steering Angle Sensor And VDC/TCS/Abs Control Unit

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Procedure

CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.

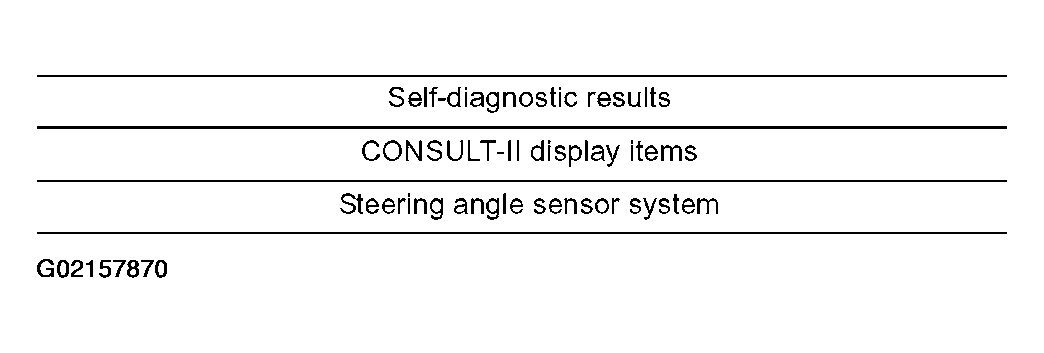

Fig 1: Self-Diagnostic Results List
Courtesy of NISSAN MOTOR CO., U.S.A.

Also perform Inspection 1 for the CAN communication system. Does "STEERING ANGLE SENSOR" appear on self-diagnosis display?
1. YES : GO TO 2.
2. NO : INSPECTION END

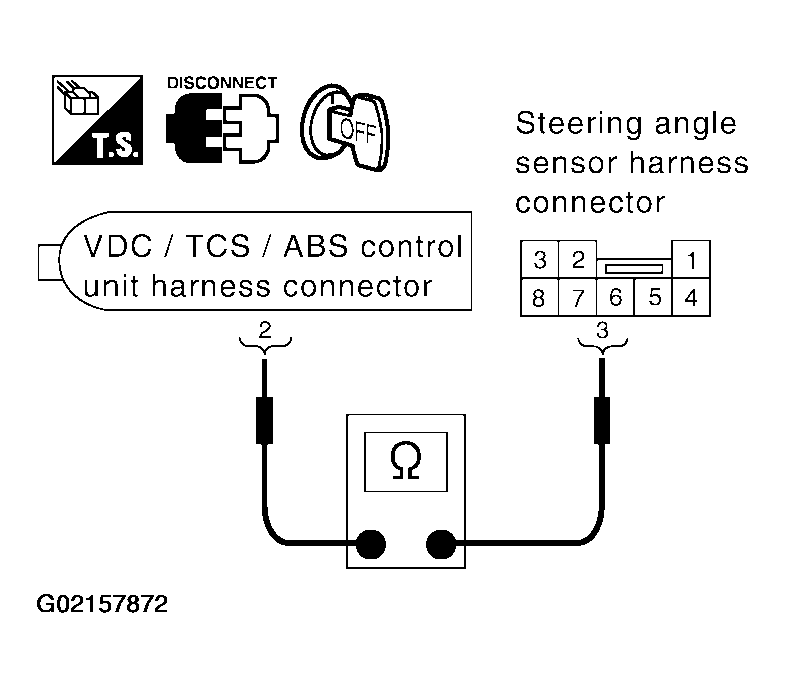

Fig 2: Checking Steering Angle Sensor And Circuit Between Steering Angle Sensor And VDC/TCS/ABS Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK STEERING ANGLE SENSOR CIRCUIT
1. Turn ignition switch OFF and disconnect VDC/TCS/ABS control unit connector and steering angle sensor connector.
2. Check continuity between VDC/TCS/ABS control unit harness connector E118 and steering angle sensor harness connector M22.

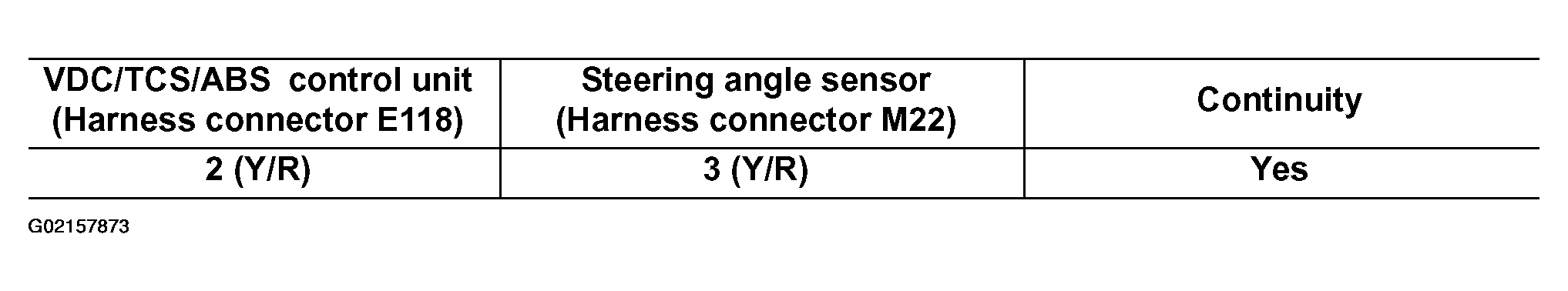

  Fig 3: Checking Steering Angle Sensor Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.

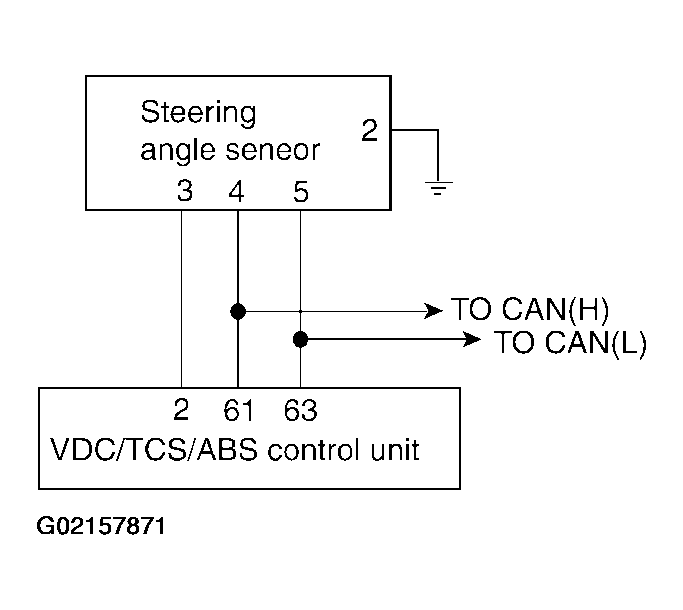

  Fig 4: Steering Angle Sensor Circuit Self-Diagnosis Result Lists
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 3.
2. NG : Open or short in harness. Repair or replace the suspect harness.
PERFORM DATA MONITOR
1. Connect VDC/TCS/ABS control unit connector and steering angle sensor connector.
2. Perform "DATA MONITOR" for "STR ANGLE SIG". Check if results are normal.

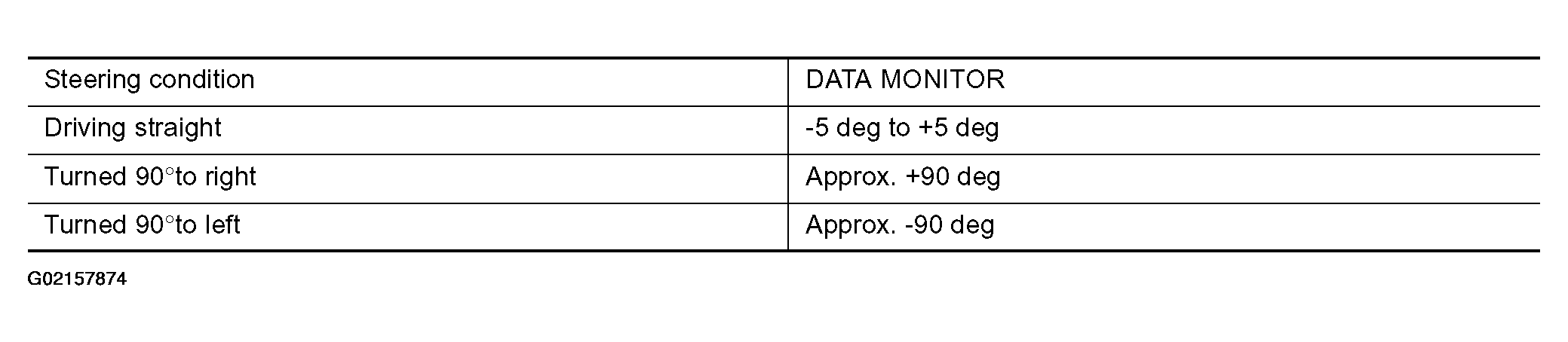

  Fig 5: System Condition And Data Monitor Condition Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Perform VDC/TCS/ABS control unit self-diagnosis again.
2. NG : Replace steering angle sensor and adjust neutral position of steering angle sensor. Refer to ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION .
