Terminals and Reference Value for Unified Meter and A/C Amp.

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

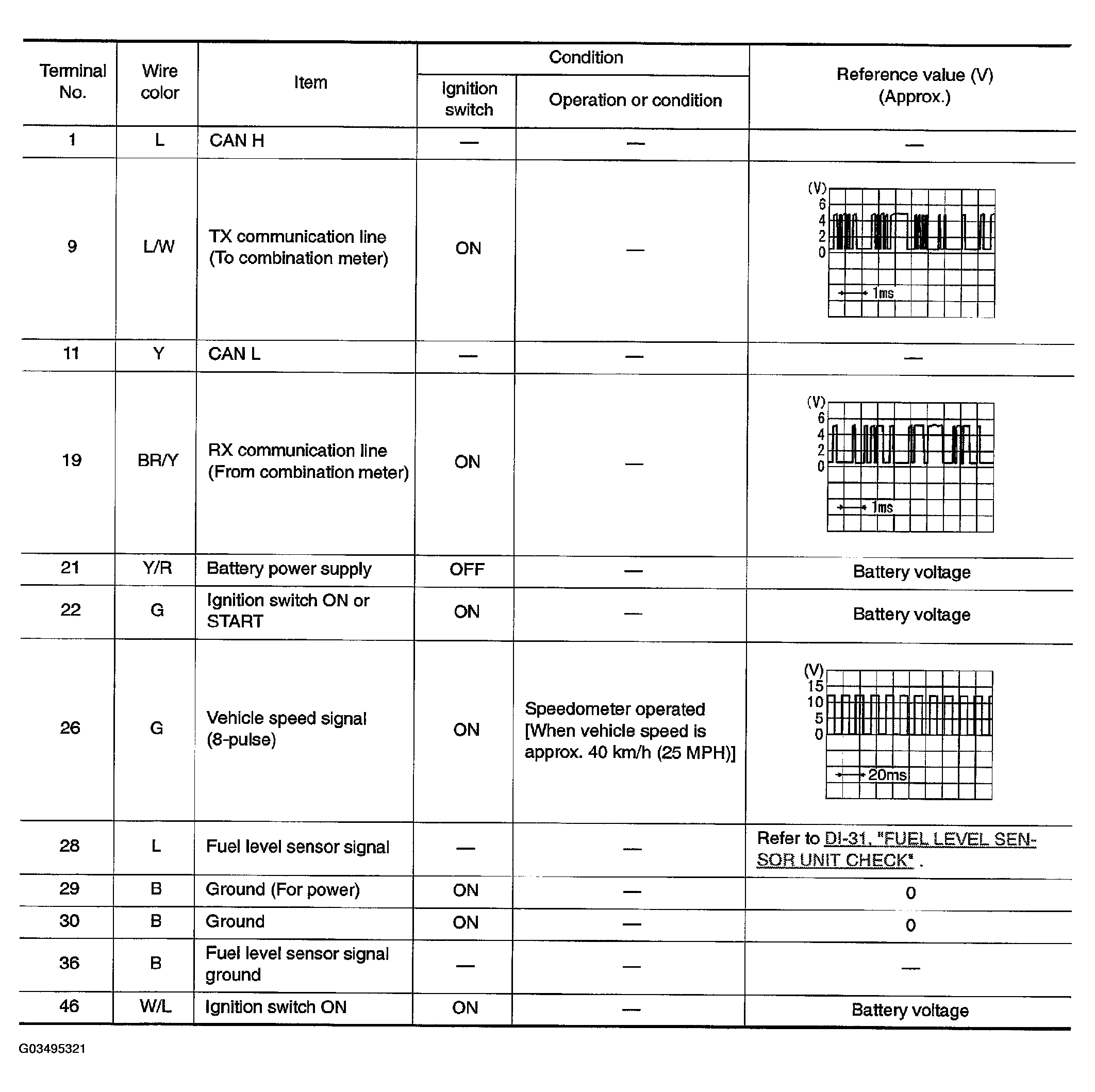

Fig 1: Identifying Terminals And Reference Value For Unified Meter And A/C Amp
G03495321Courtesy of NISSAN MOTOR CO., U.S.A.
